Main Functions Si06-305
16 Function and Control
1.2 Flap Control
Wide-angle Flap The large flaps send a large volume of air all over the room. The flap provides an optimum
control in cooling, heating and dry mode.
Louvres The louvres, made of elastic synthetic resin, provide a wide range of airflow that guarantees a
comfortable air distribution.
Auto-swing The following table explains the auto-swing process for heating and cooling:

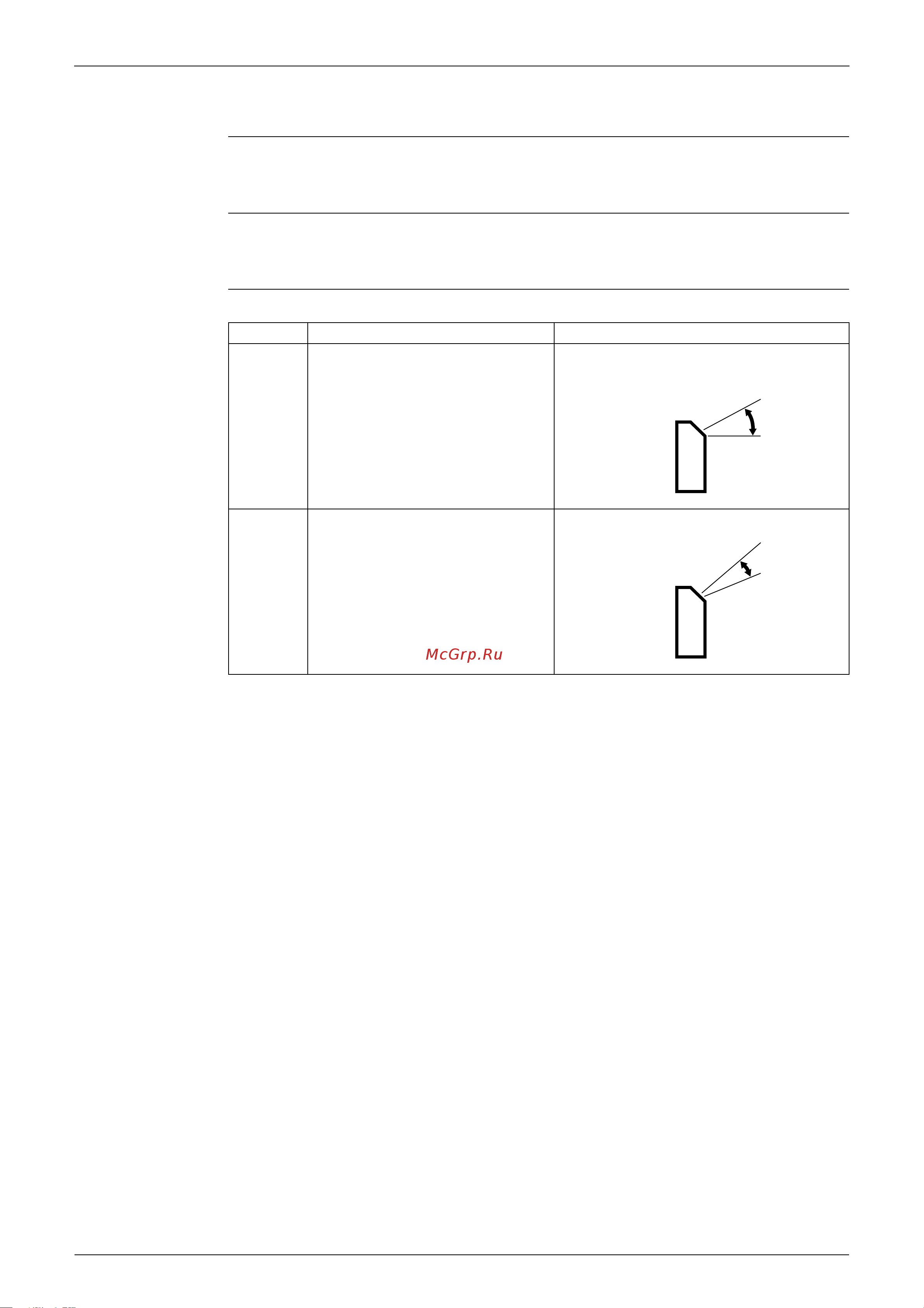

Item Description Drawing
heating
The flap swings up and down as shown
in the drawing alongside.
cooling /
dry
The flap swings up and down as shown
in the drawing alongside.
(R1194)
(R1195)
