Si06-305 Indoor Unit
Removal Procedure 125
1.6 Removal of the Fan Rotor / Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work
Step Procedure Points

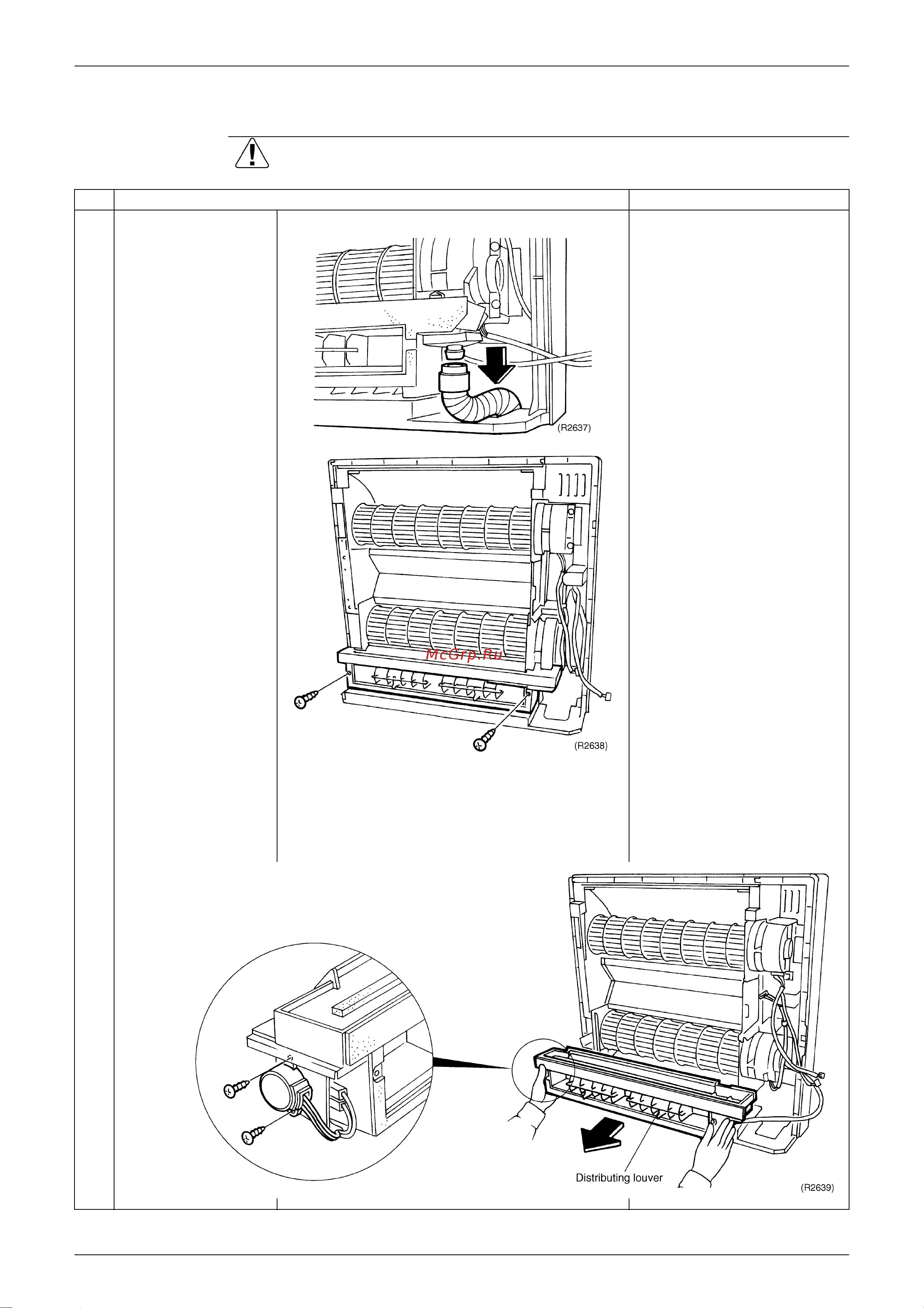

1
For removal of the
drain pan, disconnect
the drain hose, then
dismount the two
screws located at left
and right sides.
Be careful not to wet the
floor with drain water.
Disengage harness for drain
pan from right side hook.
2
Remove the drain pan.
This swing motor is for down
flow shutter.
3
To remove the swing
motor on discharge
port of the drain pan,
dismount the two fixing
screws.
