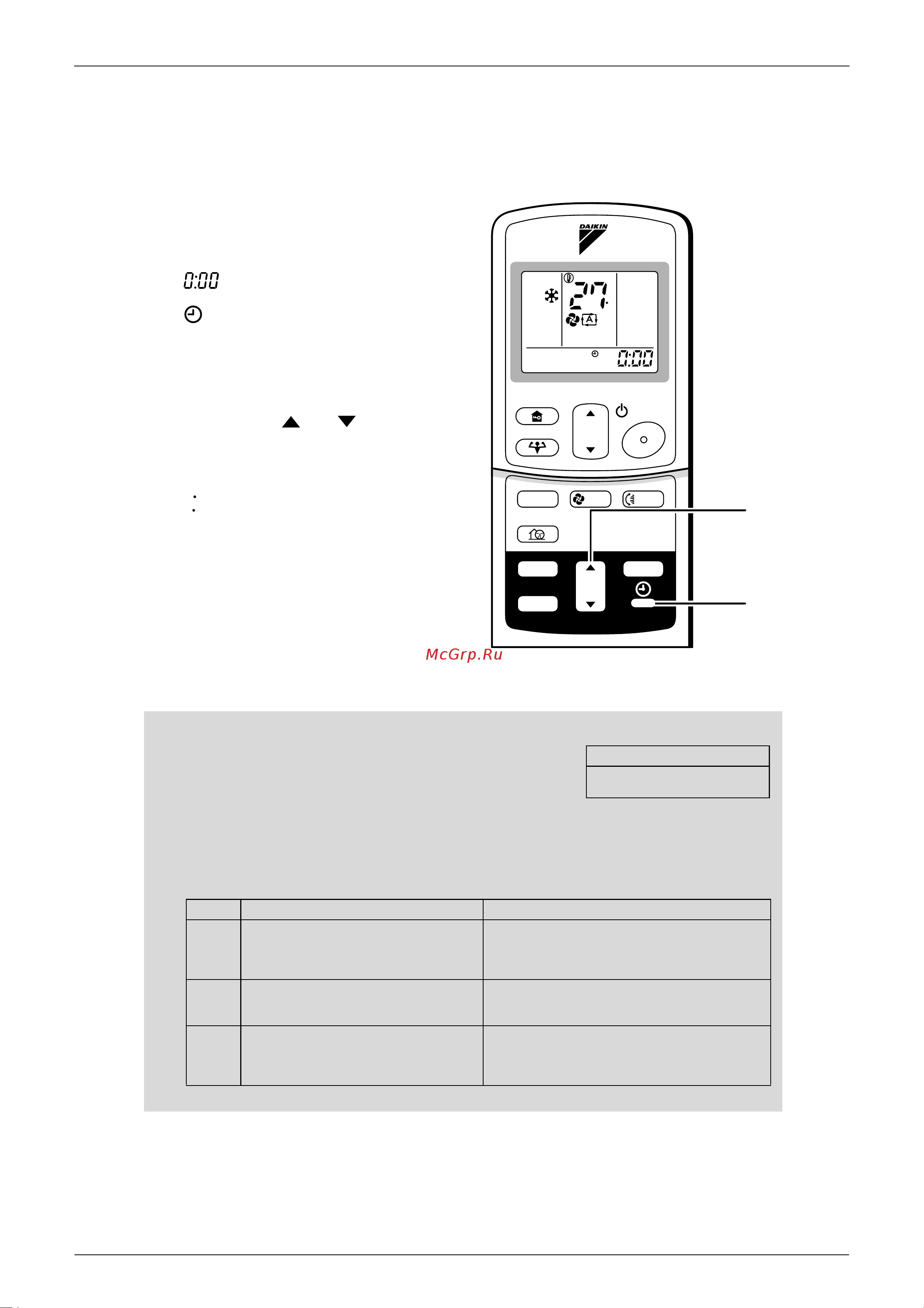

Instruction Si06-305
52 System Configuration
9
■
To set the clock
1. Press “CLOCK button”.
is displayed.
blinks.
2. Press “TIMER setting button”
to set the clock to the present
time.
Holding down “” or “” button rapidly
increases or decreases the time display.
3. Press “CLOCK button”.
blinks.
■
Turn the breaker ON
• Turning ON the breaker opens the flap,
then closes it again. (This is a normal pro-
cedure.)
NOTE
■
■■
■
Tips for saving energy
• Be
careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy.
•
Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
•
Clogged air filters cause inefficient operation and waste energy. Clean them
once in about every two weeks.
■
■■
■
Please note
•
The air conditioner always consumes 15-35 watts of electricity even while it is not operating.
•
If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
•
Use the air conditioner in the following conditions.
•
Operation outside this humidity or temperature range may cause a safety device to disable the system.
C
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FAN
SILENT
ON
CANCEL
OFF
SWING
1.3
2
Recommended temperature setting
For cooling:26
°
C – 28
°
°°
°
C
For heating:20
°
C – 24
°
C
Mode Operating conditions If operation is continued out of this range
COOL
Outdoor temperature:
〈
3/4MK(X)
〉
–10 to 46 °C
〈
RK(X)
〉
–10 to 46 °C
Indoor temperature: 18 to 32 °C
Indoor humidity: 80% max.
•
A safety device may work to stop the operation.
(In multi system, it may work to stop the operation of the out-
door unit only.)
•
Condensation may occur on the indoor unit and drip.
HEAT
Outdoor temperature:
〈
3/4MX
〉
–15 to 16 °C
〈
RX
〉
–15 to 21 °C
Indoor temperature: 10 to 30 °C
•
A safety device may work to stop the operation.
DRY
Outdoor temperature:
〈
3/4MK(X)
〉
–10 to 46 °C
〈
RK(X)
〉
–10 to 46 °C
Indoor temperature: 18 to 32 °C
Indoor humidity: 80% max.
•
A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
