Daikin RS60BVMB [132/170] Removal of the heat exchanger
![Daikin RS60BVMB [132/170] Removal of the heat exchanger](/views2/1780105/page132/bg84.png)
Si06-305 Indoor Unit
Removal Procedure 123

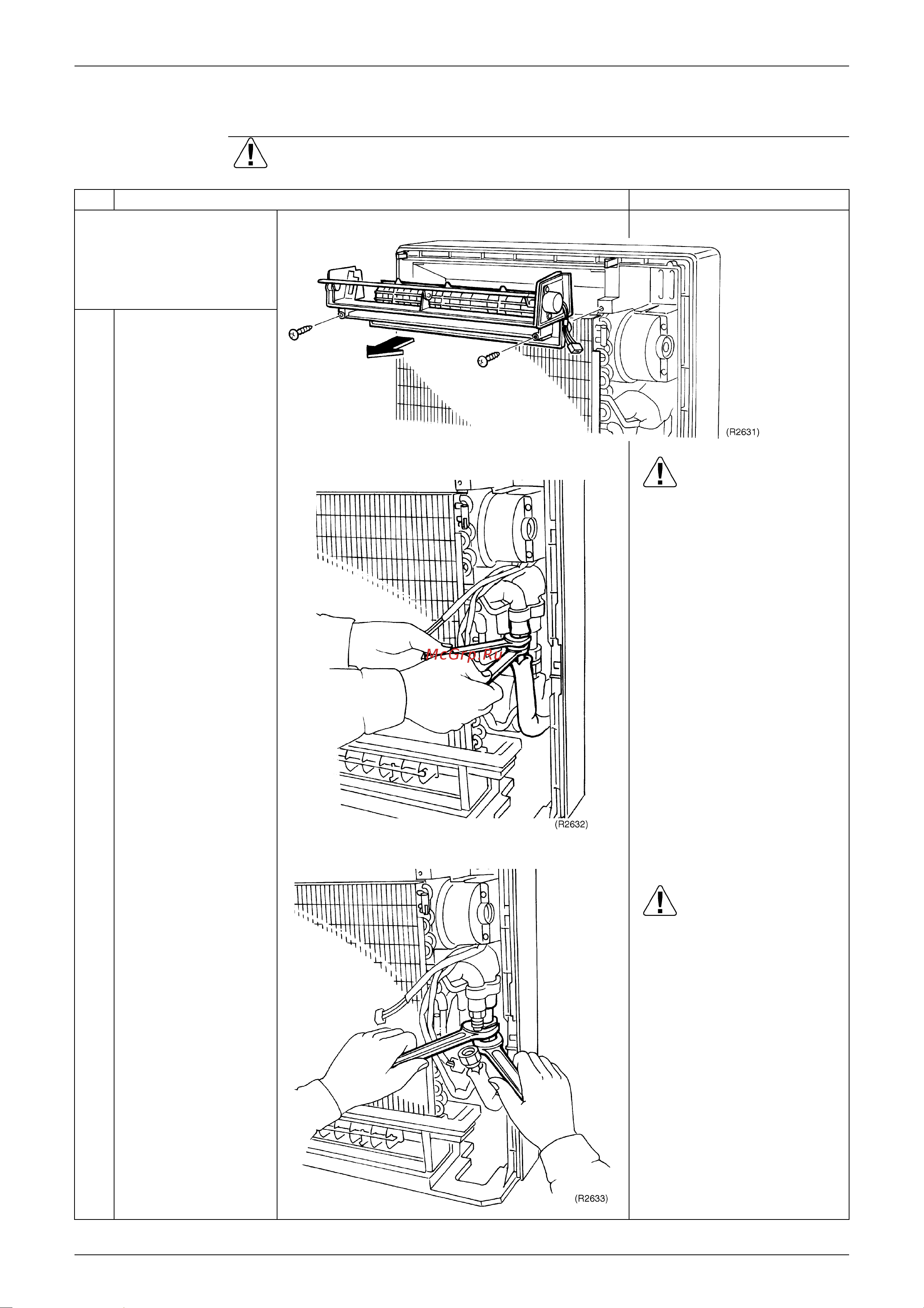

1.5 Removal of the Heat Exchanger
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work
Step Procedure Points
Conduct pump-down
operation and check that
gas has been purged
completely before starting
service work.
Mounting screw M4 × 16
1
Dismount the two
screws to remove the
top discharge grille.
2
Remove the heat
exchanger.
Warning!
If refrigerant gas leaks during
service work, ventilate work
area.
(Toxic gas may be generated
when refrigerant gas contacts
with flame.)
3
Disconnect the flared
joint of liquid pipe using
two wrenches.
14/17 double ended wrench
4
Disconnect the flared
joint of gas pipe using
two wrenches.
17/23 double ended wrench
Caution!
Do not contaminate any gas
(including air) other than the
specified refrigerant (R410A)
(Contaminating of air or other
gas causes abnormal
temperature rise in
refrigerating cycle, and this
results in pipe breakage or
personal injuries.)
After pipes are
disconnected, close all pipe
openings with caps to
prevent dust and moisture
from entering pipes.
