Outdoor Unit Si06-305
132 Removal Procedure
5

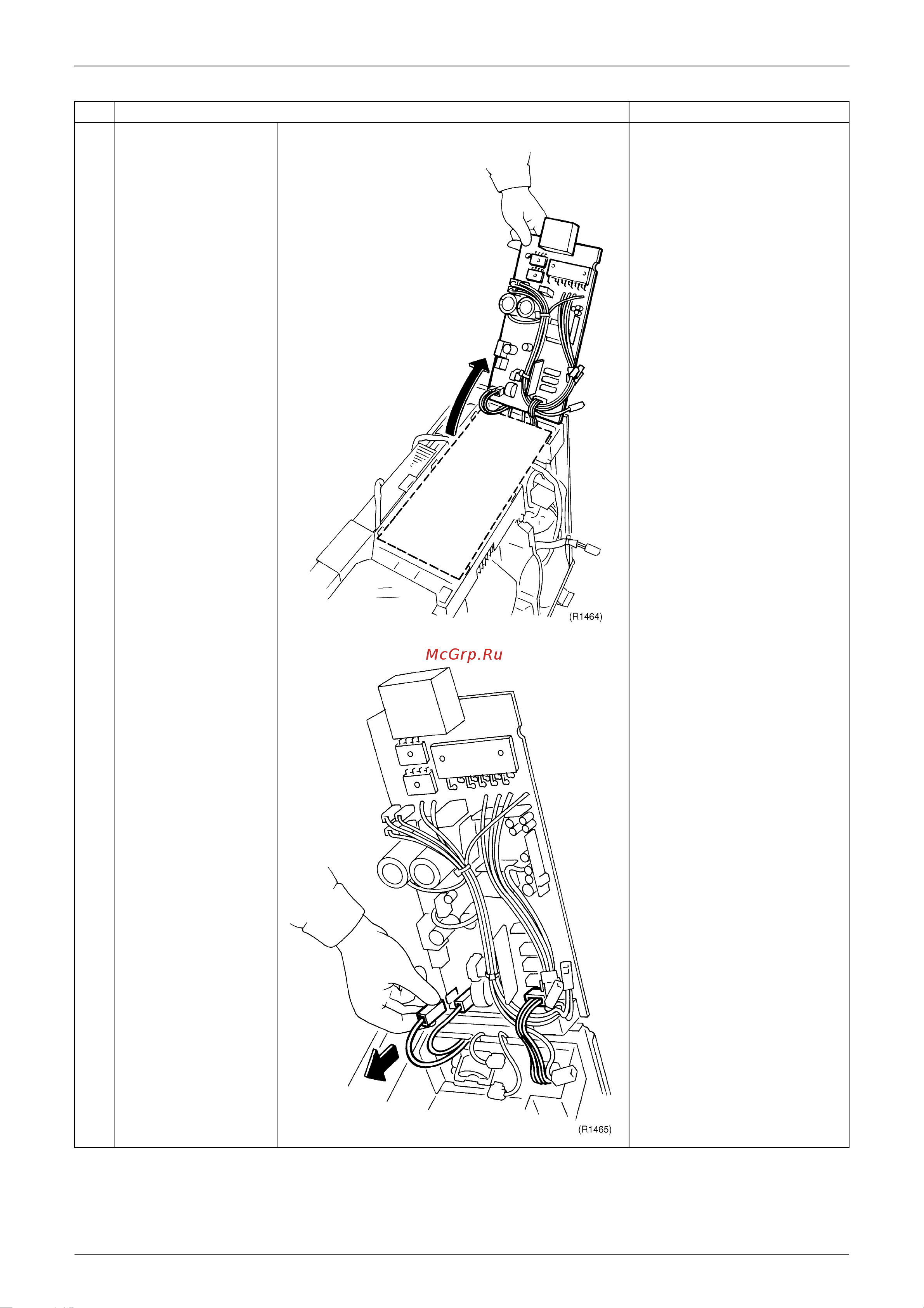

Undo the eight hooks
and the PCB can be
disengaged.
The PCB has eight hooks.
6
Disconnect the three
wires from the PCB.
Step Procedure Points
