Daikin FHC25JEVLK [15/32] Electrical wiring connection
![Daikin FHC50JEVLK [15/32] Electrical wiring connection](/views2/1785168/page15/bgf.png)
1-13
English
COMP
L
N
COMP
L1
N1
L
N
Interconnection Cable
Indoor Unit
Terminal Block
Outdoor Unit
Terminal Block
Power Supply
Cable

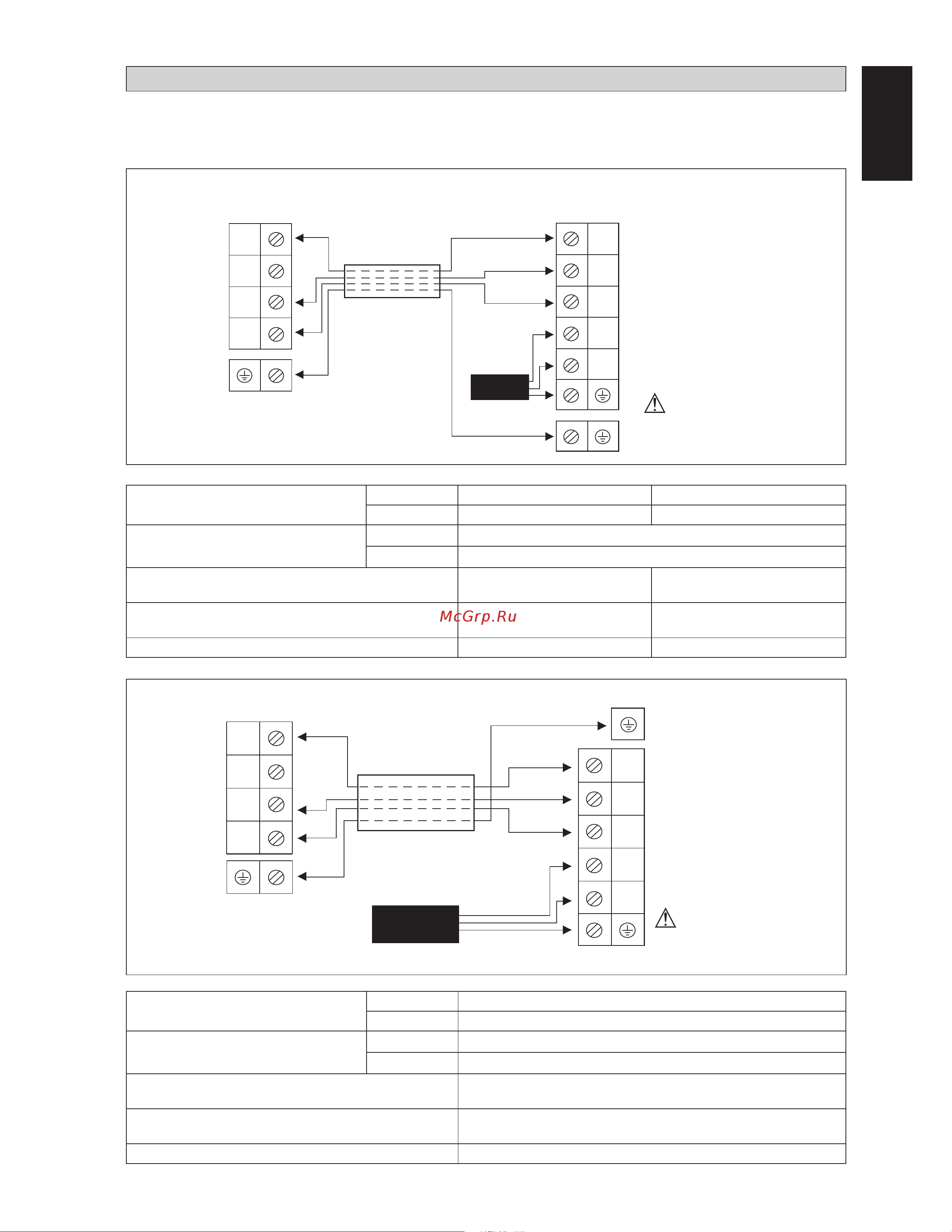

ELECTRICAL WIRING CONNECTION
IMPORTANT :
* These values are for information only. They should be checked and selected to comply with local and/or
national codes and regulations. They are also subject to the type of installation and size of conductors.
** The appropriate voltage range should be checked with data label on the unit.
FHC20JEVLK - RD20JEVLK
FHC25JEVLK - RD25JEVLK
Model Indoor FHC30JEVLK
Outdoor RD30JEVLK
Voltage range** Indoor
220V/1Ph/60Hz +
!
Outdoor
220V/1Ph/60Hz +
!
Power supply cable size* mm
2
Number of conductors
4.0
3
Interconnection cable size* mm
2
Number of conductors
2.5
4
Recommended time delay fuse* A 30
There must be an all pole
disconnection in the supply
mains with a contact separation
of at least 3mm.
FHC30JEVLK - RD30JEVLK
COMP
L
N
COMP
L
N
L
N
Model Indoor FHC20JEVLK FHC25JEVLK
Outdoor RD20JEVLK RD25JEVLK
Voltage range** Indoor
220V/1Ph/60Hz +
!
Outdoor
220V/1Ph/60Hz +
!
Power supply cable size* mm
2
Number of conductors
2.5
3
2.5
3
Interconnection cable size* mm
2
Number of conductors
1.0
4
1.0
4
Recommended time delay fuse* A 20 25
There must be an all pole
disconnection in the supply
mains with a contact separation
of at least 3mm.
Interconnection Cable
Indoor Unit
Terminal Block
Outdoor Unit
Terminal Block
Power Supply Cable
EN CKE-0911(0)DK(saso).indd 13 12/6/11 3:05:10 PM
