Daikin FHC25JEVLK [24/32] Indicator lights

1-22

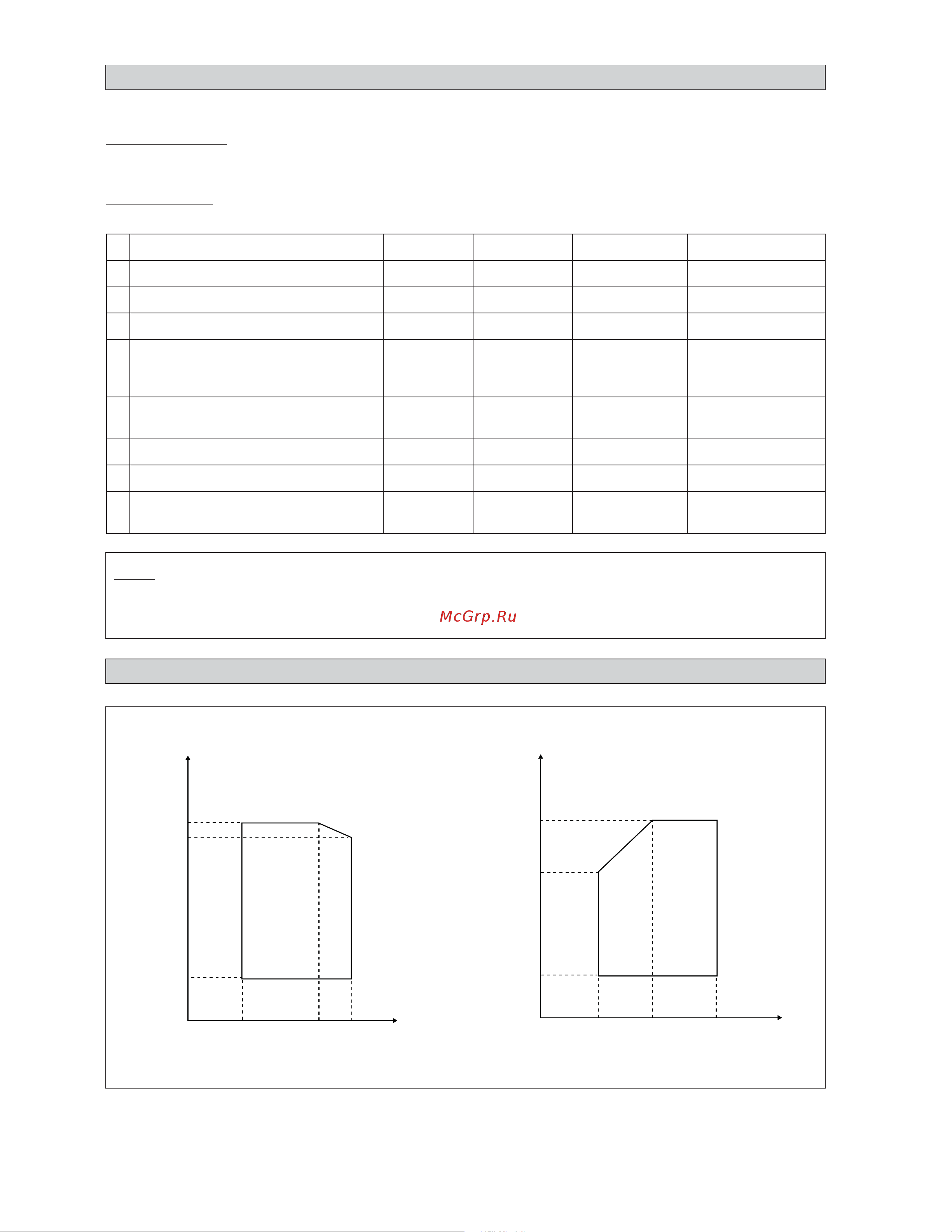

INDICATOR LIGHTS

FAULT DIAGNOSIS

Wireless Controller

When there is infrared remote control operating signal, the signal receiver on indoor unit will make a <beep> for signal

acceptance conÀ rmation.

Wired Controller

If there is any abnormal condition detected, wired controller will blink the error code.

NOTE

Power LED = Cool/Dry/Fan LED, turns on in these modes

The unit will not detect sensor missing when the compressor is ON

Call your dealer immediately when this error happen

OPERATING RANGE

Event Power LED Timer LED Other LEDs Error Code

1. Room Sensor Open or Short Blink 1 time - Blink Fan Blink E1

2. Indoor Coil Sensor Open Blink 2 times - Blink Sleep Blink E2

3. Outdoor Coil Sensor Open Blink 3 times - Blink Dry Blink E3

4. Compressor Overload /

Indoor Coil Sensor Short /

Outdoor Coil Sensor Short

- Blink 1 time Blink Cool Blink E4

5. Low Refrigerant Charge/Gas Leak/Outdoor

Abnormal

- Blink 3 times Blink Cool & Dry Blink E5

6. Water Pump Fault - Blink 2 times Blink Cool & Fan Blink E6

7. Outdoor Coil Sensor Exist (MS model) - Blink 5 times Blink Cool & Heat Blink E7

8. Hardware Error (tact switch pin short) - Blink 6 times Blink Heat, Cool,

follow by Fan, Dry

Blink E8

Outdoor

DB (°C)

14 19 23

Indoor WB (°C)

Outdoor

WB (°C)

Indoor DB (°C)

-9

20 27

DB = Dry Bulb WB = Wet Bulb

COOLING HEATING
