3 | About the box
Installer reference guide
16
ERGA04~08DAV3(A) + EHVH04+08SU18+23DA6V7
Daikin Altherma 3 R F
4P618956-1 – 2020.03
2
1
1

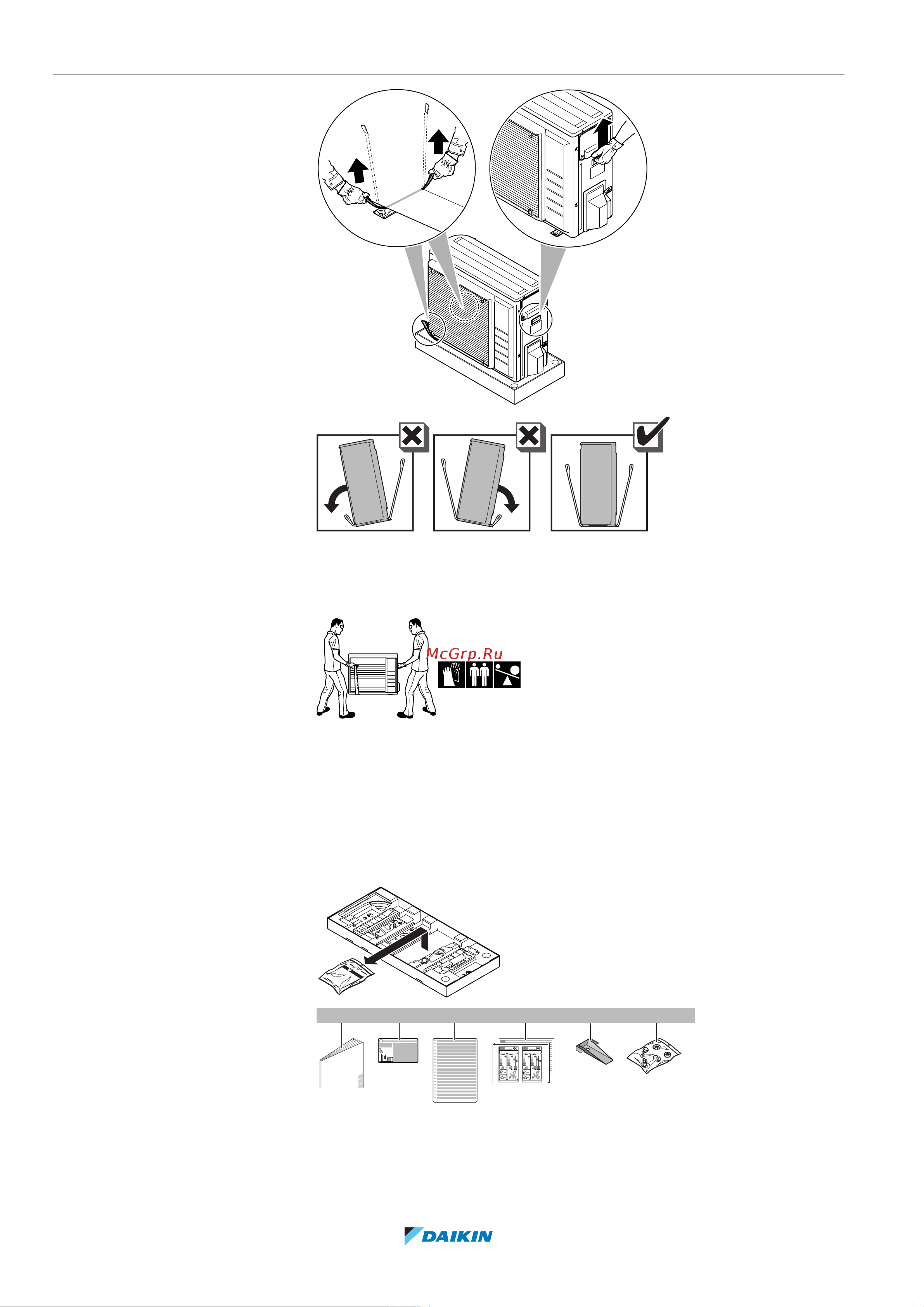

2 While handling the unit:
▪ Keep both sides of the sling level.
▪ Keep your back straight.
3 After mounting the unit, remove the sling from the unit by pulling 1 side of the
sling.
3.2.3 To remove the accessories from the outdoor unit
1 Lift the outdoor unit. See "3.2.2To handle the outdoor unit"[415].
2 Remove the accessories at the bottom of the package.
ENERG
IJAY
IAIE
ENERG
IJAY
IAIE
1×1× 1× 1× 2× 1×
da b c e f
a Outdoor unit installation manual
b Fluorinated greenhouse gases label
c Multilingual fluorinated greenhouse gases label
d Energy label
e Unit mounting plate
f Bolts, nuts, washers, spring washers and wire clamp
