7 | Installation

Installer reference guide

ERGA04~08DAV3(A) + EHVH04+08SU18+23DA6V7

Daikin Altherma 3 R F

4P618956-1 – 2020.03

INFORMATION

If you install the U-beams in combination with the low sound cover (EKLN08A1),

different installation instructions apply for the U-beams. See the installation manual

of the low sound cover.

a Low sound cover

b Bottom parts of the low sound cover

c U-beams

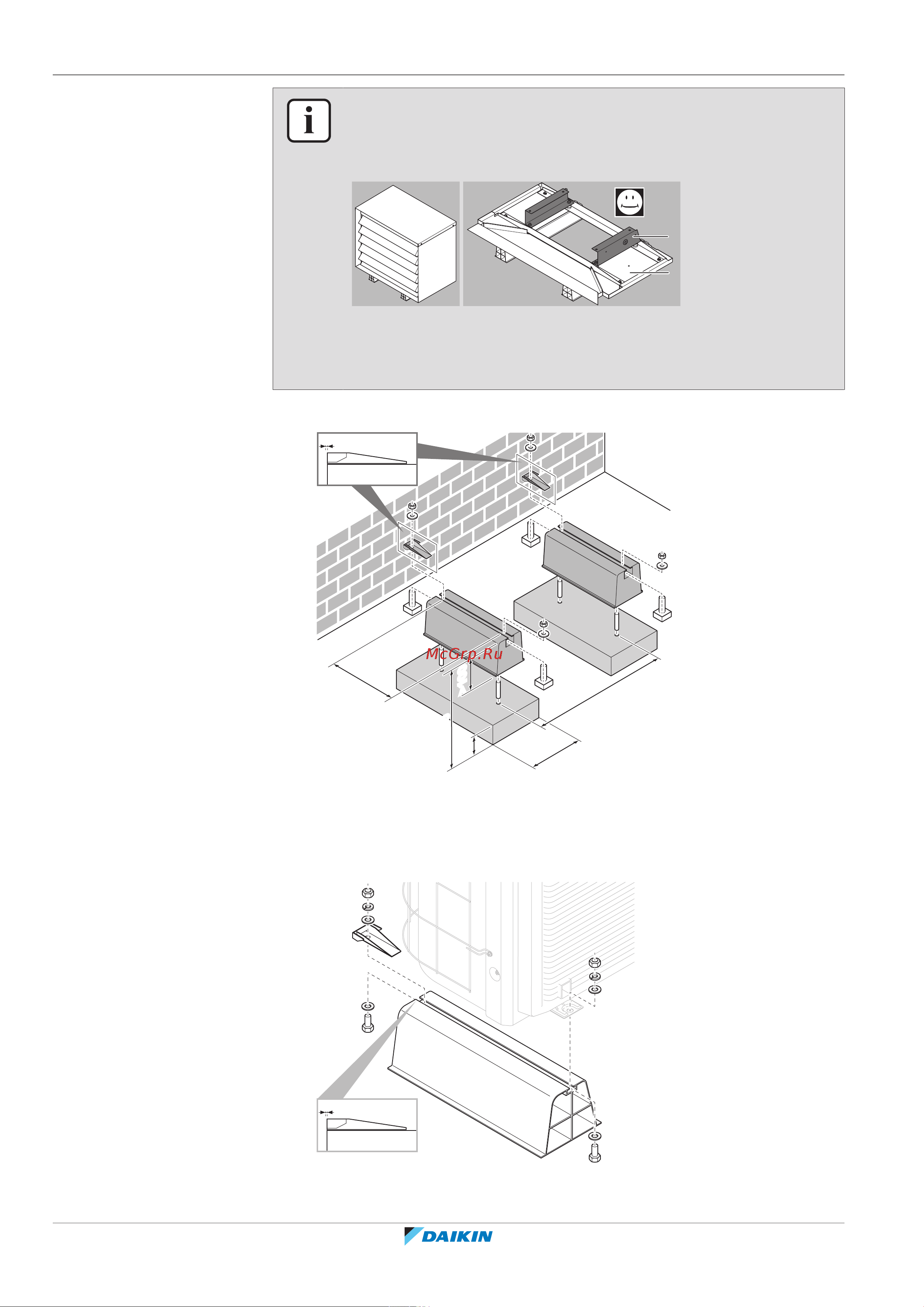

Option 1: On mounting feet "flexi-foot with strut"

(mm)

0 mm

<150

>300

300

600

>100

a Maximum snowfall height

Option 2: On plastic mounting feet

In this case, you can use the bolts, nuts, washers and spring washers delivered with

the unit as accessories.

0 mm
