4 | About the units and options
Installer reference guide
20
ERGA04~08DAV3(A) + EHVH04+08SU18+23DA6V7
Daikin Altherma 3 R F
4P618956-1 – 2020.03
4 About the units and options
4.1 Overview: About the units and options
This chapter contains information about:
▪ Identifying the outdoor unit
▪ Identifying the indoor unit
▪ Combining the outdoor unit with options
▪ Combining the indoor unit with options
4.2 Identification
NOTICE
When installing or servicing several units at the same time, make sure NOT to switch
the service panels between different models.

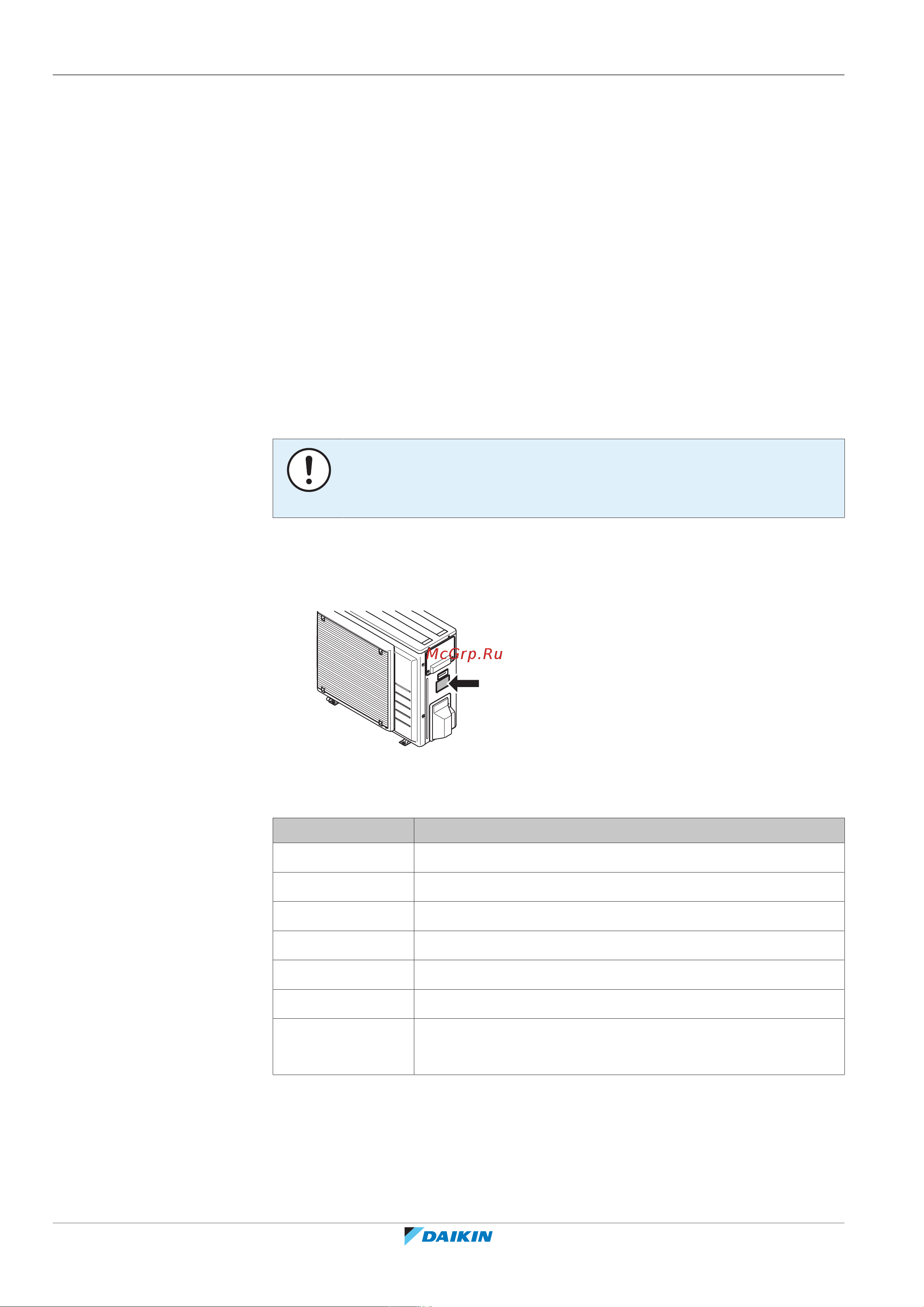

4.2.1 Identification label: Outdoor unit
Location
Model identification
Example: ERGA06DAV3 A
Code Explanation
ER European split outdoor pair heat pump
G Medium water temperature – ambient zone: −10~−20°C
A Refrigerant R32
06 Capacity class
DA Model series
V3 Power supply
A A=Austrian model
[—]=Non-Austrian model
