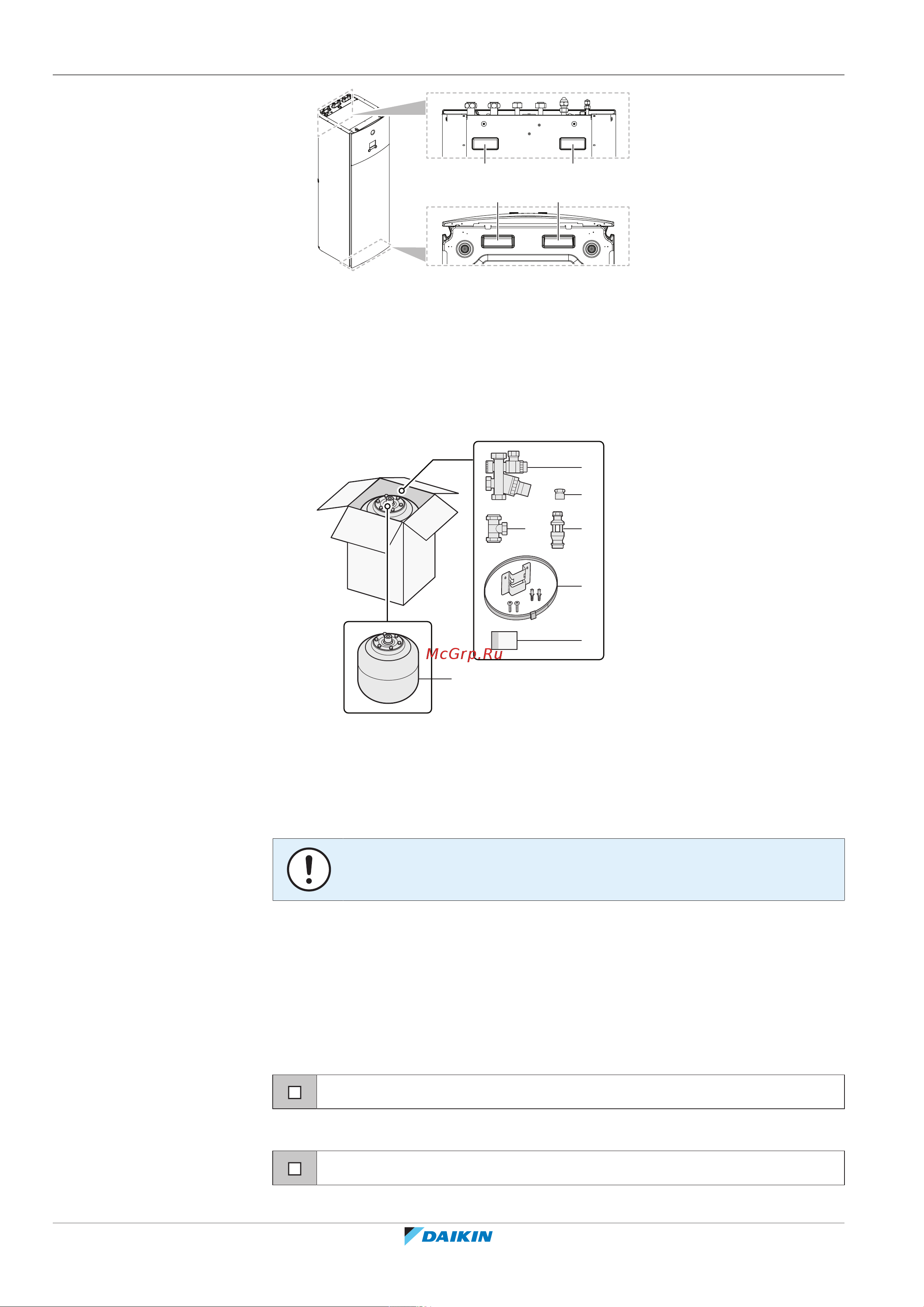

3 | About the box
Installer reference guide
18
ERGA04~08DAV3(A) + EHVH04+08SU18+23DA6V7
Daikin Altherma 3 R F
4P618956-1 – 2020.03
b
a a
b
a Handles at the back of the unit
b Handles at the bottom of the unit. Carefully tilt the unit to the back so that the handles become visible.
3.4 Domestic hot water tank kit
3.4.1 To remove the accessories from the domestic hot water tank kit
d
b
a
c
e
g
f
a Pressure reducing valve/pressure relief valve combination. Water inlet and water outlet 22mm connection,
discharge piping connection 15mm
b Adaptor 22mm×3/4" Female BSP
c T-piece 22mm×22mm×22mm
d Tundish 15mm inlet, 22mm outlet
e Wall mounting set for expansion vessel
f Instruction sheet
g Expansion vessel of 18l – 3/4" Male BSP
NOTICE
All piping MUST be installed according to section G3 of the Building Regulations.
3.5 Checklist for the required DHW accessories
For installation compliant with section G3 of the Building Regulations, you must
verify that the following accessories are present.
Delivered with indoor unit:
Tundish 15mm inlet, 22mm outlet
Delivered with domestic hot water tank kit:
Pressure reducing valve/pressure relief valve combination
