CL-10

CSC (CONCENTRIC SLAVE CYLINDER)

PFP:30500

Removal and Installation

BCS000KT

CAUTION:

● Do not spill brake fluid onto painted surfaces.

If it spills, wipe up immediately and wash the affected area with water.

● If manual transaxle is removed from the vehicle, always replace CSC (concentric slave cylinder).

CSC insert is returned to original position to remove transaxle. Dust on clutch disc sliding parts

may damage CSC seal and may cause brake fluid leak.

REMOVAL

1. Remove manual transaxle. Refer to MT-7, "REMOVAL AND INSTALLATION" (JH3) or MT-37,

"REMOVAL AND INSTALLATION" (JR5).

2. Remove bolts and CSC from manual transaxle.

INSPECTION

NOTE:

● Cannot disassemble CSC and release bearing because they are integral parts. Replace them as an

assembly.

Inspect for the following, and replace parts if necessary.

● CSC: damage, foreign material, wear or pinholes on the cylinder outer surface.

● Release bearing: damage, incorrect rotation direction, or has poor aligning function, and dust seal is

deformed or cracked.

INSTALLATION

1. Install new CSC to manual transaxle. Tighten to the specified torque.

CAUTION:

Do not insert and operate CSC because piston and stopper of CSC components may fall off.

2. Install manual transaxle to the vehicle. Refer to MT-7, "

REMOVAL AND INSTALLATION" (JH3) or MT-37,

"REMOVAL AND INSTALLATION" (JR5).

3. Bleed air from the clutch piping. Refer to CL-8, "

Air Bleeding Procedure" .

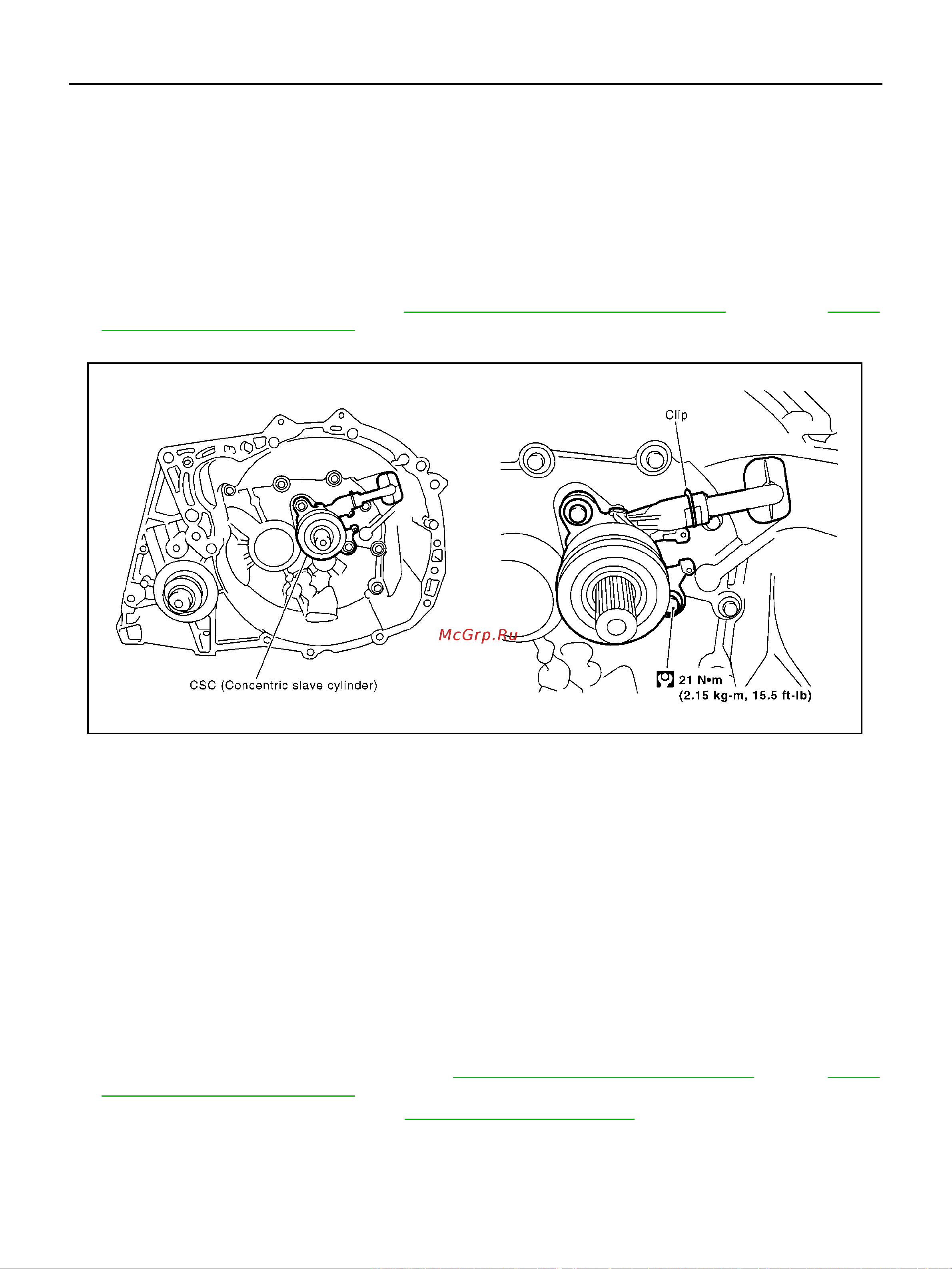

MCIA0172E

Tightening torque

: 21 N·m (2.15 kg-m, 15.5 ft- lb)
