CLUTCH PEDAL

PFP:46540

On Board Inspection

BCS000KP

HEIGHT INSPECTION

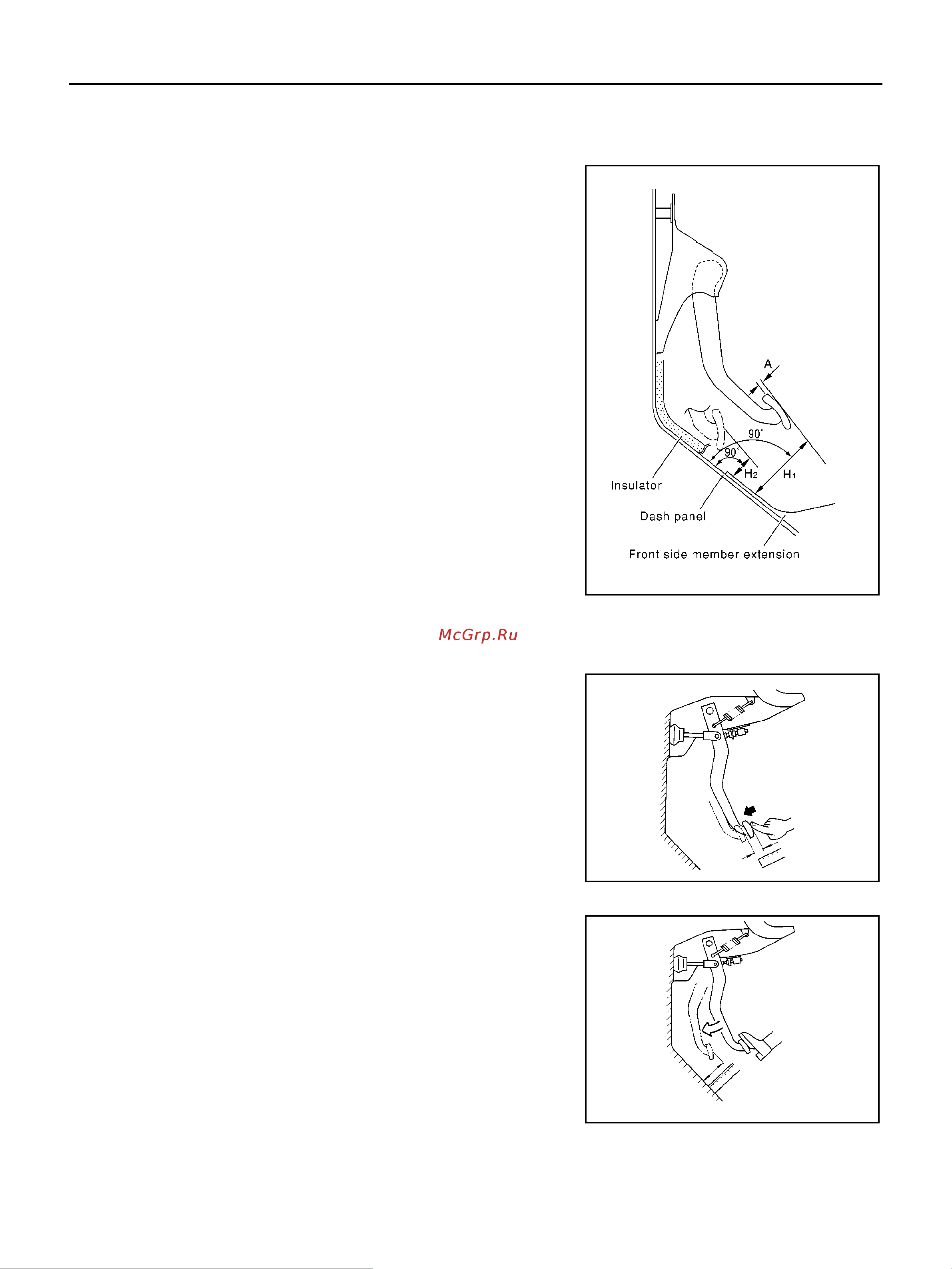

1. Make sure clutch pedal height H1 from upper surface of the

dash panel is within the specified range.

2. If pedal height H

1 is outside the specification, replace pedal

assembly.

3. Make sure free play A at pedal pad top surface and pedal height

2 when clutch is disengaged are within the ranges specified

below.

4. If free play A at pedal pad top surface and pedal height H

2 when

clutch is disengaged are outside the specification, replace clutch pedal assembly.

PLAY INSPECTION

● Press the clutch pedal by hand until certain resistance can be

felt. Using a scale, Make sure the free play is within the specified

range.

CLEARANCE CHECK

1. Start the engine and let it idle.

2. Apply parking brake.

3. Depress the brake pedal.

4. Fully depress clutch pedal and shift to 1st gear.

5. Release clutch pedal gradually. Using a scale, check the clear-

ance between the clutch pedal and floor panel to see if it is

within the specified range.

NOTE:

Pedal height at clutch disengagement varies slightly from the clutch engagement point. Despite this, pedal

height at clutch engagement is commonly used for both cases in order to simplify the inspection.

Pedal height H

: 160 - 169 mm (6.30 - 6.65 in) (LHD with CR engine)

(LHD with HR engine)

: 164 - 174 mm (6.46 - 6.85 in) (RHD with CR engine)

: 170 - 180 mm (6.69 - 7.09 in) (LHD K9K 50/63 kW)

: 175 - 185 mm (6.89 - 7.23 in) (RHD K9K 50/63 kW)

(RHD with HR engine)

A: Pedal free play at the pedal pad

: 0.5 mm (0.02 in)

Pedal height H

2 when clutch is disengaged

: 100 mm (3.94 in) or more (CR engine)

SCIA1256E

Pedal free play

: 0.5 mm (0.02 in)

MAA0023D

Pedal height when the clutch disengages

: 100 mm (3.94 in) or more (CR engine)

MAA0024D
