CL-12

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

REMOVAL

1. Remove manual transaxle from the vehicle. Refer to MT-7, "REMOVAL AND INSTALLATION" (JH3) or

MT-37, "

REMOVAL AND INSTALLATION" (JR5).

2. Loosen clutch cover mounting bolts evenly. Remove clutch cover and clutch disc.

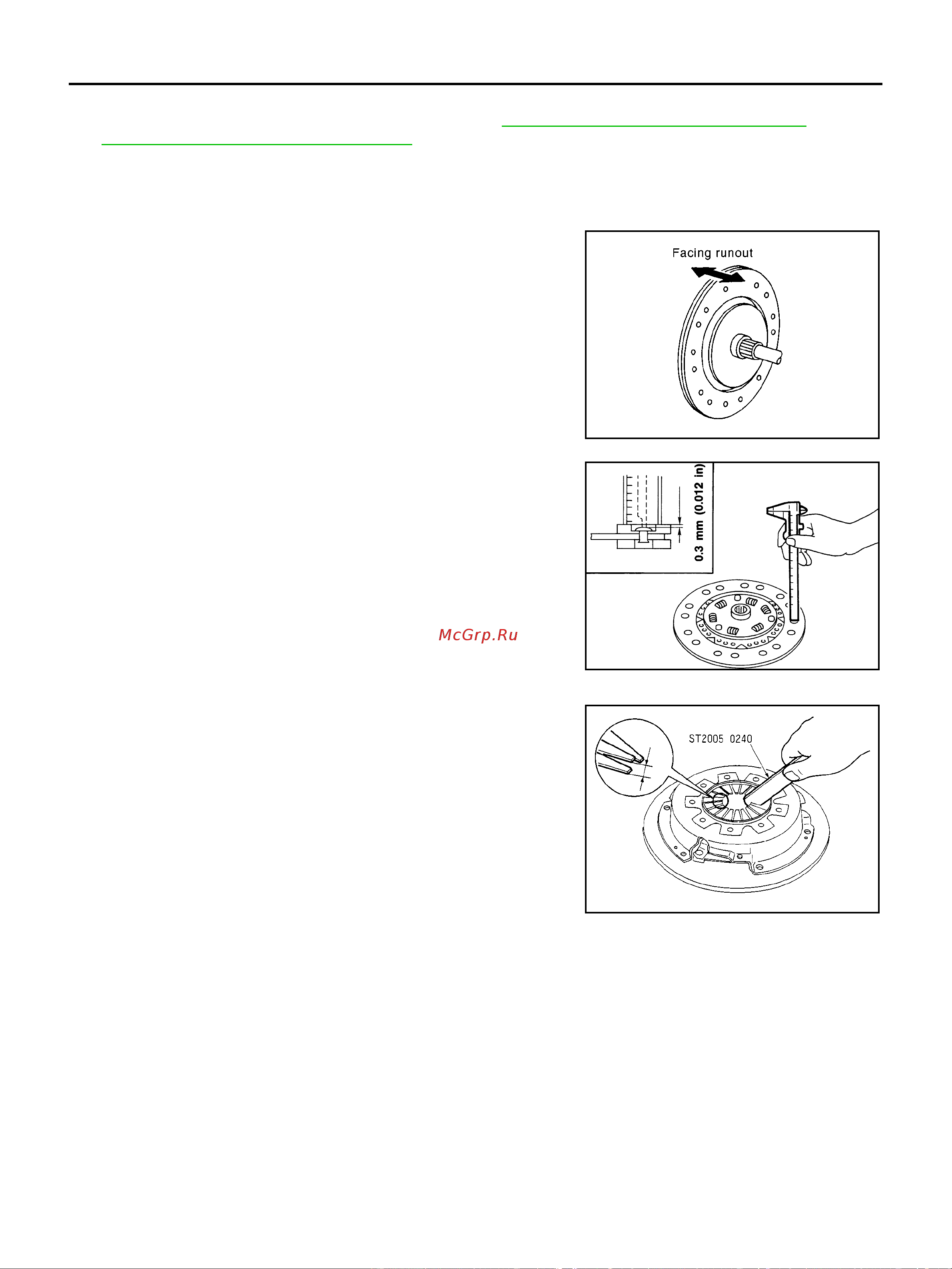

INSPECTION AND ADJUSTMENT AFTER REMOVAL (CR ENGINE)

Clutch Disc

● Measure circumferential runout relative to the clutch disc center

spline. If it is outside the specification, replace the clutch disc.

● Using calipers, measure the depth to the clutch disc facing rivet

heads. If it exceeds the allowable wear limit, replace the clutch

disc.

Clutch Cover

Check diaphragm spring lever claws for unevenness with the lever

still on the vehicle. If they exceed the tolerance, adjust lever height

using a diaphragm adjusting wrench (SST).

● Check clutch cover thrust ring for wear or breakage. If wear or

breakage is found, replace clutch cover assembly.

NOTE:

● Worn thrust ring will generate a beating noise when tapped at the rivet with a hammer.

● Broken thrust ring will make a clinking sound when cover is shaken up and down.

● If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,

repair the surface with sandpaper. If surface is damaged or distorted, replace the assembly.

Runout limit/diameter of the area to be measured:

CR14 engine :1.0mm (0.039 in) or less/180

(7.08 in) mm dia.

HR engine :1.0mm (0.039 in) or less/190

(7.48 in) mm dia.

SCIA1270E

Facing wear limit (depth to the rivet head)

: 0.3 mm (0.012 in)

SCL229

Tolerance for diaphragm spring lever unevenness

CR engine : 0.7 mm (0.028 in)

HR engine : 0.7 mm (0.028 in)

K9K 50/63kW : 0.8 mm (0.031 in)

CLA0069D
