CLUTCH PEDAL
CL-7
D
E
F
G
H
I
J
K
L
M
A
B
CL
Removal and Installation
BCS000KQ

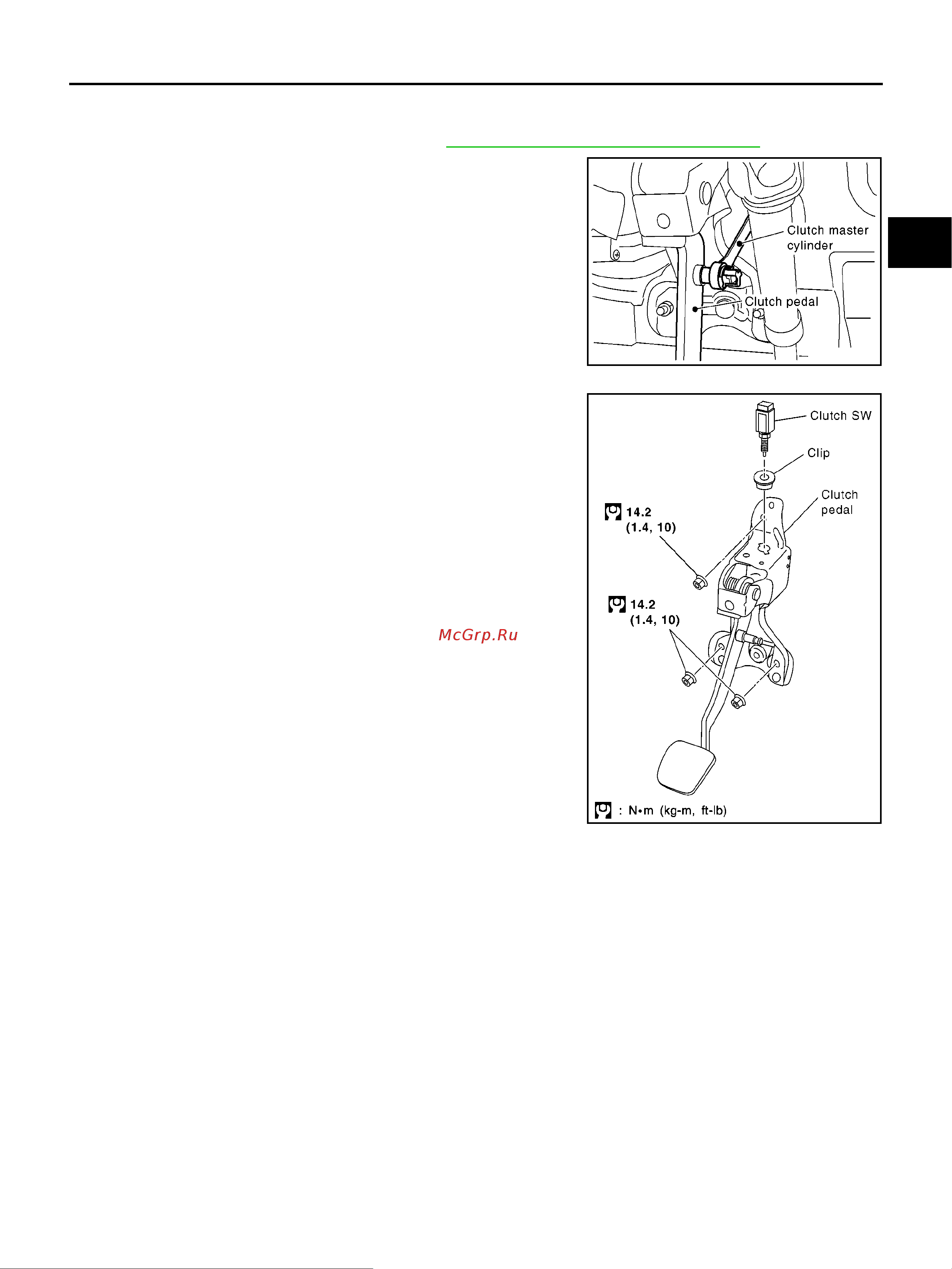

REMOVAL
1. Remove instrument panel under tray. Refer to IP-4, "INSTRUMENT PANEL ASSEMBLY" .
2. Unlock master cylinder rod end and separate master cylinder
from clutch pedal.
3. Remove clutch switch harness clamp from pedal bracket.
4. Disconnect clutch switch connector.
5. Remove nuts (3), and remove clutch pedal assembly.
INSPECTION AFTER REMOVAL
● Check clutch pedal for bend, damage, and a cracked weld. If bend, damage, or a cracked weld is found,
replace clutch pedal assembly.
INSTALLATION
● Install in the reverse order of removal.
SCIA1284E
SCIA1260E
