CLUTCH DISC, CLUTCH COVER AND FLYWHEEL
CL-11
D
E
F
G
H
I
J
K
L
M
A
B
CL
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL PFP:30100
Removal and Installation
BCS000KU
CAUTION:
● If manual transaxle is removed from the vehicle, always replace CSC (concentric slave cylinder).
CSC insert is returned to original position to remove transaxle. Dust on clutch disc sliding parts
may damage CSC seal and may cause brake fluid leak.
● Be careful not to bring any grease into contact with the clutch disc facing, pressure plate surface,
or flywheel surface.

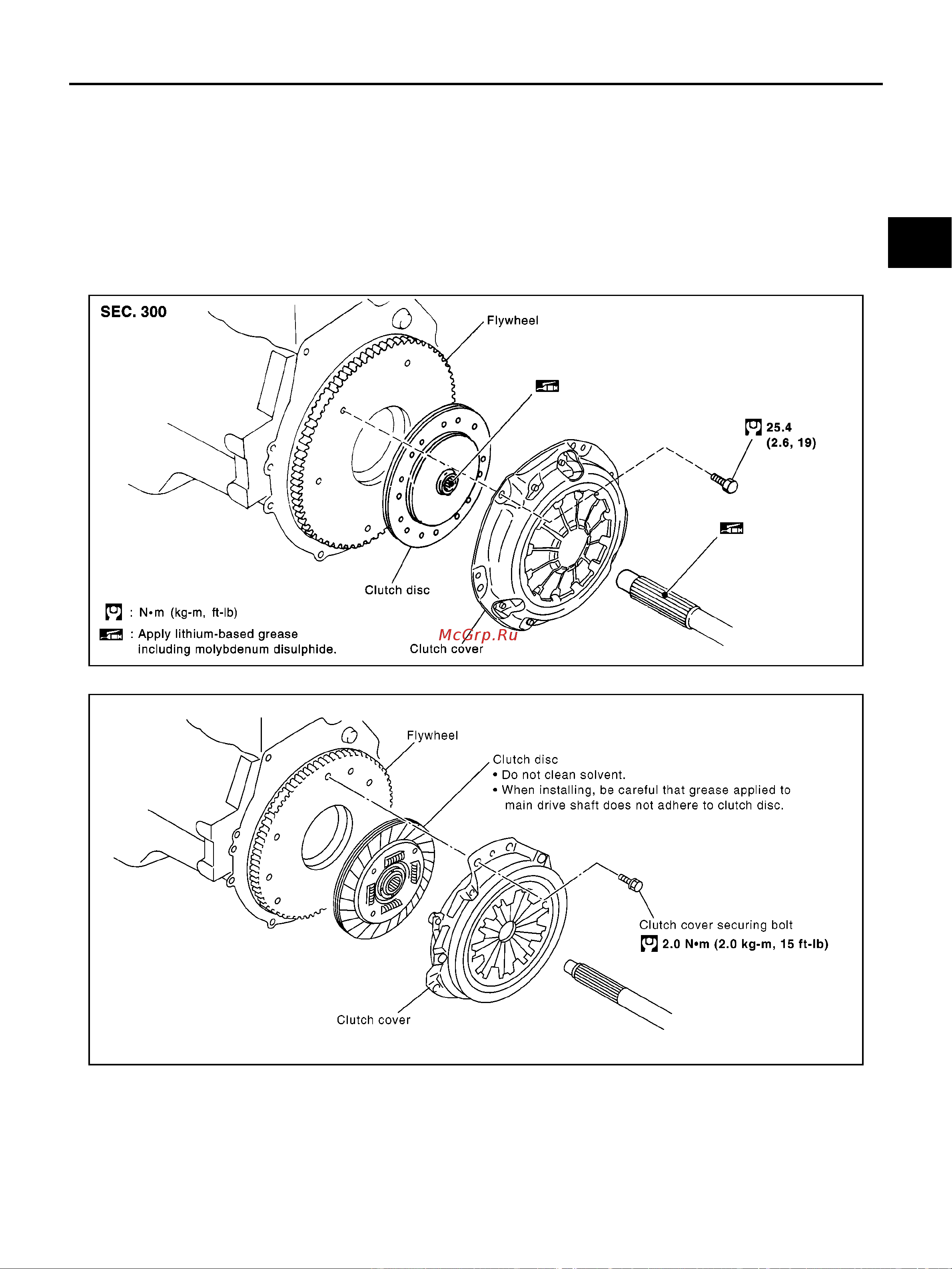

Petrol Engine
Diesel Engine
SCIA1268E
YCL032
