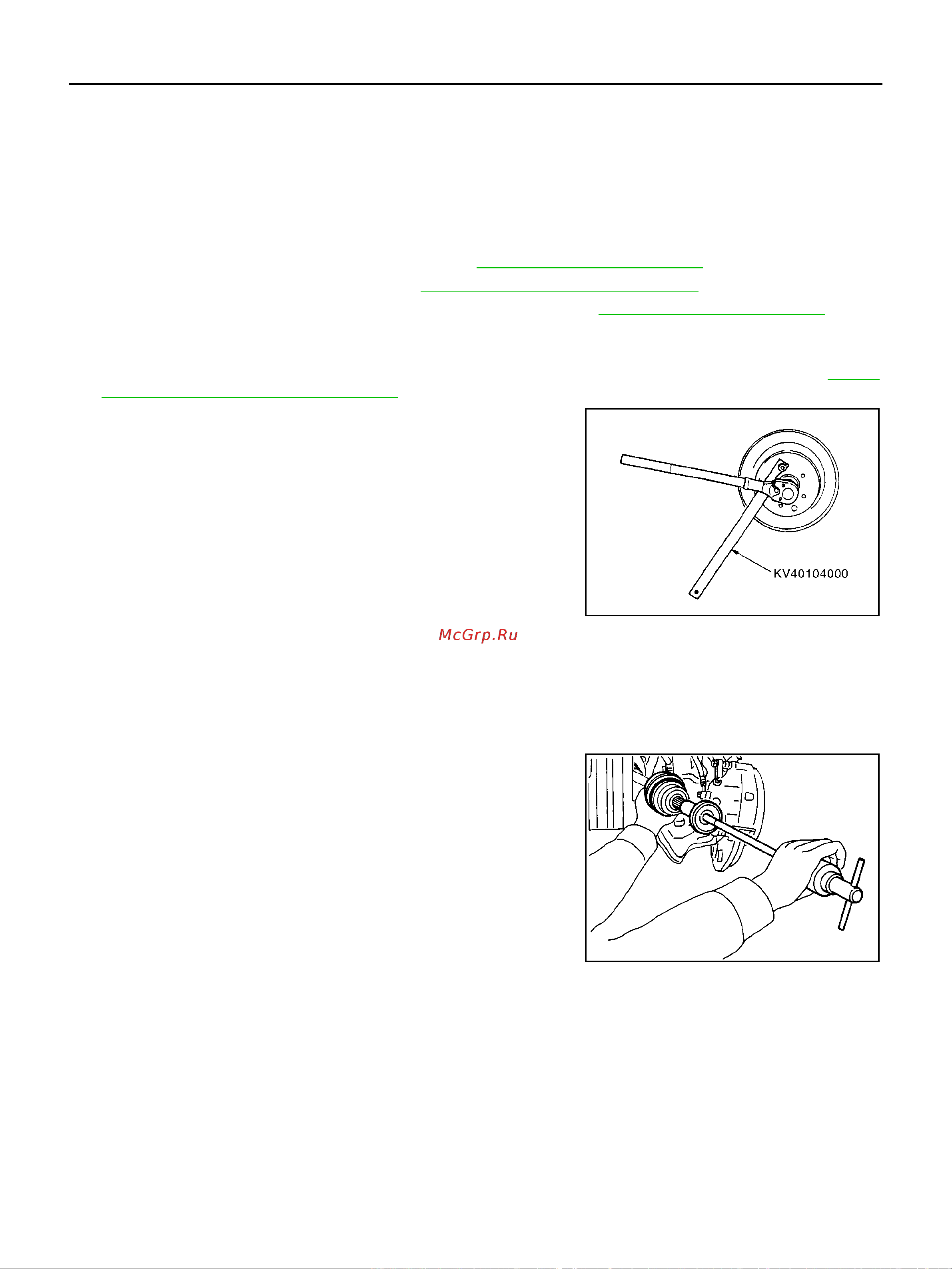

FAX-10
FRONT DRIVE SHAFT
FRONT DRIVE SHAFT
PFP:39100
On-Vehicle Inspection and Service
BDS0006Y
DRIVE SHAFT BOOT
Replacement
CAUTION:
When noise or vibration occur from drive shaft, replace entire drive shaft assembly.
1. Lift up the vehicle and remove the wheel from the vehicle.
2. Disconnect ABS wheel sensor harness connector. BRC-36, "
WHEEL SENSORS" .
3. Disconnect brake hose from strut. Refer to BR-11, "
BRAKE PIPING AND HOSE" .
4. Remove the ABS wheel sensor from the steering knuckle. Refer to BRC-36, "
WHEEL SENSORS" .
CAUTION:
Do not pull on ABS wheel sensor harness.
5. Remove brake caliper assembly from brake rotor and hand cylinder body with a wire. Refer to BR-22,
"Removal and Installation of Brake Pad" .
6. Use a hub lock nut wrench (SST), remove lock nuts.
7. Remove steering knuckle and strut installation bolt.
CAUTION:
Do not place drive shaft joint at an extreme angle (22° or
more). Also, hold steering knuckle tightly and do not over-
extend slide joint.
8. Using a puller (commercial service tool), remove the drive shaft
from the steering knuckle.
CAUTION:
When removing drive shaft, do not place drive shaft joint at
an extreme angle (22° or more). Also be careful not to over-
extend slide joint.
● Do not lift drive shaft with axle attached by grasping barshaft only.
● Do not allow the wheel-side joint and/or barshaft to hang from the transmission without sup-
port.
9. Remove boot bands and remove boot from the joint subassembly.
10. Screw drive shaft puller (commercial service tool) into joint sub-
assembly screw part in depth of 30 mm (1.18in) or more. Fix
drive shaft by one hand and pull out joint subassembly with slid-
ing hammer (commercial service tool) from shaft.
CAUTION:
● For K9K engines: before separating joint subassembly
put matching marks on drive shaft and joint subassem-
bly.
● Align sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.
● When joint subassembly is not able to be pulled out, try
after removing drive shaft from the vehicle.
11. Remove boot from shaft.
MDIA0038E
SDIA0881J
