FRONT WHEEL HUB AND KNUCKLE

PFP:40202

On-Vehicle Inspection

BDS0006V

Inspect to check that there is no excessive play, cracking, wear, or

other damage to front axle.

● Turn front wheels (left/right) and check the play.

● Check that no nails or other foreign objects are embedded.

● Retighten all axle nuts and bolts to the specified torque.

FRONT WHEEL BEARING

With the vehicle raised, inspect the following:

● Move wheel hub in the axial direction by hand. Check if there is no looseness of front wheel bearings.

● Rotate wheel hub and Make sure there is no unusual noise or other non-standard condition. If there are

any non-standard conditions, replace the wheel bearing.

Removal and Installation

BDS0006W

REMOVAL

1. Lift up the vehicle and remove tyre from the vehicle.

2. Disconnect ABS wheel sensor harness connector. Refer to BRC-36, "

WHEEL SENSORS" .

3. Disconnect brake hose from strut. Refer to BR-11, "

BRAKE PIPING AND HOSE" .

4. Remove brake caliper from steering knuckle. Hang it in a place where it does not interfere with work.

Refer to BR-23, "

Removal and Installation of Brake Caliper Assembly" .

CAUTION:

Avoid depressing the brake pedal with the brake caliper removed.

5. Remove disc rotor from wheel hub. Refer to BR-21, "

FRONT DISC BRAKE" .

6. Pull out ABS wheel sensor from steering knuckle. Refer to BRC-36, "

WHEEL SENSORS" .

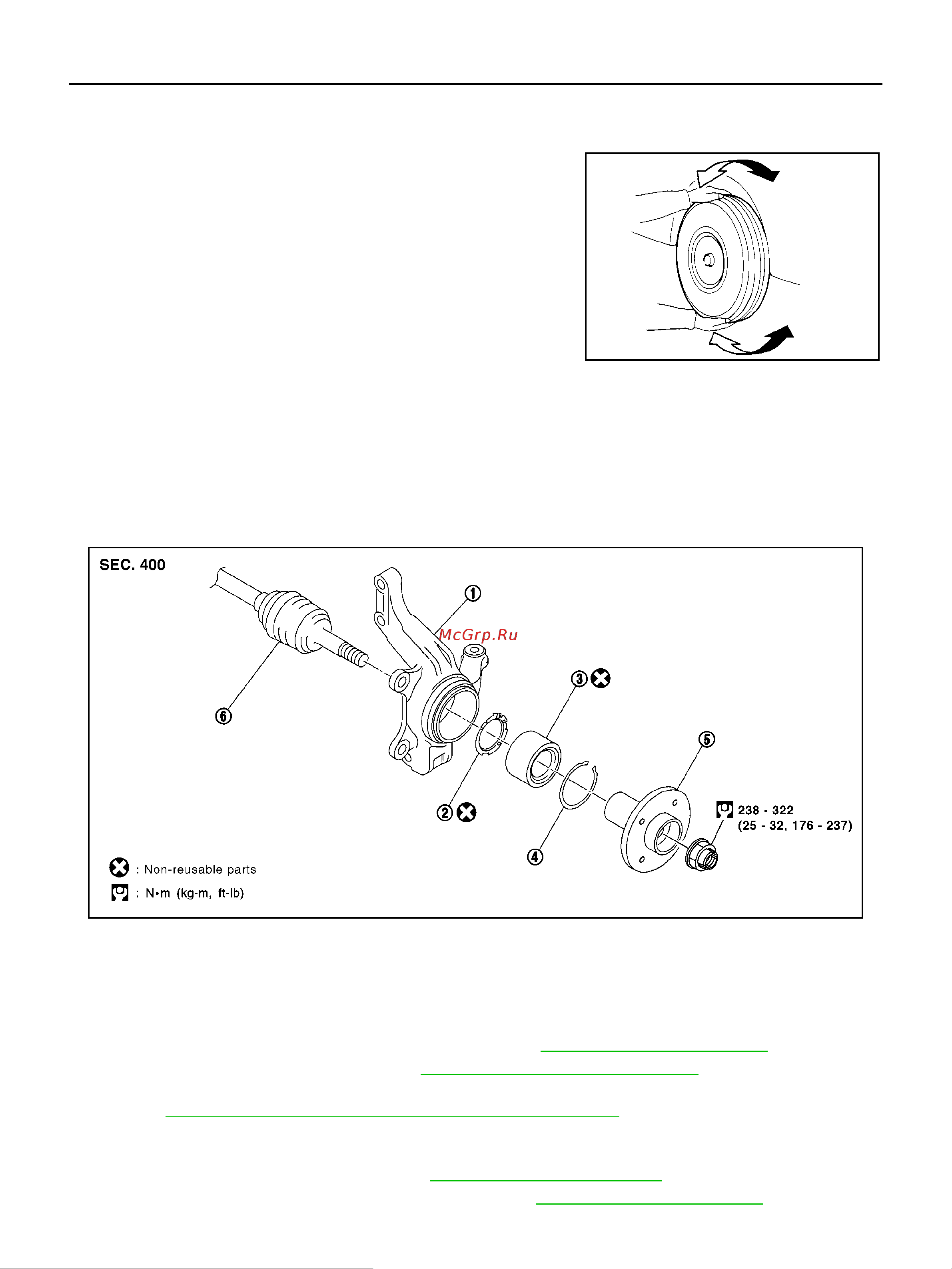

SMA525A

Axial end play : 0.05 mm (0.0020 in)

MDIA0032E

1. Steering knuckle 2. Sensor housing 3. Wheel bearing

4. Snap rings 5. Wheel hub 6. Front drive shaft
