PREPARATION
FAX-3
C
E
F
G
H
I
J
K
L
M
A
B
FAX
PREPARATION PFP:00002

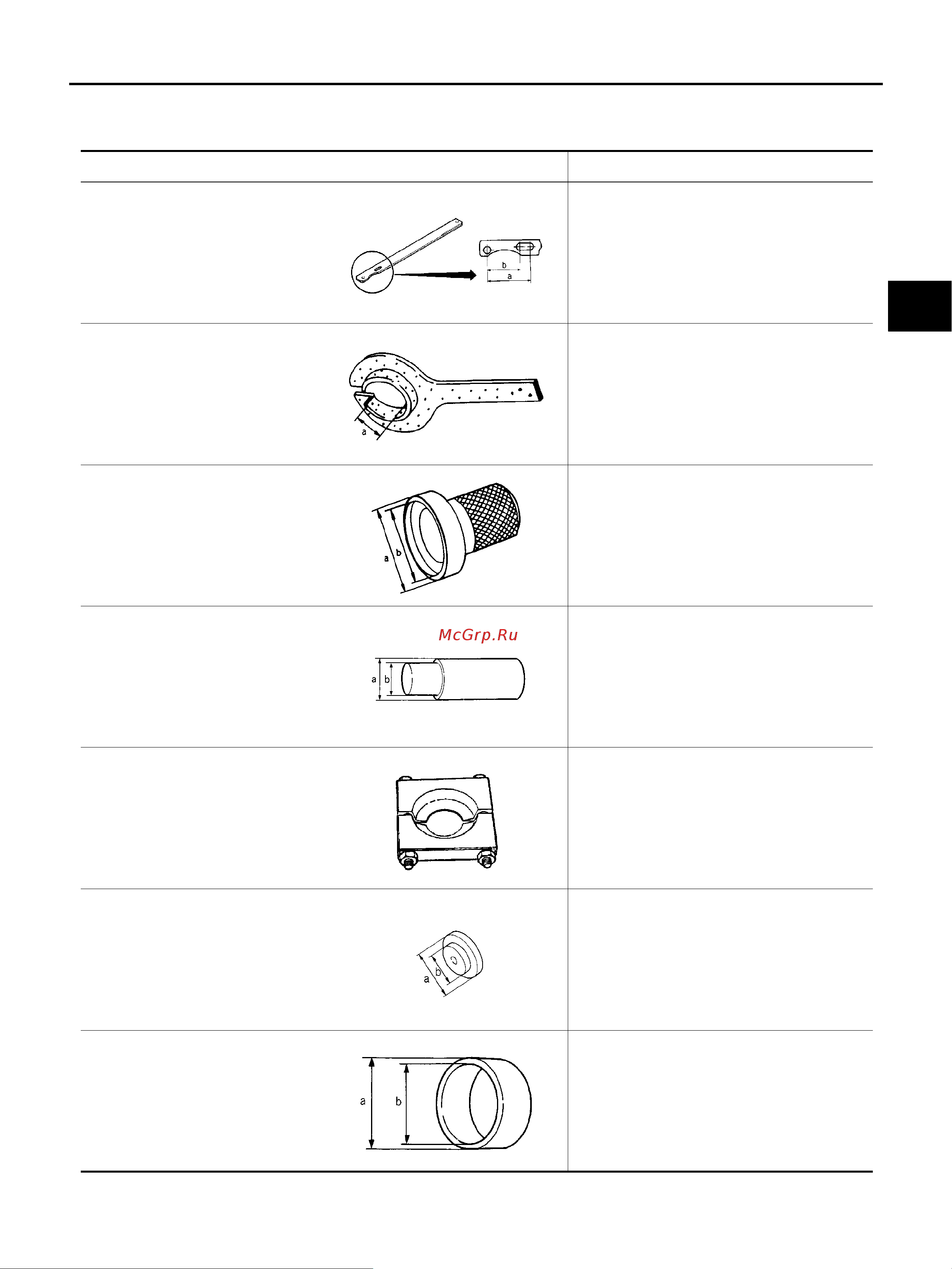

Special Service Tools
BDS0006T
Description Application
Hub lock nut wrench
KV40104000
a: 85 mm (3.35 in) dia.
b: 65 mm (2.56 in) dia.
● Removing and installing hub lock nuts
● Removing and installing drive shaft
Protector
KV38107900
a: 32 mm (1.26 in) dia.
Installing drive shaft
Drift
ST35271000
a: 72 mm (2.83 in) dia.
b: 63 mm (2.48 in) dia.
Installing wheel bearing
Drift
ST33710000
a: 30 mm (1.18 in) dia.
b: 23 mm (0.91 in) dia.
● Removing wheel hub
● Removing inner race (outside) of wheel
bearing
Bearing replacer
ST30031000
Removing inner race (outside) of wheel
bearing
Drift
ST35321000
a: 49 mm (1.93 in) dia.
b: 41 mm (1.61 in) dia.
ST30621000
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.
● Removing wheel bearing
● Installing wheel hub
Drift
ST27863000
a: 74 mm (2.91 in) dia.
b: 62 mm (2.44 in) dia.
Installing wheel bearing
ZZA0802D
ZZA0835D
ZZA0837D
ZZA1233D
ZZA0700D
ZZA1051D
ZZA0936D
