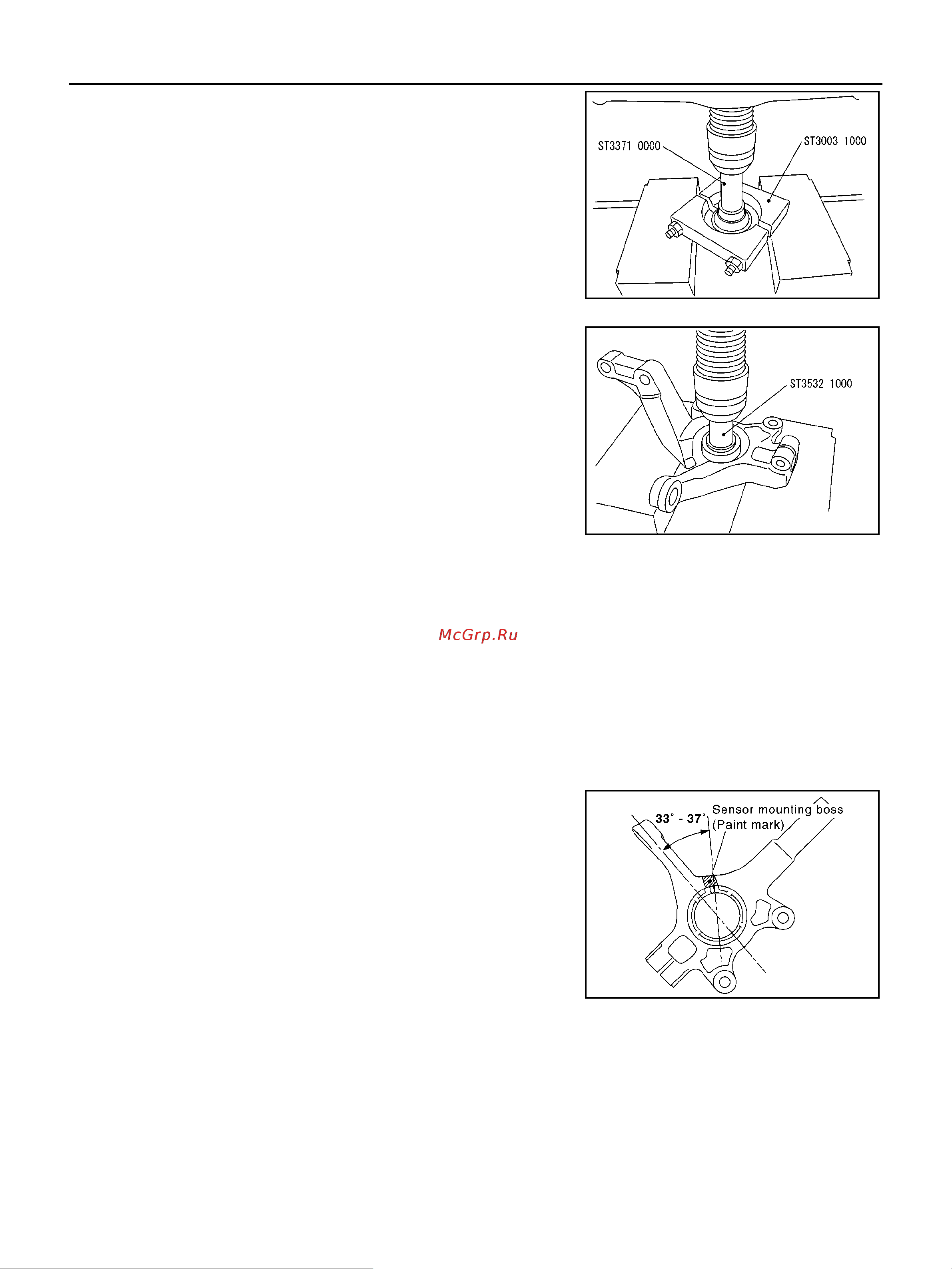

FAX-8
FRONT WHEEL HUB AND KNUCKLE
3. Use a puller (commercial service tool), drift (SST), and bearing
replacer (SST) to remove inner race of outer wheel bearing from
wheel hub.
4. Press the wheel bearing and sensor housing out of the steering
knuckle with a drift (SST).
INSPECTION AFTER DISASSEMBLY
Wheel Hub
● Check wheel hub for cracks (with magnetic exploration or dye testing). Replace if necessary.
Steering Knuckle
● Check steering knuckle for deformation, cracks, and other damage. Replace if any non-standard condi-
tions are found.
Snap Rings
● Check snap ring for wear or cracks. Replace if necessary.
ASSEMBLY
1. Temporarily put sensor housing on steering knuckle.
CAUTION:
Protrusion of sensor housing ABS sensor mounting should
fit in cutout of steering knuckle (as shown in figure).
SDIA0759J
SDIA0760J
MDIA0035E
