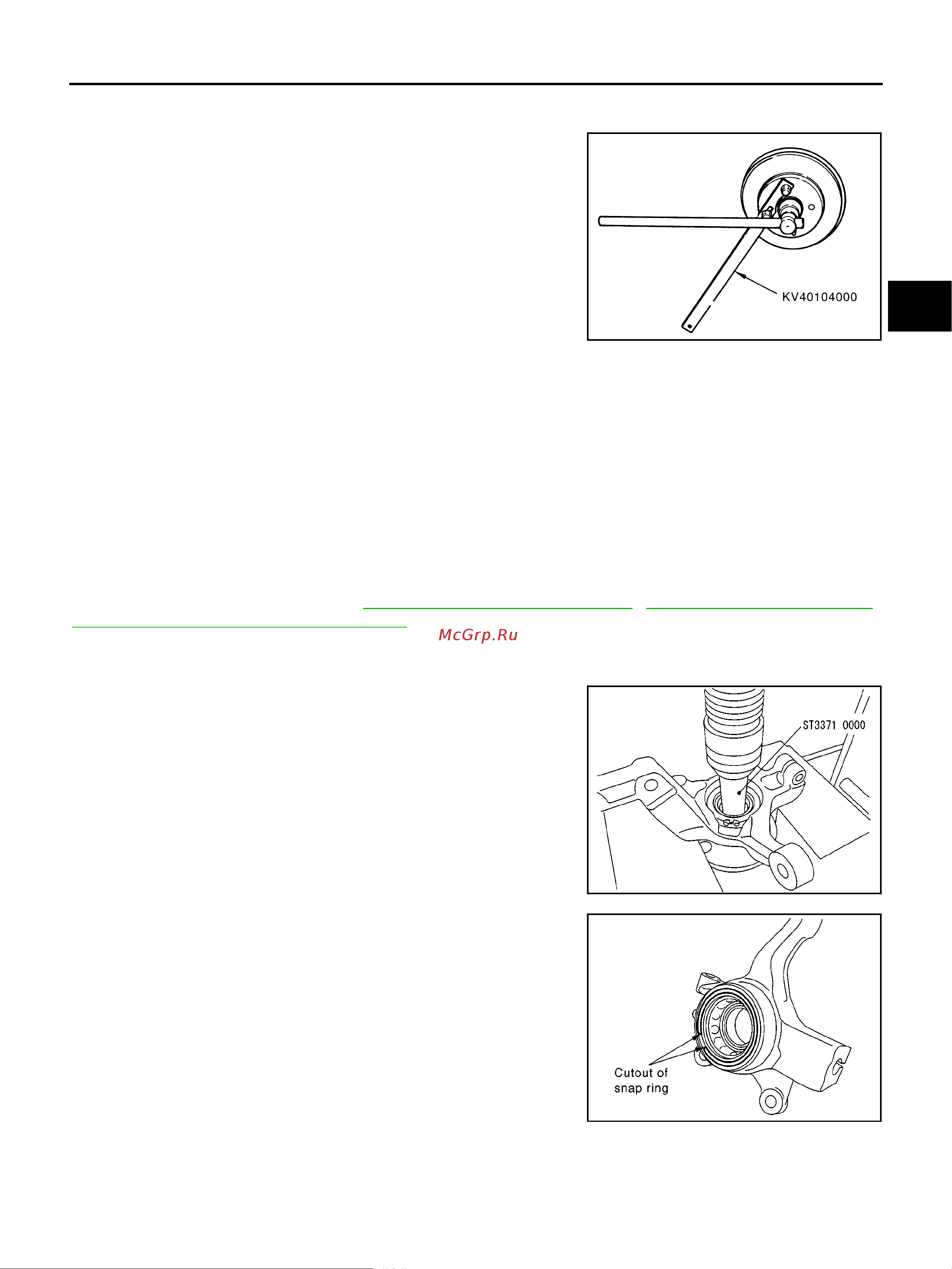

FRONT WHEEL HUB AND KNUCKLE
FAX-7
C
E
F
G
H
I
J
K
L
M
A
B
FAX
CAUTION:
Do not pull on ABS wheel sensor harness.
7. Use wheel hub lock nut wrench (SST) to remove lock nut from
drive shaft.
8. Remove tie-rod from steering knuckle. If tie-rod is not easily
removed, use ball joint remover (commercial service tool).
CAUTION:
To prevent damage to threads and to prevent ball joint
remover (commercial service tool) from sudden coming off,
temporarily tighten lock nuts.
9. Remove steering knuckle from strut.
CAUTION:
Do not place drive shaft joint at an extreme angle (22° or
more). Also, hold steering knuckle tightly and do not overextend slide joint.
10. Remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaft, do not place drive shaft joint at an extreme angle (22° or more). Also
be careful not to overextend slide joint.
● Do not lift drive shaft with axle attached by grasping countershaft only.
● Do not allow drive shaft, with transaxle inserted, to hang down without support for countershaft,
wheel joints, and other parts.
11. Remove transverse link ball joint mounting bolt and nut. Then, remove transverse link from steering
knuckle.
INSTALLATION
For tightening torque and other details, FAX-6, "FRONT WHEEL BEARING" , BRC-36, "WHEEL SENSORS" ,
FSU-5, "
FRONT SUSPENSION ASSEMBLY" and tighten in the reverse order of removal.
Disassembly and Assembly
BDS0006X
DISASSEMBLY
1. Press the wheel bearing out with a drift (SST) to remove.
2. Insert a screwdriver into cutout of snap ring and remove it from
steering knuckle.
CAUTION:
Be careful not to scratch the steering knuckle.
MDIA0033E
SDIA0758J
MDIA0034E
