FSU-10
TRANSVERSE LINK
TRANSVERSE LINK
PFP:54500
Removal and Installation
BES0002O
REMOVAL
1. Raise vehicle and remove tyre.
2. Remove nuts and bolts of transverse link ball joint, and remove transverse link from steering knuckle.

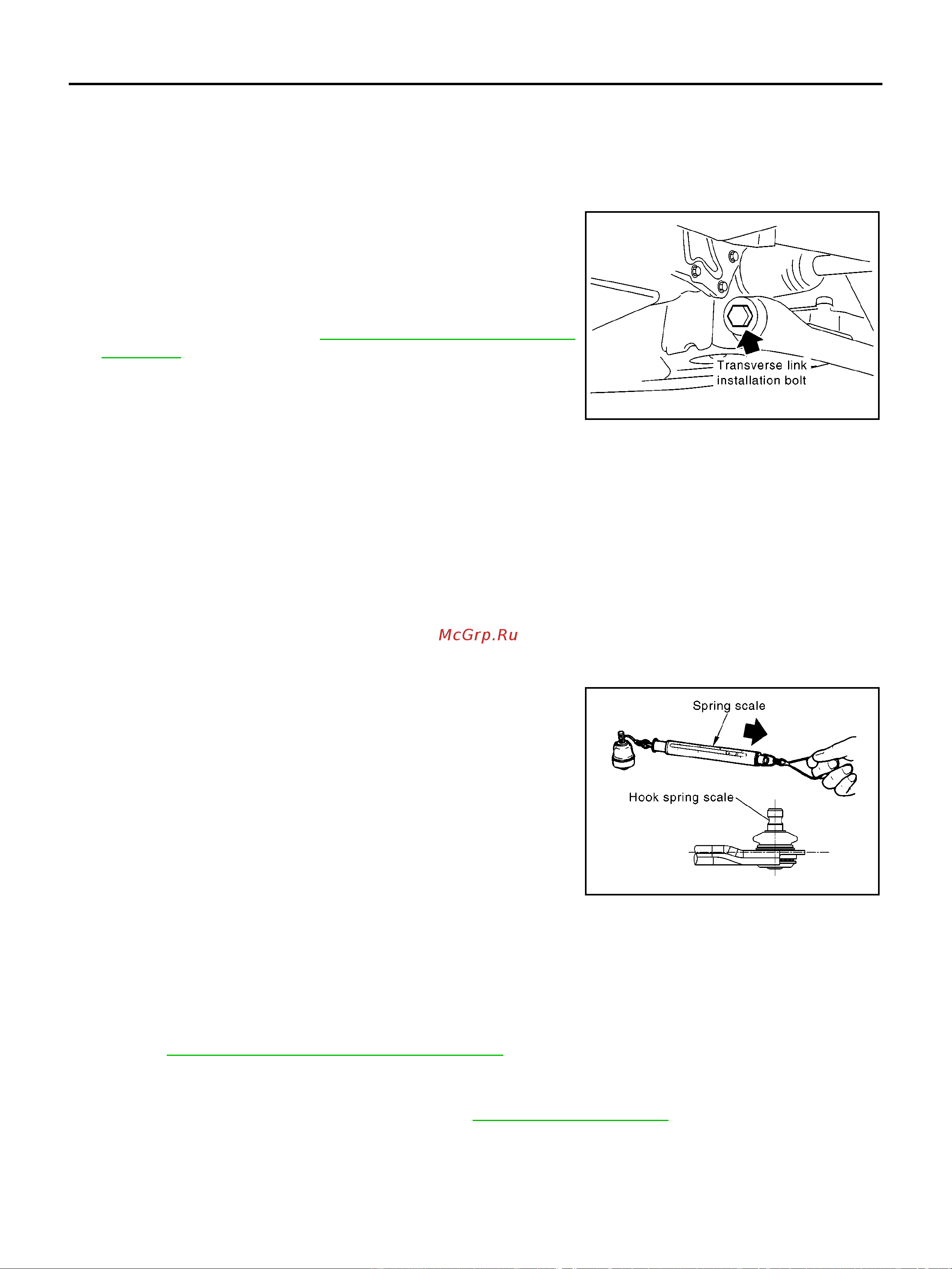

3. Remove transverse link nuts and bolts, and remove transverse
link from suspension member.
NOTE:
When removing LH transverse link (A/T models), lower the sus-
pension member in order to remove bolts to avoid contacting
and releasing the mounting bolts on vehicle front. Remove sus-
pension member. Refer to FSU-13, "
FRONT SUSPENSION
MEMBER" .
a. Set jack under suspension member.
b. Loosen RH upper link mounting bolt, LH upper link mounting
bolt (suspension member side), suspension member mounting
bolts (left/right). Lower the suspension member in order to
remove transverse link mounting bolts.
INSPECTION AFTER REMOVAL
Visual Inspection
Check transverse link and bushing for deformation, cracks, and other damage, and replace entire transverse
link assembly if necessary.
Ball Joint Inspection
● Manually move ball stud to confirm it moves smoothly with no binding.
Oscillating Torque Inspection
CAUTION:
Before measuring, move the ball joint at least ten times by hand to check for smooth movement.
● Hook the spring scale at the cutout on ball stud, and make sure
the spring scale measurement value is within the standard when
ball stud begins moving.
● If value is outside the standard, replace transverse link.
Axial End Play Inspection
● Move the tip of the ball joint in the axial direction to check for looseness.
● If any looseness is noted, replace transverse link assembly as a single unit.
INSTALLATION
● Refer to FSU-5, "FRONT SUSPENSION ASSEMBLY" for tightening torque. Tighten in the reverse order
of removal.
● Fully tighten transverse link mounting nuts and bolts under unladen condition with tyres on level ground.
● After installation, check wheel alignment. Refer to FSU-6, "Wheel Alignment" .
MEIA0017E
Tensileforce :0.5-4.9N·m(0.05-0.5kg-m,5-43
in-lb)
Spring balance
measurement
: 15.4 - 150.8 N (1.6 - 15.4 kg, 3.5 -
33.9 lb)
MEIA0018E
Axial end play : 0 mm (0 in)
