Nissan Note [7/16] Front suspension assembly

FRONT SUSPENSION ASSEMBLY

FSU-7

FSU

Toe-in

Measure toe-in using the following procedure.

WARNING:

● Always perform the following procedure on a flat surface.

● Make sure that no person is in front of the vehicle before

pushing it.

1. Bounce front of vehicle up and down to stabilize the posture.

2. Push the vehicle straight ahead about 5 m (16 ft).

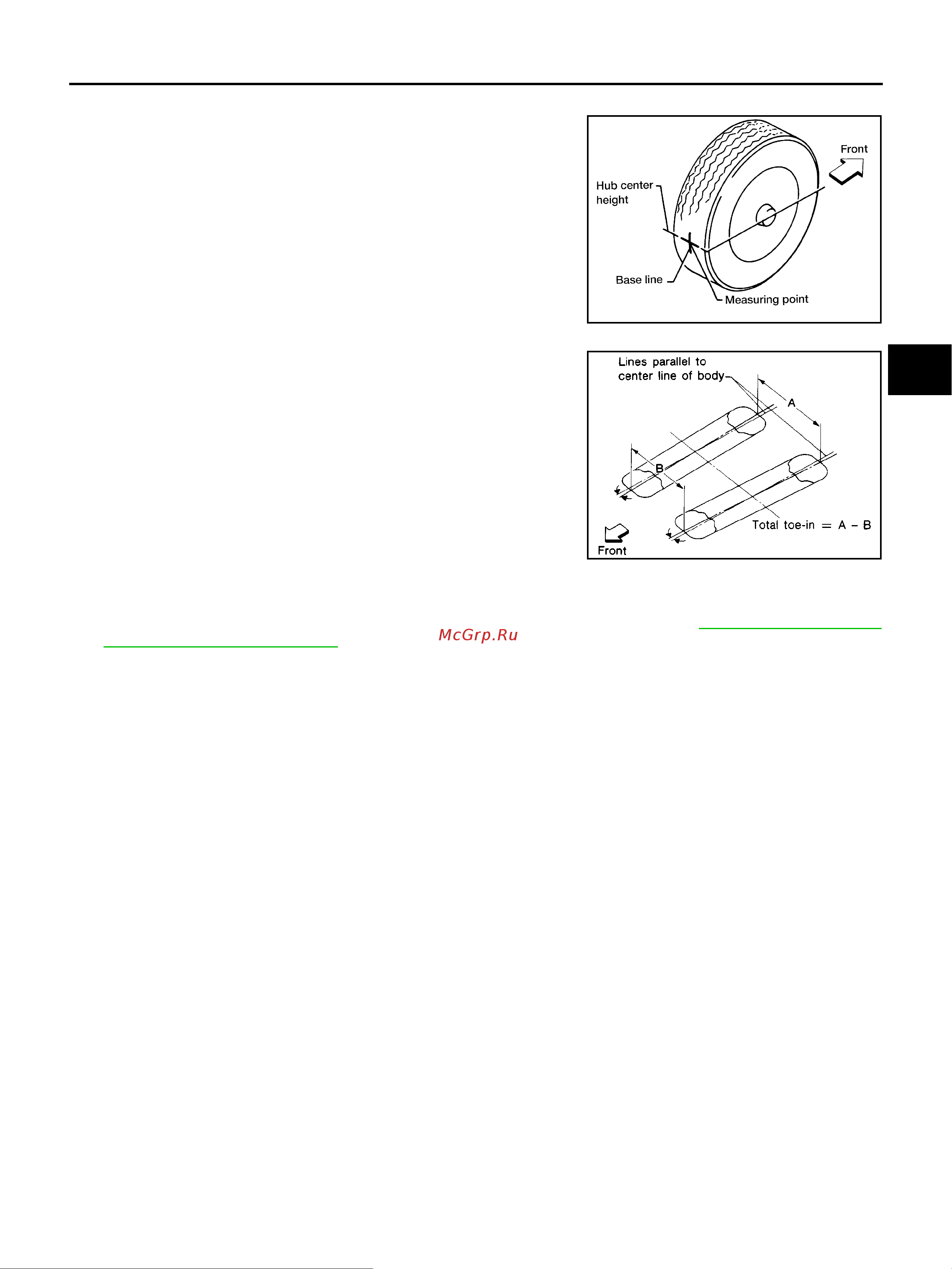

3. Put a mark on base line of tread (rear side) of both tyres at the

same height as hub center. These are measuring points.

4. Measure distance “A” (rear side).

5. Push the vehicle slowly ahead to rotate the wheels 180degrees

(1/2 turn).

If the wheels have rotated more than 180 degrees (1/2 turn), try the

above procedure again from the beginning. Never push vehicle

backward.

6. Measure distance “B” (front side).

STEERING ANGLE INSPECTION

1. Set wheels in straight-ahead position. Move vehicle to set front wheels on turning radius gauge.

2. Turn steering wheel fully to right and left, and measure steering angle. Refer to PS-13, "

SERVICE DATA

AND SPECIFICATIONS (SDS)" .

AFA050

Totaltoe-in:In2-0mm(0.08-0in)

SFA234AC
