Nissan Note [11/16] Removal and installation

STABILIZER BAR

FSU-11

FSU

STABILIZER BAR PFP:54611

Removal and Installation

BES0002P

REMOVAL

1. Raise vehicle and remove tyre.

2. Remove the attachment nut on the stabilizer connecting rod and remove the stabilizer connecting rod.

3. Remove tie-rod from steering knuckle. If it is difficult to remove tie-rod, remove it with a ball joint remover

(commercial service tool).

CAUTION:

To prevent damage to threads and to prevent ball joint remover (commercial service tool) from

coming off, temporarily tighten lock nuts.

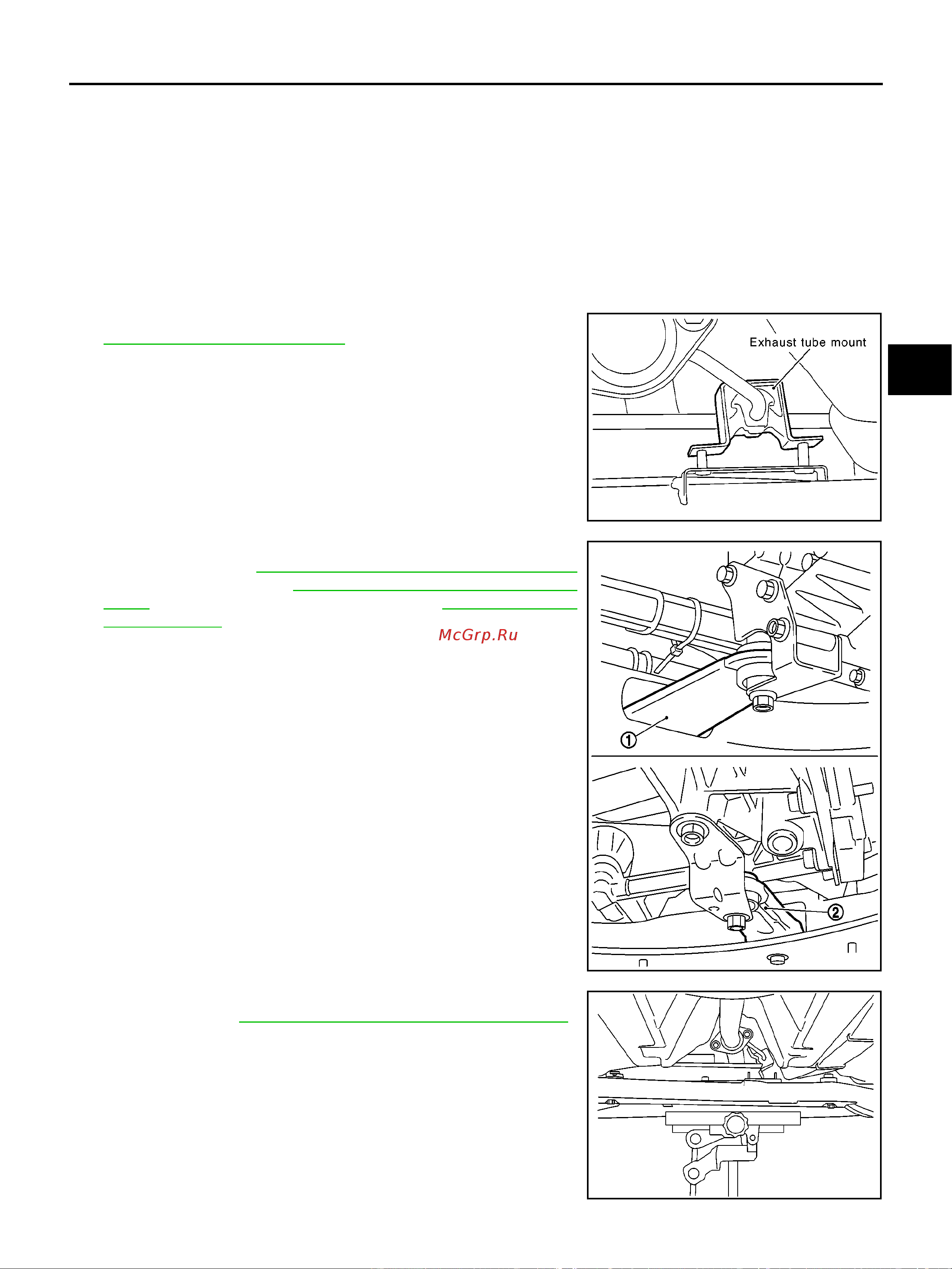

4. Remove exhaust tube mount (models with CR engine). Refer to

EX-3, "

Removal and Installation" .

5. Remove transaxle rear torque rod (1) (A/T models) or (2) (M/T

models). Refer to MT-7, "

REMOVAL AND INSTALLATION"

(with JH3 transaxle) or MT-37, "REMOVAL AND INSTALLA-

TION" (with JR5 transaxle) for M/T models, AT-356, "Removal

and Installation" for A/T models.

6. Remove rear side bolt of suspension member stay.

7. Set jack under suspension member.

8. Remove bolts of suspension member and suspension member

stay.

9. Lower suspension member in order to remove stabilizer mount-

ing bolts. Refer to FSU-13, "

FRONT SUSPENSION MEMBER" .

CAUTION:

Be careful not to lower it too far. (Do not overload the links.)

MEIA0019E

MEIB9028E

SEIA0161J
