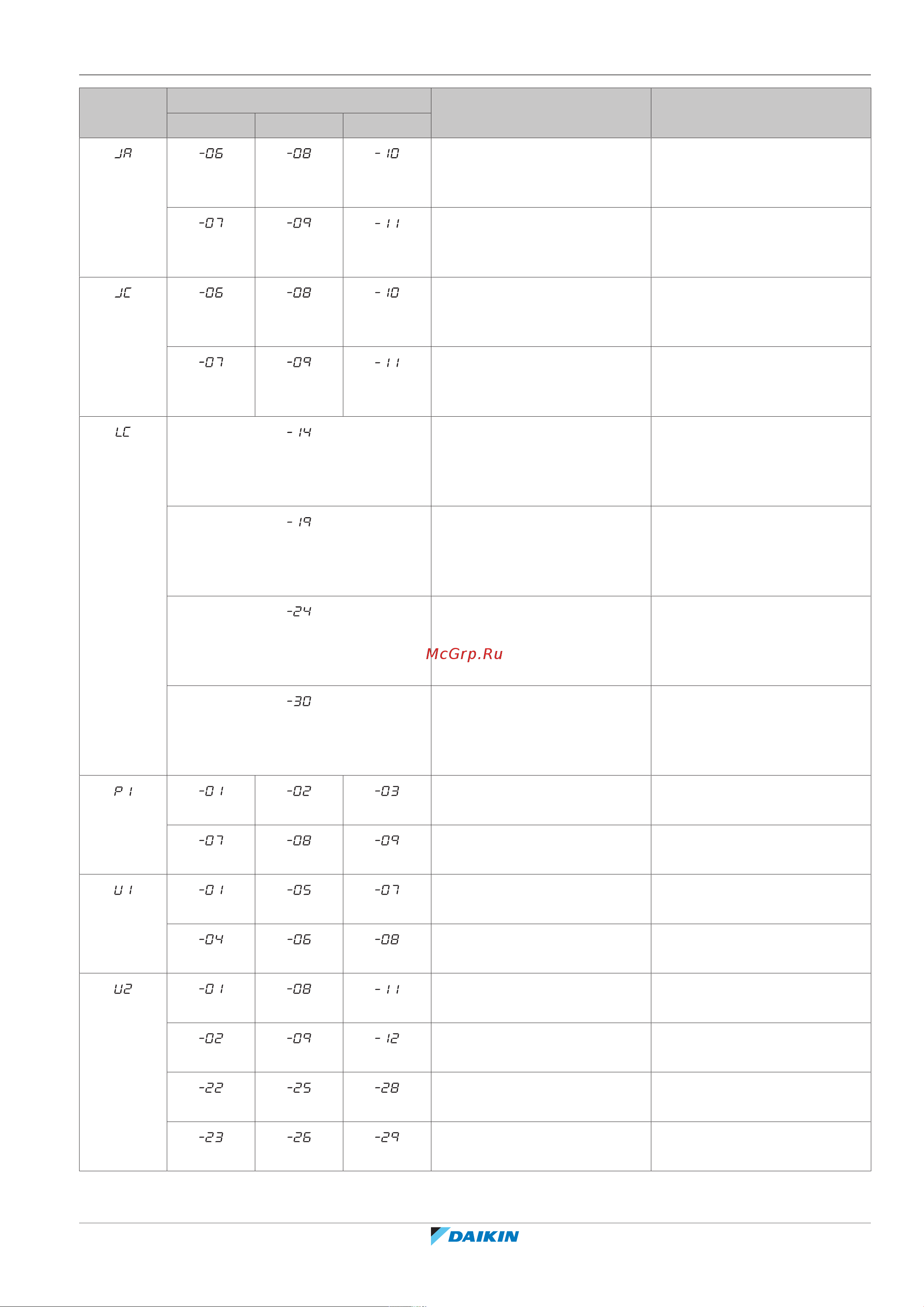

24 | Troubleshooting
Installer and user reference guide
137
RXYTQ8~16U7YF
VRV IV+ heat pump for high ambient temperatures
4P561157-1A – 2020.10
Main code Sub code Cause Solution
Master Slave 1 Slave 2
High pressure sensor
malfunction (S1NPH): open
circuit - A1P (X32A)
Check connection on PCB or
actuator.
High pressure sensor
malfunction (S1NPH): short
circuit - A1P (X32A)
Check connection on PCB or
actuator.
Low pressure sensor
malfunction (S1NPL): open
circuit - A1P (X31A)
Check connection on PCB or
actuator.
Low pressure sensor
malfunction (S1NPL): short
circuit - A1P (X31A)
Check connection on PCB or
actuator.
Transmission outdoor unit -
inverter: INV1 transmission
trouble - A1P (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit -
inverter: FAN1 transmission
trouble - A1P (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit -
inverter: FAN2 transmission
trouble - A1P (X20A, X28A,
X40A)
Check connection.
Transmission outdoor unit -
inverter: INV2 transmission
trouble - A1P (X20A, X28A,
X40A)
Check connection.
INV1 unbalanced power
supply voltage
Check if power supply is
within range.
INV2 unbalanced power
supply voltage
Check if power supply is
within range.
Reversed power supply phase
malfunction
Correct phase order.
Reversed power supply phase
malfunction
Correct phase order.
INV1 voltage power shortage Check if power supply is
within range.
INV1 power phase loss Check if power supply is
within range.
INV2 voltage power shortage Check if power supply is
within range
INV2 power phase loss Check if power supply is
within range.
