26 | Technical data
Installer and user reference guide
144
RXYTQ8~16U7YF
VRV IV+ heat pump for high ambient temperatures
4P561157-1A – 2020.10
a Compressor (M1C)
b Compressor (M2C)
c Heat exchanger
d Fan
e Fan motor (M1F, M2F)
f Accumulator
g Expansion valve, main (Y1E)
h Expansion valve, subcool heat exchanger (Y2E)
i Expansion valve, storage vessel (Y4E)
j Subcool heat exchanger
k Oil separator
l Solenoid valve, oil accumulator (Y2S)
m Solenoid valve, oil1 (Y3S)
n Solenoid valve, oil2 (Y4S)
o 4‑way valve, main (Y1S)
p 4‑way valve, sub (Y5S)
q Electrical component box
r Service port, refrigerant charge
s Stop valve, liquid
t Stop valve, gas
u Expansion valve, liquid cooling (Y3E)
v Service port

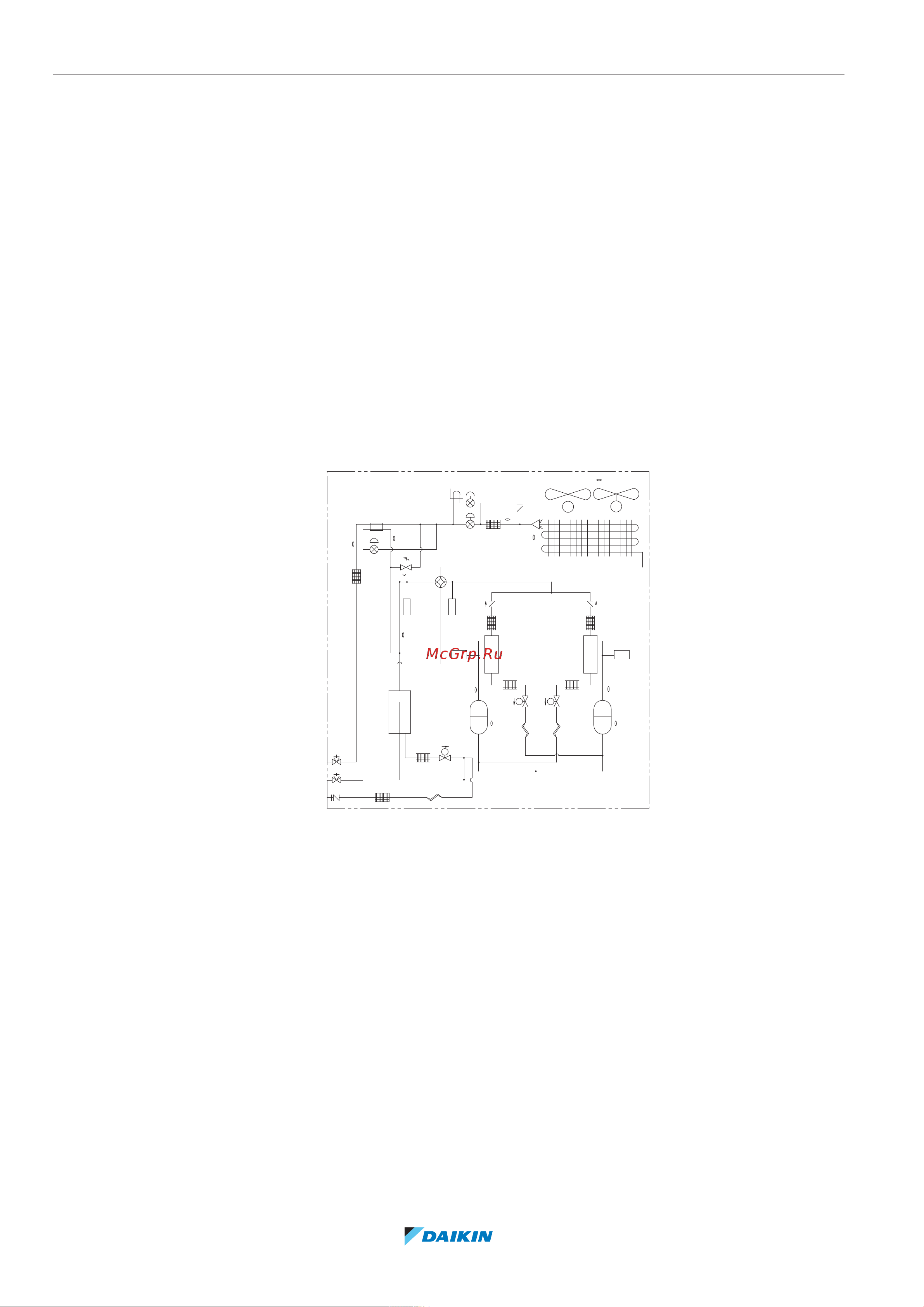

Piping diagram: RXYTQ14+16
a
b
k k
nm
f
l
j
o
t
s
h
c
e
d d
e
M
sv
sv
INV INV
sv
M1C
M2C
M1F
M
M2F
(S1NPH)
(S1NPL)
(S1PH) (S2PH)
HPS
R6T
R5T
R1T
R9TR8T
R21T
R22T
R3T
HPS
r
R4T
g
u
v
a Compressor (M1C)
b Compressor (M2C)
c Heat exchanger
d Fan
e Fan motor (M1F, M2F)
f Accumulator
g Expansion valve, main (Y1E)
h Expansion valve, subcool heat exchanger (Y2E)
i Expansion valve, storage vessel (Y4E)
j Subcool heat exchanger
k Oil separator
l Solenoid valve, oil accumulator (Y2S)
m Solenoid valve, oil1 (Y3S)
n Solenoid valve, oil2 (Y4S)
o 4‑way valve, main (Y1S)
p 4‑way valve, sub (Y5S)
q Electrical component box
r Service port, refrigerant charge
s Stop valve, liquid
t Stop valve, gas
u Expansion valve, liquid cooling (Y3E)
v Service port
