16 | About the units and options
Installer and user reference guide
52
RXYTQ8~16U7YF
VRV IV+ heat pump for high ambient temperatures
4P561157-1A – 2020.10
16 About the units and options
In this chapter
16.1 Overview: About the units and options ................................................................................................................................. 52
16.2 Identification label: Outdoor unit........................................................................................................................................... 52
16.3 About the outdoor unit .......................................................................................................................................................... 53
16.4 System layout.......................................................................................................................................................................... 53
16.5 Combining units and options.................................................................................................................................................. 54
16.5.1 About combining units and options....................................................................................................................... 54
16.5.2 Possible combinations of indoor units................................................................................................................... 54
16.5.3 Possible combinations of outdoor units................................................................................................................ 54
16.5.4 Possible options for the outdoor unit.................................................................................................................... 55
16.1 Overview: About the units and options
This chapter contains information about:
▪ Identification of the outdoor unit
▪ Where the outdoor unit fits in the system layout
▪ With which indoor units and options you can combine the outdoor units
▪ Which outdoor units have to be used as standalone units, and which outdoor
units can be combined

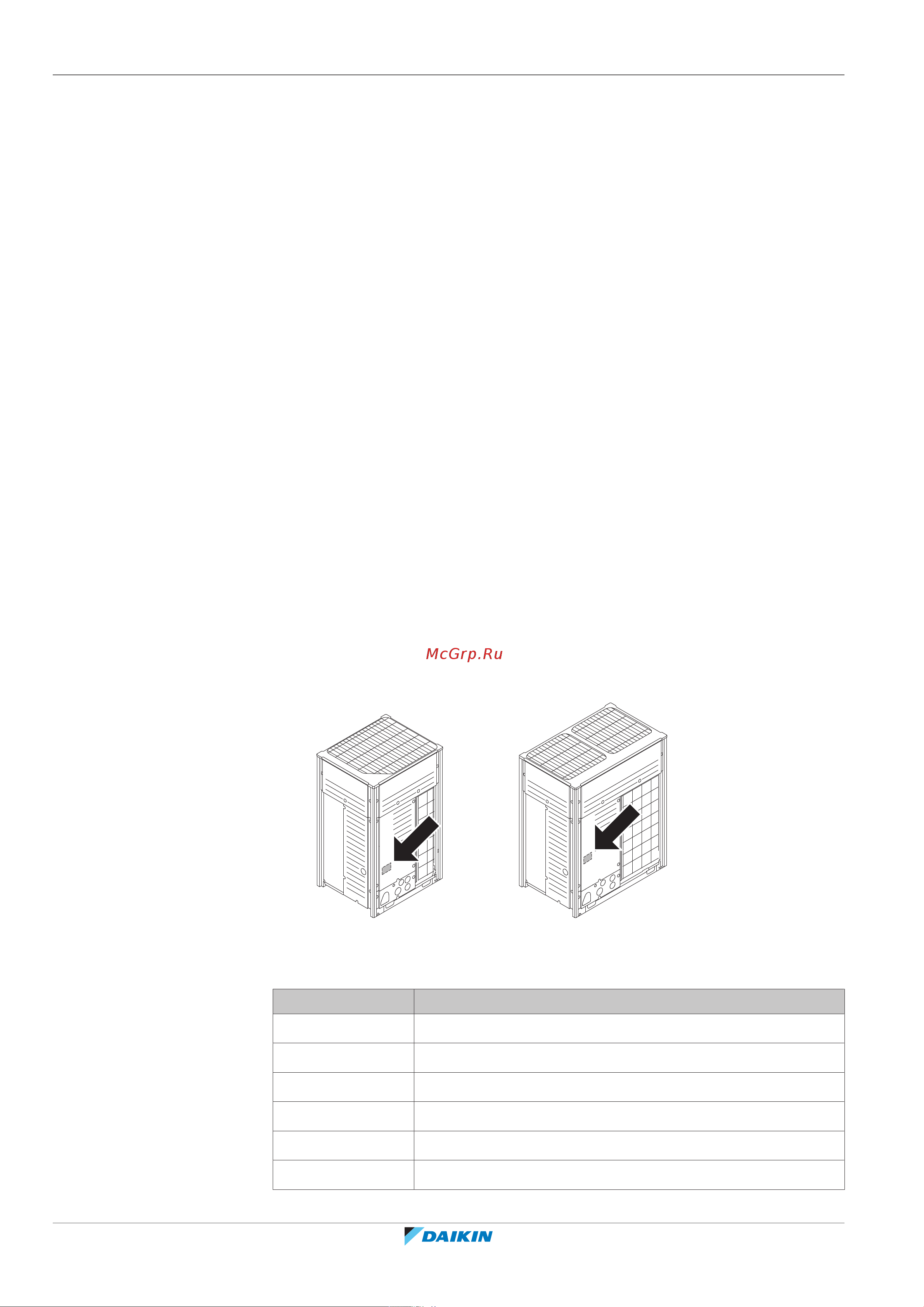

16.2 Identification label: Outdoor unit
Location
10~16 HP8 HP
Model identification
Example: R X Y T Q 8 U7 YF [*]
Code Explanation
R Outdoor air cooled
X X=Heat pump (no continuous heating)
Y Y=Pair module only
T High ambient (tropical) standard grade
Q Refrigerant R410A
8 Capacity class
