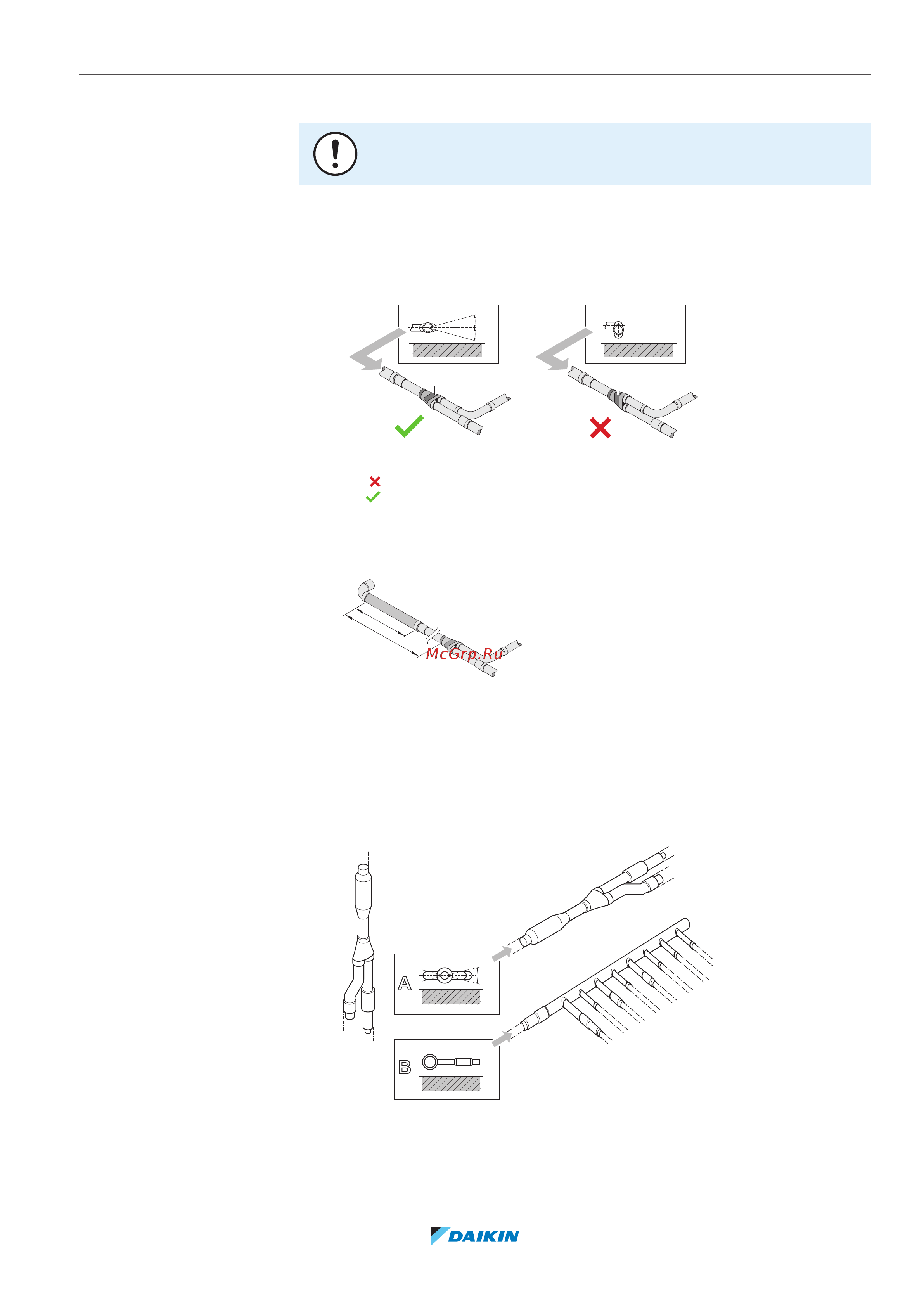

18.2.6 To connect the multi connection piping kit
NOTICE
Improper installation may lead to malfunction of the outdoor unit.
▪ Install the joints horizontally, so that the caution label (a) attached to the joint
comes to the top.
- Do not tilt the joint more than 7.5° (see view A).
- Do not install the joint vertically (see view B).
a
a
A B
7.5°
7.5°
a Caution label
NOT allowed
Allowed
▪ Make sure that the total length of the piping connected to the joint is absolute
straight for more than 500 mm. Only if a straight field piping of more than
120mm is connected, more than 500mm of straight section can be ensured.
>120 mm
>500 mm
18.2.7 To connect the refrigerant branching kit
For installation of the refrigerant branching kit, refer to the installation manual
delivered with the kit.
▪ Mount the refnet joint so that it branches either horizontally or vertically.
▪ Mount the refnet header so that it branches horizontally.
