Karcher IV 100/55 H B1 [14/282] Device elements

– 2

– This appliance is only meant for dry use

- it is not suitable for sucking in liquids

and other wet substances.

– The appliance is suited for the extrac-

tion of dry, combustible, harmful dusts

on machines and appliances in zone

22; dust class H and B1 according to

EN 60 335–2-69.

– This appliance is suitable for industrial

use.

– Any other use other than the specified

one will be treated as improper use of

the appliance.

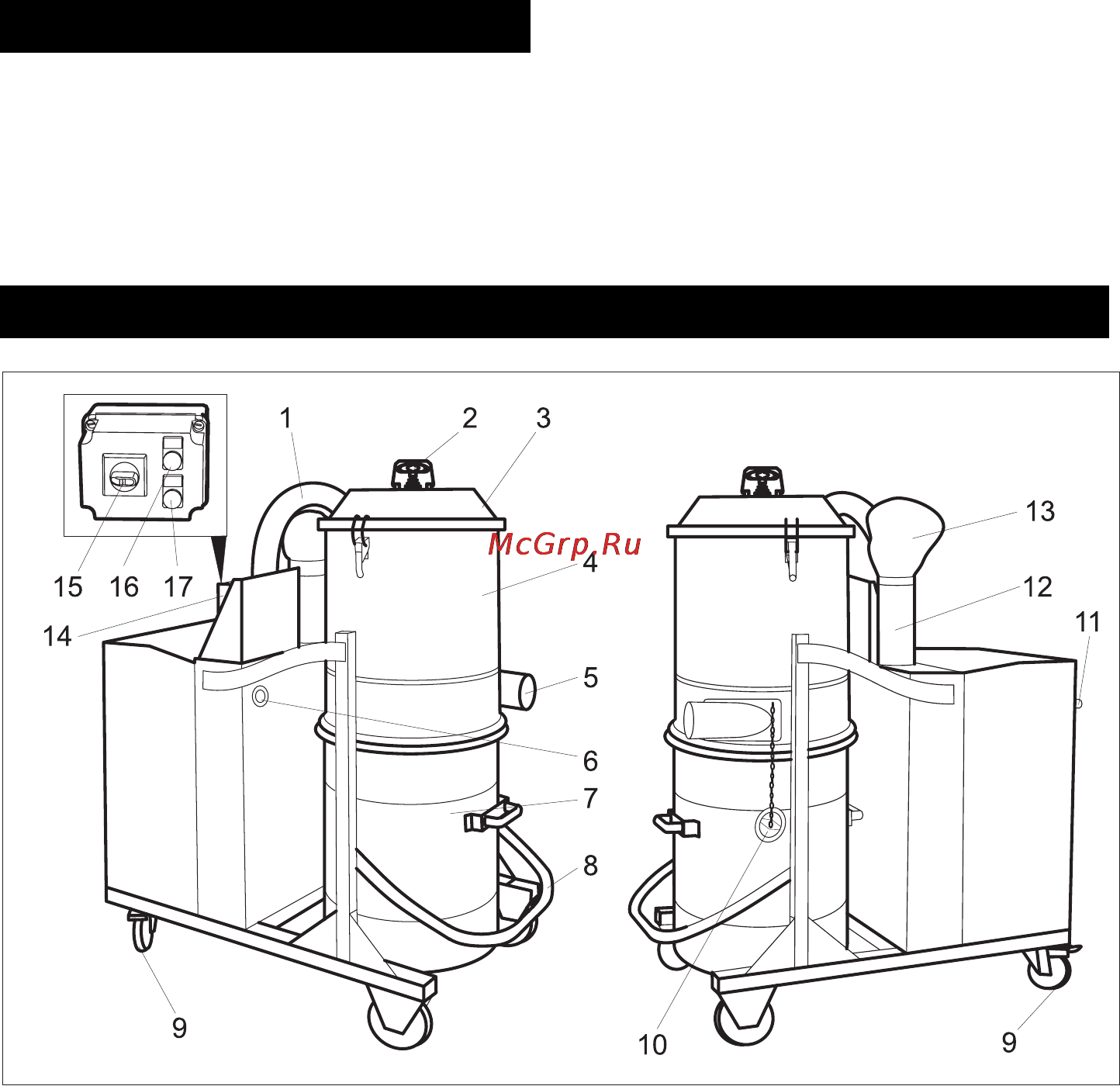

1 Hose to the suction turbine

2 Handle for filter cleaning

3 Lid of filter chamber

4 Filter chamber

5 Connection neck for accessories

6 Manometer

7 Container for vaccuming material

8 Lever for unlocking the vacuuming ma-

terial container

9 Guiding rolls with fixed position brake

10 Cap

11 Sliding handle

12 Silencer

13 Diffuser

14 Control board

15 ON/OFF switch

16 Indicator lamp "Wrong rotation direction"

17 Indicator lamp "Mains voltage present"
