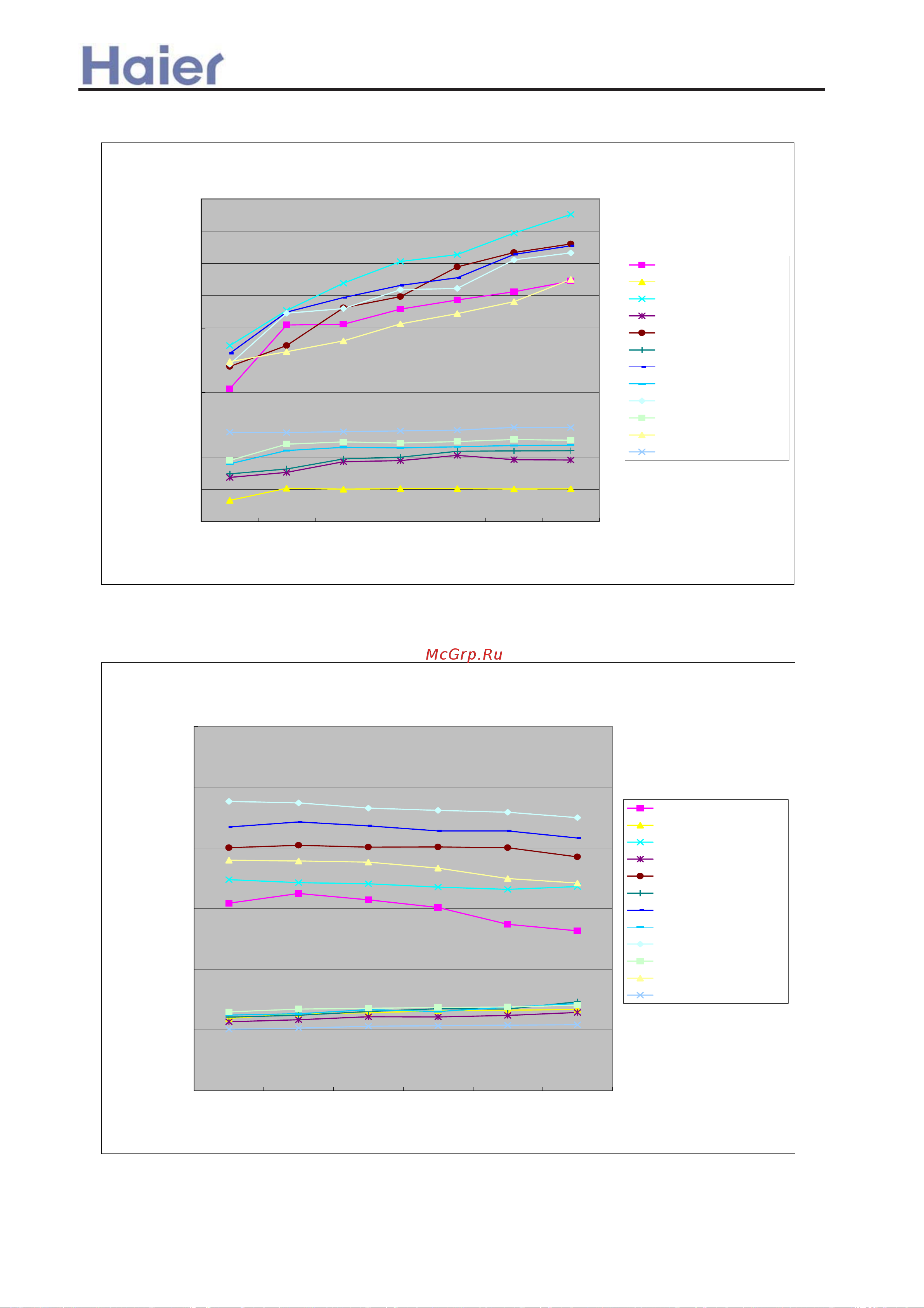

AD242ALERA Cooling performance curves
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
18/12 20/14.5 22/16 25/18 27/19 30/22 32/23
Indoor WB/DB
Cooling capacity(W)
10/6 cooling capacity
10/6 power input
21/15 cooling capacity
21/15 power input
25/18 cooling capacity
25/18 power input
32 cooling capacity
32 power input
35/24 cooling capacity
35/24 power input
43/26 cooling capacity
43/26 power input
AD242ALERA Heating performance curves
0
2000
4000
6000
8000
10000
12000
16/10 18/12 20/14.5 22/16 24/17 27/18
Indoor WB/DB
Indoor WB/DB
-5/-6 heating capacity
-5/-6 power input
2/1.5 heating capacity
2/1.5 power input
7/6 heating capacity
7/6 power input
10/6 heating capacity
10/6 power input
21/15 heating capacity
21/15 power input
24/18 heating capacity
24/18 power input
Performance Curves
