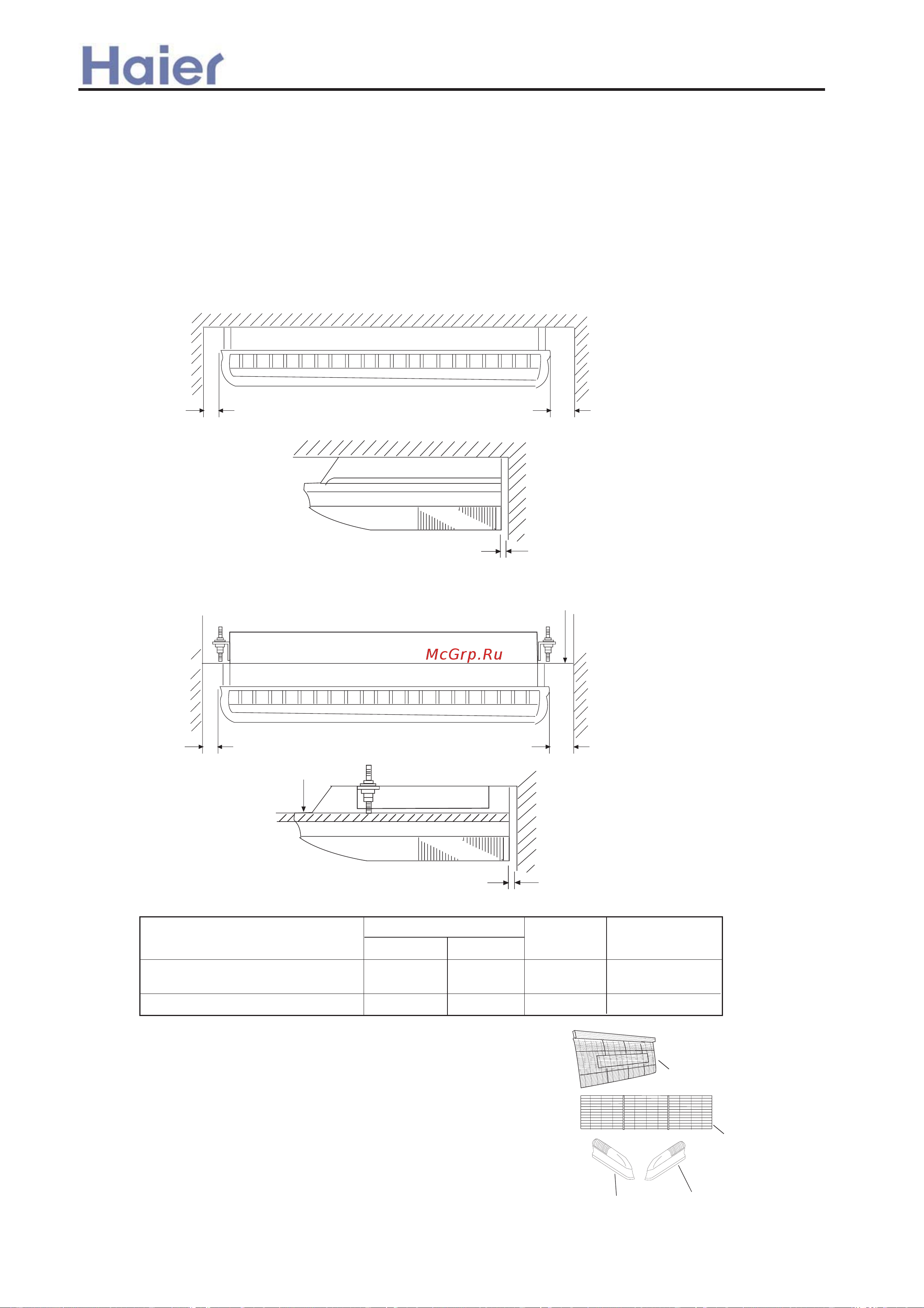

Haier AC122ACERA [94/408] Installation
![Haier AU362ALEAA [94/408] Installation](/views2/1807985/page94/bg5e.png)
(1) Install the indoor unit level on a strong wall which is not subject to vibration.
(2) The inlet and outlet ports should not be obstructed : the air should be able to blow all over the room.
(3) Do not install the unit where it will be exposed to direct sunlight ,
(6) Take servicing , etc.into consideration and leave the spaces shown in (Fig.1 or 2) .
Also install the unit where the filter can be removed .
(4) Install the unit where connection to the outdoor unit is easy.
(5) Install the unit where the drain pipe can be easily installed.
0.4"(10mm)
over
For mounted on the ceiling:
Ceiling
INDOOR UNIT
3"(80mm)
over
6"(150mm)
over
Fig. 1
For half concealed installation:
3"(80mm)
over
6"(150mm)
over
Ceiling panel
Fig. 2
INDOOR UNIT
0.4"(10mm)
over
Ceiling panel
INSTALLATION PROCEDURE
Install the room air conditioner as follows:
CONNECTION PIPE REQUIREMENT
1) REMOVE THE INTAKE GRILL AND SIDE COVER
(1) Remove the two Air filters
(2) Remove the two intake grilles
(3) Remove the Side cover A (Right and left side)
(4) This air conditioner can be set up to intake fresh air .
Side cover A (Right side)
Side cover A (Left side)
Intake grille
Air filter
?K CD H
:GAIDODM
>GLPGC NGCD =AN NGCD
?ARGIPI
HDJEOF
?ARGIPI FDGEFO
+BDOQDDJ GJCKKM
AJC KPOCKKM,
7.41 II 07./4II
4/ I
2/ I
7.41 II 04.66II
2/ I
1/ I
<KM NDMGDN 89361-895/1 AJC
892518<;88
<KM NDMGDN 161 AJC 892518<;@8
Installation
-84-
