Haier AC122ACERA [58/408] Convertible type
![Haier AB482AEEAA [58/408] Convertible type](/views2/1807985/page58/bg3a.png)
Ultra-thin unit body, only thick 199 mm
The convertible indoor unit adopts a double drain pan design, the unit body is very thin, only 199 mm.
It is beautiful and elegant and the most important-space saving (for model 12, 18, 24).

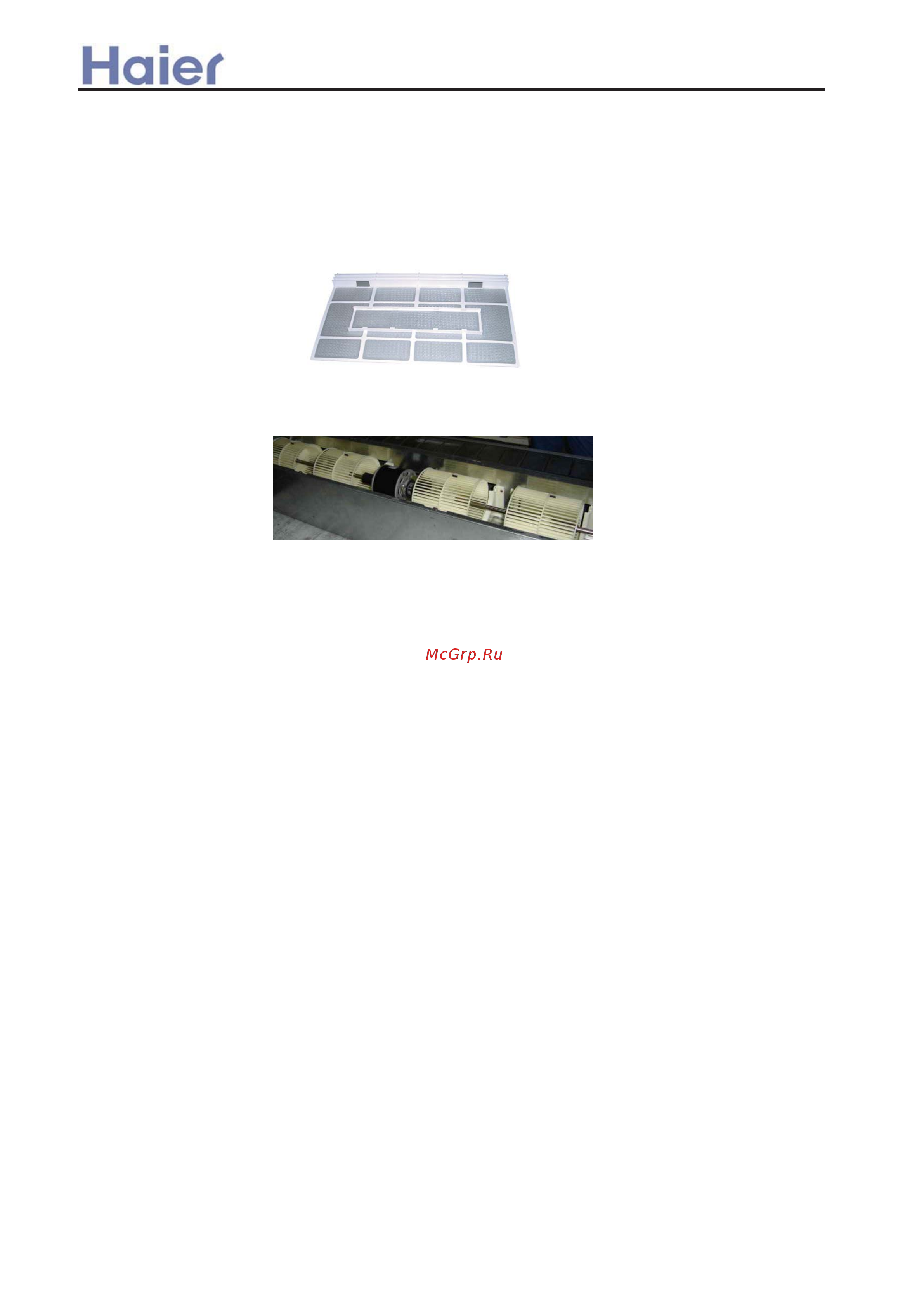

Long-life and high efficiency air purify filter
The units adopts high efficiency air purify filter, greatly improve the room air quality; at the same time,
the filter is with the pulling hole, can be easily taken down and cleaned.
Particular drive deviceWith single fan motor, the fans connect with motoraxis by the flexible gimbal so
that the ratio of damageable parts can be reduced, and the noise level down to 47dB.
Variable control mode
Standard control method: Infrared controller YR-H71 for AC12~24 and YR-H50 for AC28~60.
Optional control method:
a. Wired&Group controller: YR-E12 which can control at most 16 indoor units and operate them
synchronously, all the indoor units work in the same state(working mode, set temperature, fan
speed and etc.), thus it makes a easy management.
Central Controller:YCZ-A001 which can control at most 128 indoor units, all the indoor units
work in the different modes.
b.
Convertible type
-52-
