Performance Curves
-216-

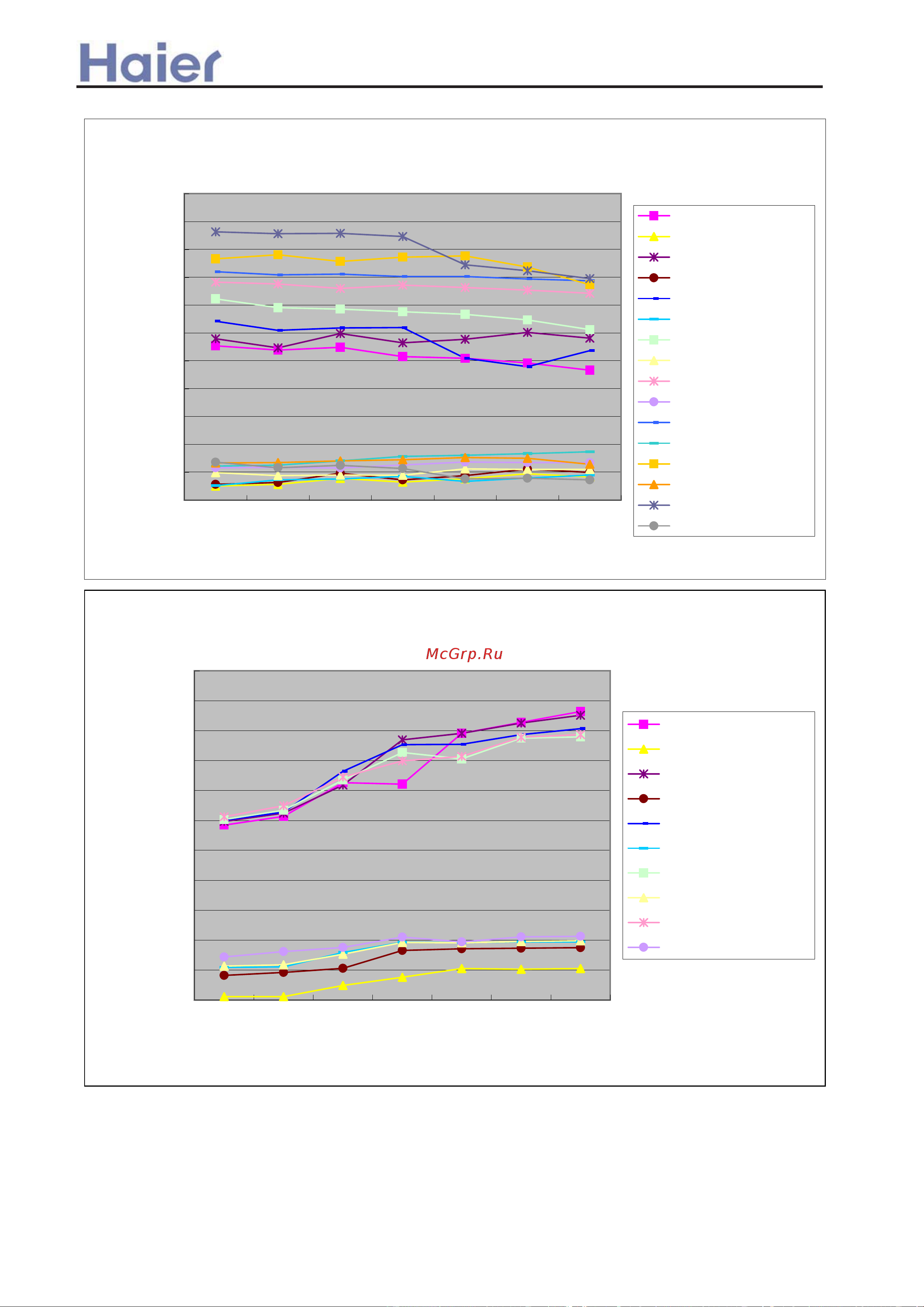

heating performance curves-AB362AEERA/AU362AHERA
2500
3500
4500
5500
6500
7500
8500
9500
10500
11500
12500
13500
16/10 18/12 20/14.5 21/15 22/16 24/17 26/18
indoor temp.
heating capacity and power input (W)
-6/-7 heating capacity
-6/-7 power input
-4/-5 heating capacity
-4/-5 power input
-1/-2 heating capacity
-1/-2 power input
1/0 heating capacity
1/0 power input
6/5 heating capacity
6/5 power input
7/6 heating capacity
7/6 power input
12/10 heating capacity
12/10 power input
16/15 heating capacity
16/15 power input
cooling performance curves-AB362AEERA/AU362AHERA
2000
3000
4000
5000
6000
7000
8000
9000
10000
11000
12000
13000
12/18 14/20 16/22 18/25 19/27 22/30 24/32
indoor temp.
cooling capacity and power input (W)
20 cooling capacity
20 power input
25 cooling capacity
25 power input
32 cooling capacity
32 power input
35 cooling capacity
35 power input
40 cooling capacity
40 power input
