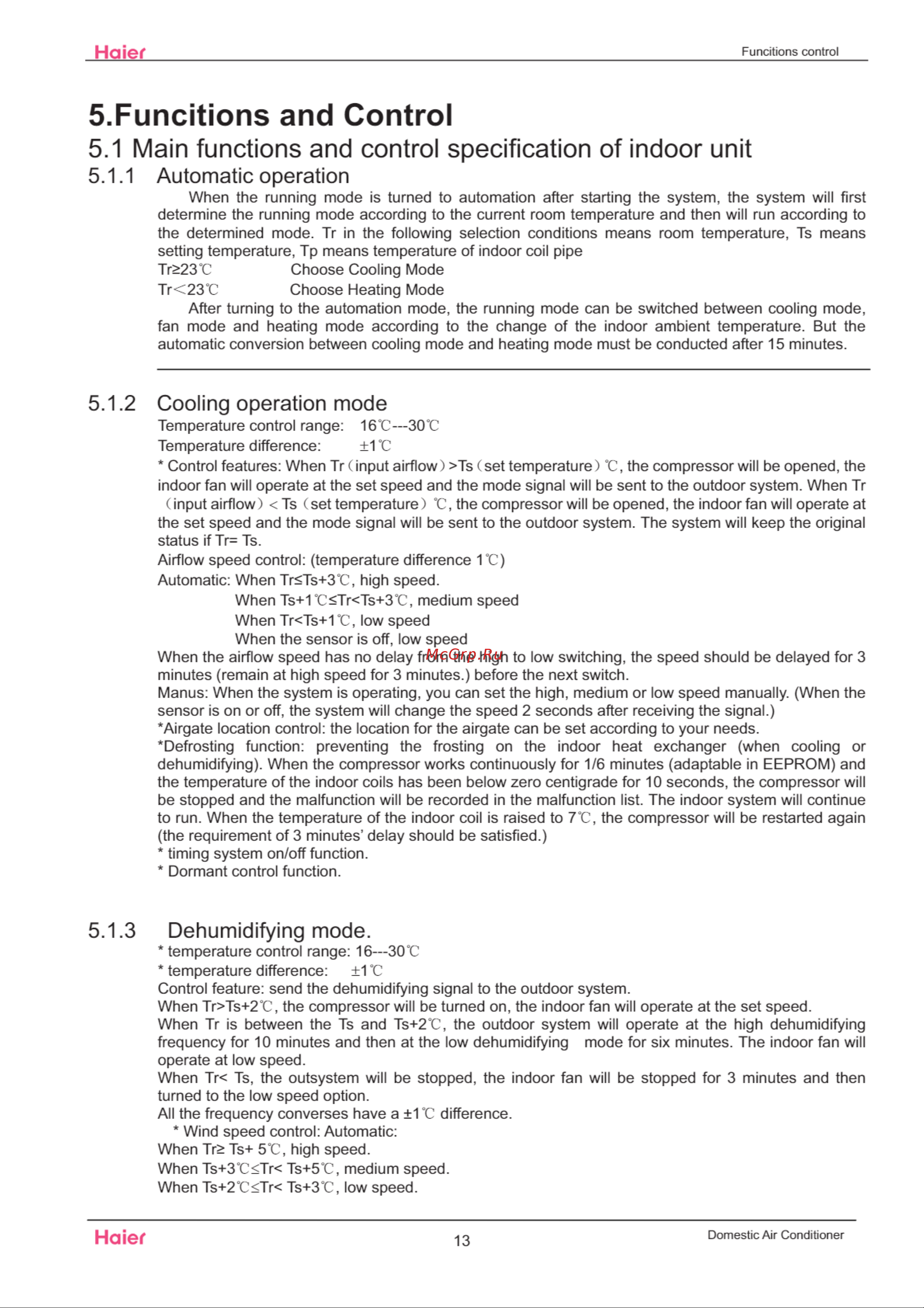

Haier Funcitions control 5 Funcitions and Control 5 1 Main functions and control specification of indoor unit 5 1 1 Automatic operation When the running mode is turned to automation after starting the system the system will first determine the running mode according to the current room temperature and then will run according to the determined mode Tr in the following selection conditions means room temperature Ts means setting temperature Tp means temperature of indoor coil pipe Choose Cooling Mode Tr 23 C Tr 23 C Choose Heating Mode After turning to the automation mode the running mode can be switched between cooling mode fan mode and heating mode according to the change of the indoor ambient temperature But the automatic conversion between cooling mode and heating mode must be conducted after 15 minutes 5 1 2 Cooling operation mode Temperature control range 16 C 30 C Temperature difference 1 C Control features When Tr input airflow Ts set temperature C the compressor will be opened the indoor fan will operate at the set speed and the mode signal will be sent to the outdoor system When Tr input airflow Ts set temperature C the compressor will be opened the indoor fan will operate at the set speed and the mode signal will be sent to the outdoor system The system will keep the original status if Tr Ts Airflow speed control temperature difference 1 C Automatic When Tr Ts 3 C high speed When Ts 1 C Tr Ts 3 C medium speed When Tr Ts 1 C low speed When the sensor is off low speed When the airflow speed has no delay from the high to low switching the speed should be delayed for 3 minutes remain at high speed for 3 minutes before the next switch Manus When the system is operating you can set the high medium or low speed manually When the sensor is on or off the system will change the speed 2 seconds after receiving the signal Airgate location control the location for the airgate can be set according to your needs Defrosting function preventing the frosting on the indoor heat exchanger when cooling or dehumidifying When the compressor works continuously for 1 6 minutes adaptable in EEPROM and the temperature of the indoor coils has been below zero centigrade for 10 seconds the compressor will be stopped and the malfunction will be recorded in the malfunction list The indoor system will continue to run When the temperature of the indoor coil is raised to 7 C the compressor will be restarted again the requirement of 3 minutes delay should be satisfied timing system on off function Dormant control function 5 1 3 Dehumidifying mode temperature control range 16 30 C temperature difference 1 C Control feature send the dehumidifying signal to the outdoor system When Tr Ts 2 C the compressor will be turned on the indoor fan will operate at the set speed When Tr is between the Ts and Ts 2 C the outdoor system will operate at the high dehumidifying frequency for 10 minutes and then at the low dehumidifying mode for six minutes The indoor fan will operate at low speed When Tr Ts the outsystem will be stopped the indoor fan will be stopped for 3 minutes and then turned to the low speed option All the frequency converses have a 1 C difference Wind speed control Automatic When TrS Ts 5 C high speed When Ts 3 C Tr Ts 5 C medium speed When Ts 2 C Tr Ts 3 C low speed Haier 13 Domestic Air Conditioner
