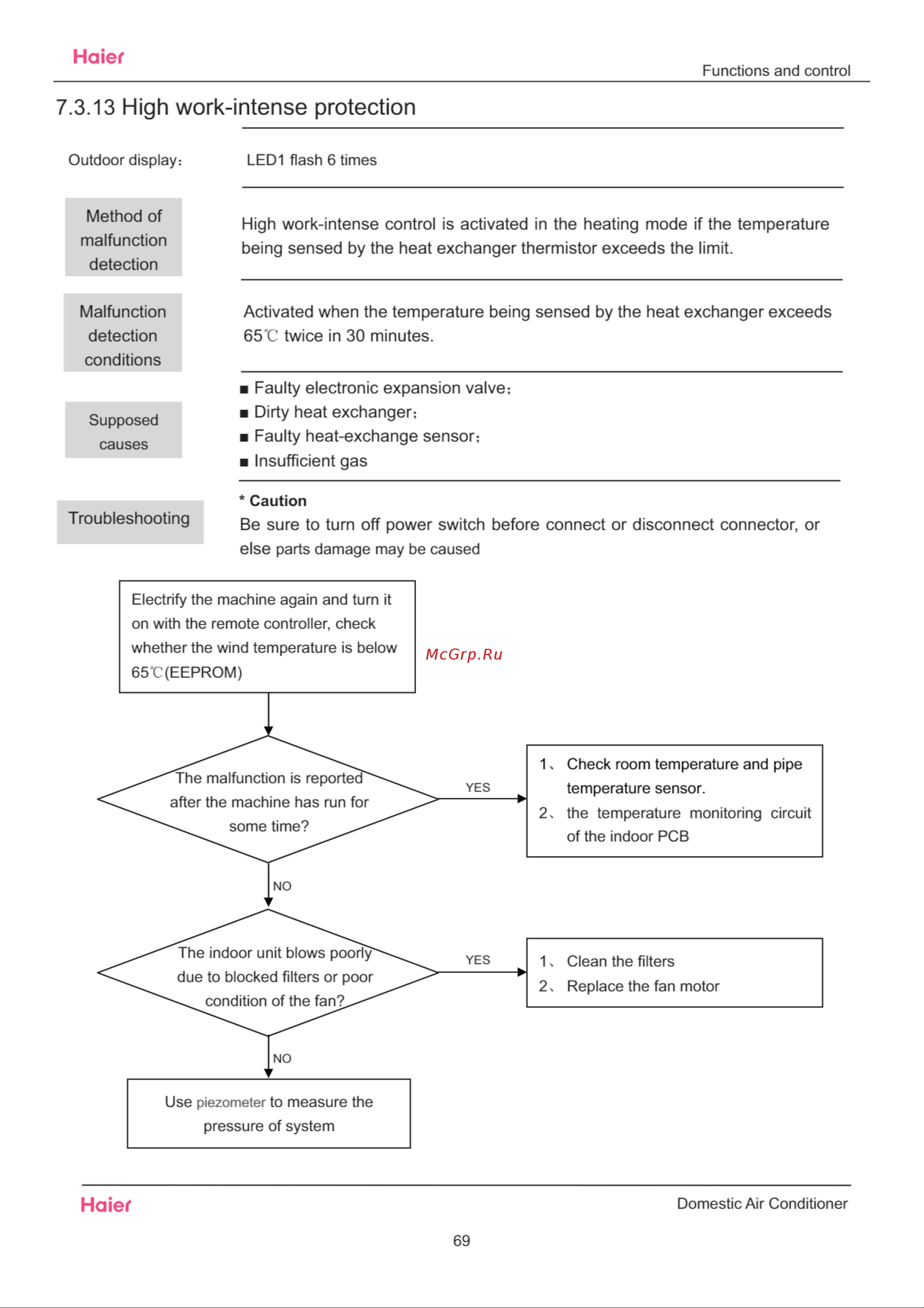

Haier Functions and control 7 3 13 High work intense protection Outdoor display Method of malfunction LED1 flash 6 times High work intense control is activated in the heating mode if the temperature being sensed by the heat exchanger thermistor exceeds the limit detection Malfunction detection Activated when the temperature being sensed by the heat exchanger exceeds 65 C twice in 30 minutes conditions Faulty electronic expansion valve Supposed causes Dirty heat exchanger Faulty heat exchange sensor Insufficient gas Caution Troubleshooting Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 69
