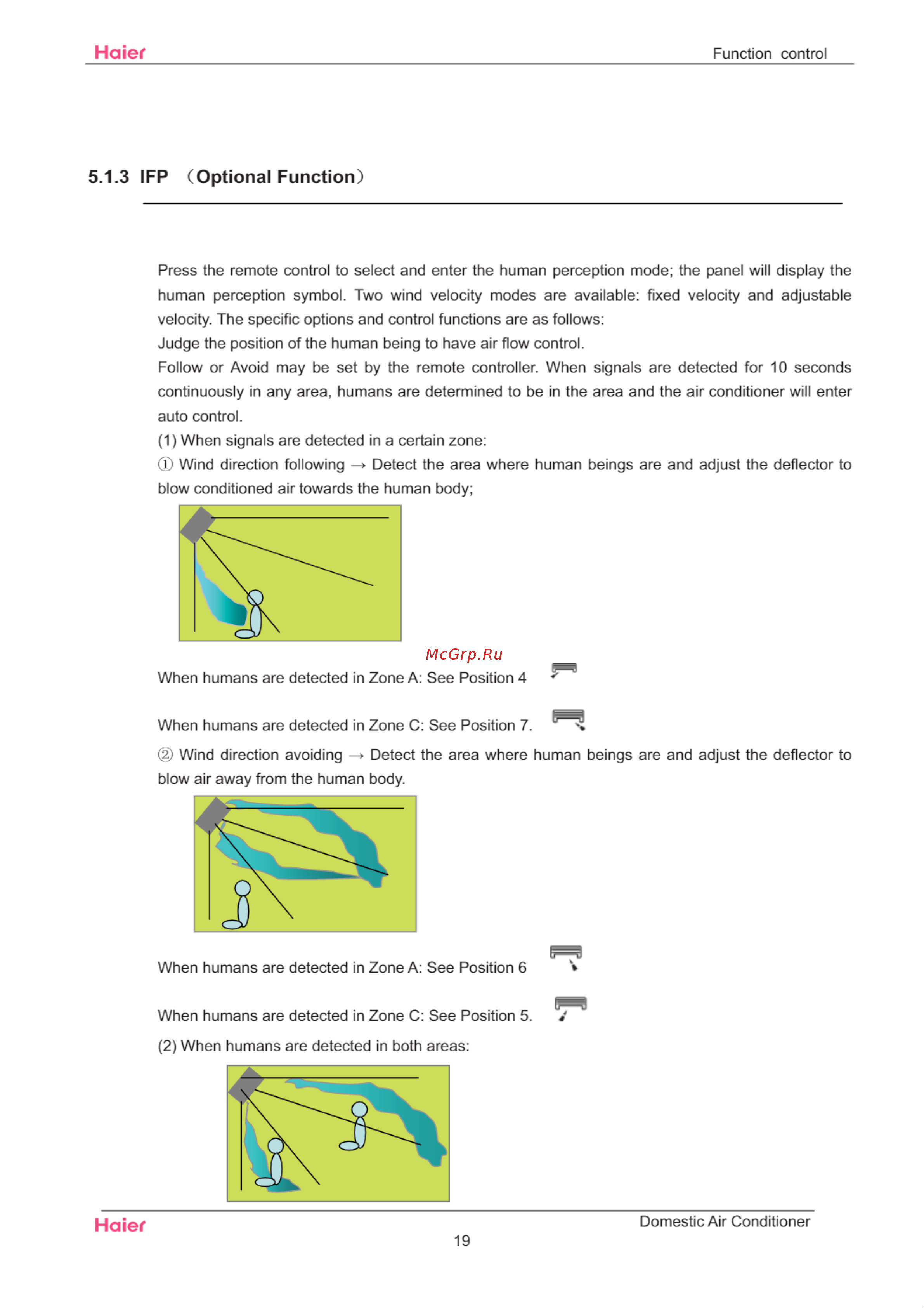

Haier Function control 5 1 3 IFP Optional Function Press the remote control to select and enter the human perception mode the panel will display the human perception symbol Two wind velocity modes are available fixed velocity and adjustable velocity The specific options and control functions are as follows Judge the position of the human being to have air flow control Follow or Avoid may be set by the remote controller When signals are detected for 10 seconds continuously in any area humans are determined to be in the area and the air conditioner will enter auto control 1 When signals are detected in a certain zone D Wind direction following Detect the area where human beings are and adjust the deflector to blow conditioned air towards the human body When humans are detected in Zone A See Position 4 When humans are detected in Zone C See Position 7 Wind direction avoiding Detect the area where human beings are and adjust the deflector to blow air away from the human body When humans are detected in Zone A See Position 6 When humans are detected in Zone C See Position 5 2 When humans are detected in both areas Haief Domestic Air Conditioner 19
