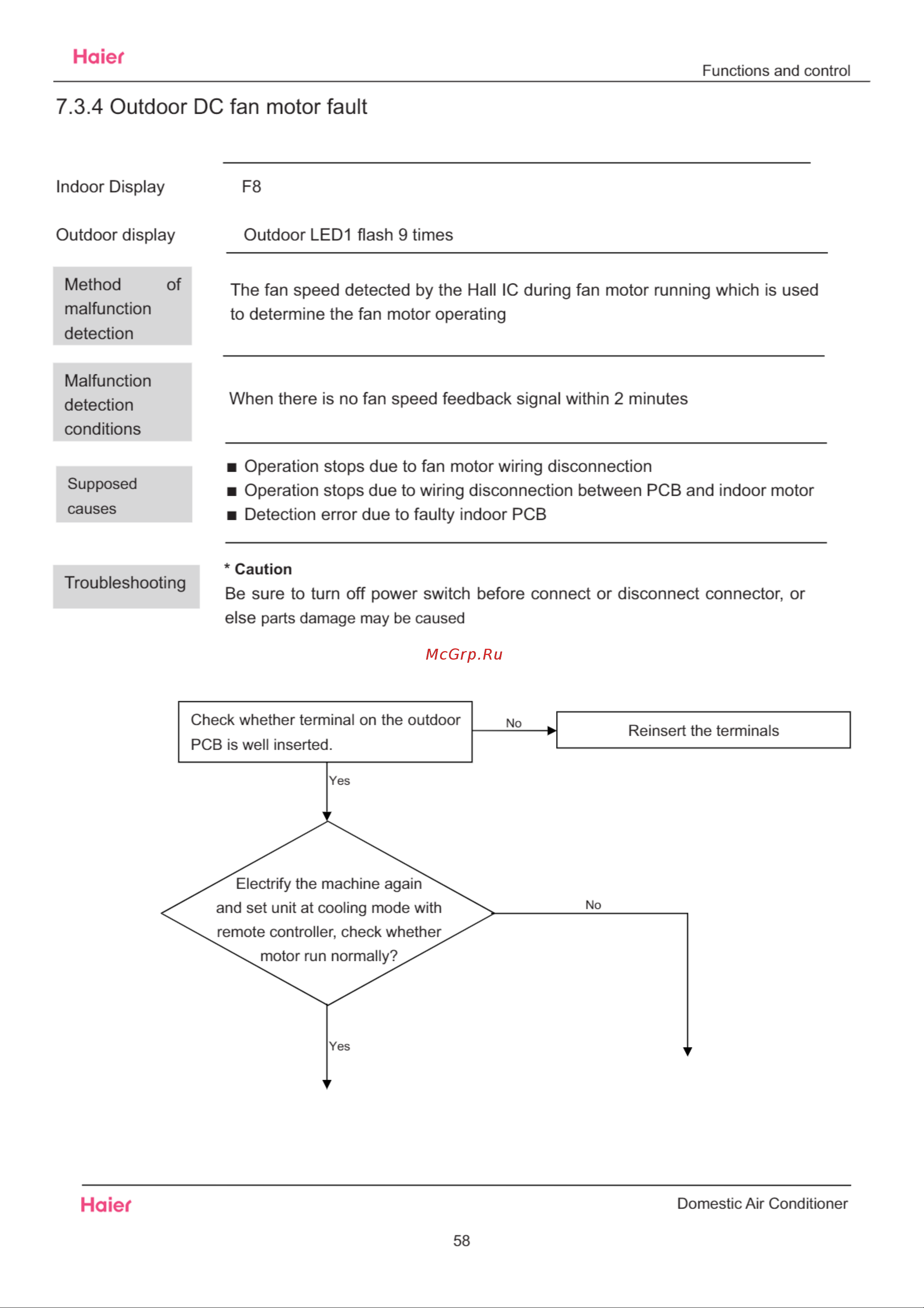

Haiei Functions and control 7 3 4 Outdoor DC fan motor fault Indoor Display F8 Outdoor display Outdoor LED1 flash 9 times Method of The fan speed detected by the Hall IC during fan motor running which is used malfunction to determine the fan motor operating detection Malfunction detection When there is no fan speed feedback signal within 2 minutes conditions Operation stops due to fan motor wiring disconnection Supposed Operation stops due to wiring disconnection between PCB and indoor motor causes Detection error due to faulty indoor PCB Troubleshooting Caution Be sure to turn off power switch before connect or disconnect connector or else parts damage may be caused Haier Domestic Air Conditioner 58
