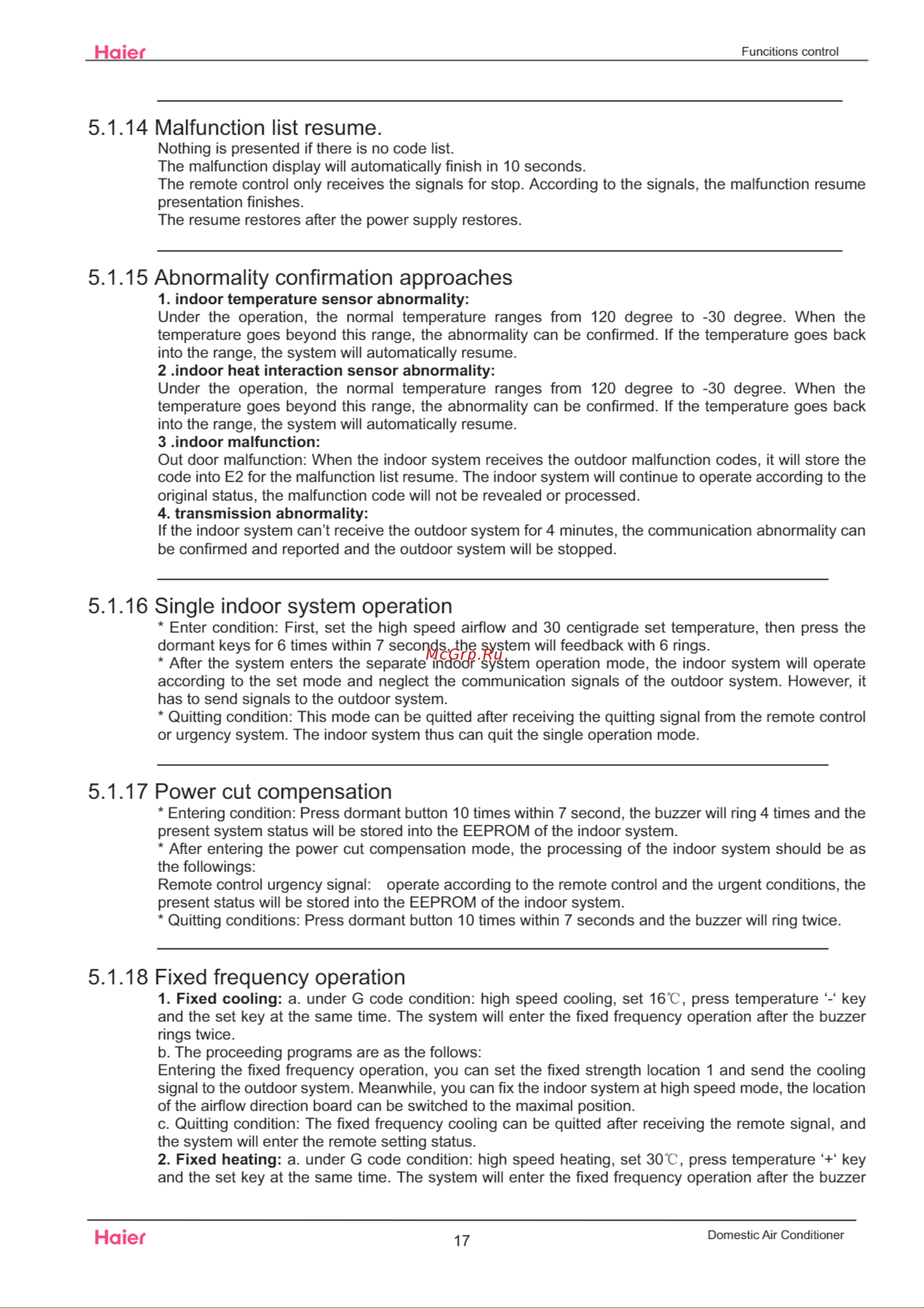

Haier Funcitions control 5 1 14 Malfunction list resume Nothing is presented if there is no code list The malfunction display will automatically finish in 10 seconds The remote control only receives the signals for stop According to the signals the malfunction resume presentation finishes The resume restores after the power supply restores 5 1 15 Abnormality confirmation approaches 1 indoor temperature sensor abnormality Under the operation the normal temperature ranges from 120 degree to 30 degree When the temperature goes beyond this range the abnormality can be confirmed If the temperature goes back into the range the system will automatically resume 2 indoor heat interaction sensor abnormality Under the operation the normal temperature ranges from 120 degree to 30 degree When the temperature goes beyond this range the abnormality can be confirmed If the temperature goes back into the range the system will automatically resume 3 indoor malfunction Out door malfunction When the indoor system receives the outdoor malfunction codes it will store the code into E2 for the malfunction list resume The indoor system will continue to operate according to the original status the malfunction code will not be revealed or processed 4 transmission abnormality If the indoor system can t receive the outdoor system for 4 minutes the communication abnormality can be confirmed and reported and the outdoor system will be stopped 5 1 16 Single indoor system operation Enter condition First set the high speed airflow and 30 centigrade set temperature then press the dormant keys for 6 times within 7 seconds the system will feedback with 6 rings After the system enters the separate indoor system operation mode the indoor system will operate according to the set mode and neglect the communication signals of the outdoor system However it has to send signals to the outdoor system Quitting condition This mode can be quitted after receiving the quitting signal from the remote control or urgency system The indoor system thus can quit the single operation mode 5 1 17 Power cut compensation Entering condition Press dormant button 10 times within 7 second the buzzer will ring 4 times and the present system status will be stored into the EEPROM of the indoor system After entering the power cut compensation mode the processing of the indoor system should be as the followings Remote control urgency signal operate according to the remote control and the urgent conditions the present status will be stored into the EEPROM of the indoor system Quitting conditions Press dormant button 10 times within 7 seconds and the buzzer will ring twice 5 1 18 Fixed frequency operation 1 Fixed cooling a under G code condition high speed cooling set 16 C press temperature key and the set key at the same time The system will enter the fixed frequency operation after the buzzer rings twice b The proceeding programs are as the follows Entering the fixed frequency operation you can set the fixed strength location 1 and send the cooling signal to the outdoor system Meanwhile you can fix the indoor system at high speed mode the location of the airflow direction board can be switched to the maximal position c Quitting condition The fixed frequency cooling can be quitted after receiving the remote signal and the system will enter the remote setting status 2 Fixed heating a under G code condition high speed heating set 30 C press temperature key and the set key at the same time The system will enter the fixed frequency operation after the buzzer Haier 17 Domestic Air Conditioner
