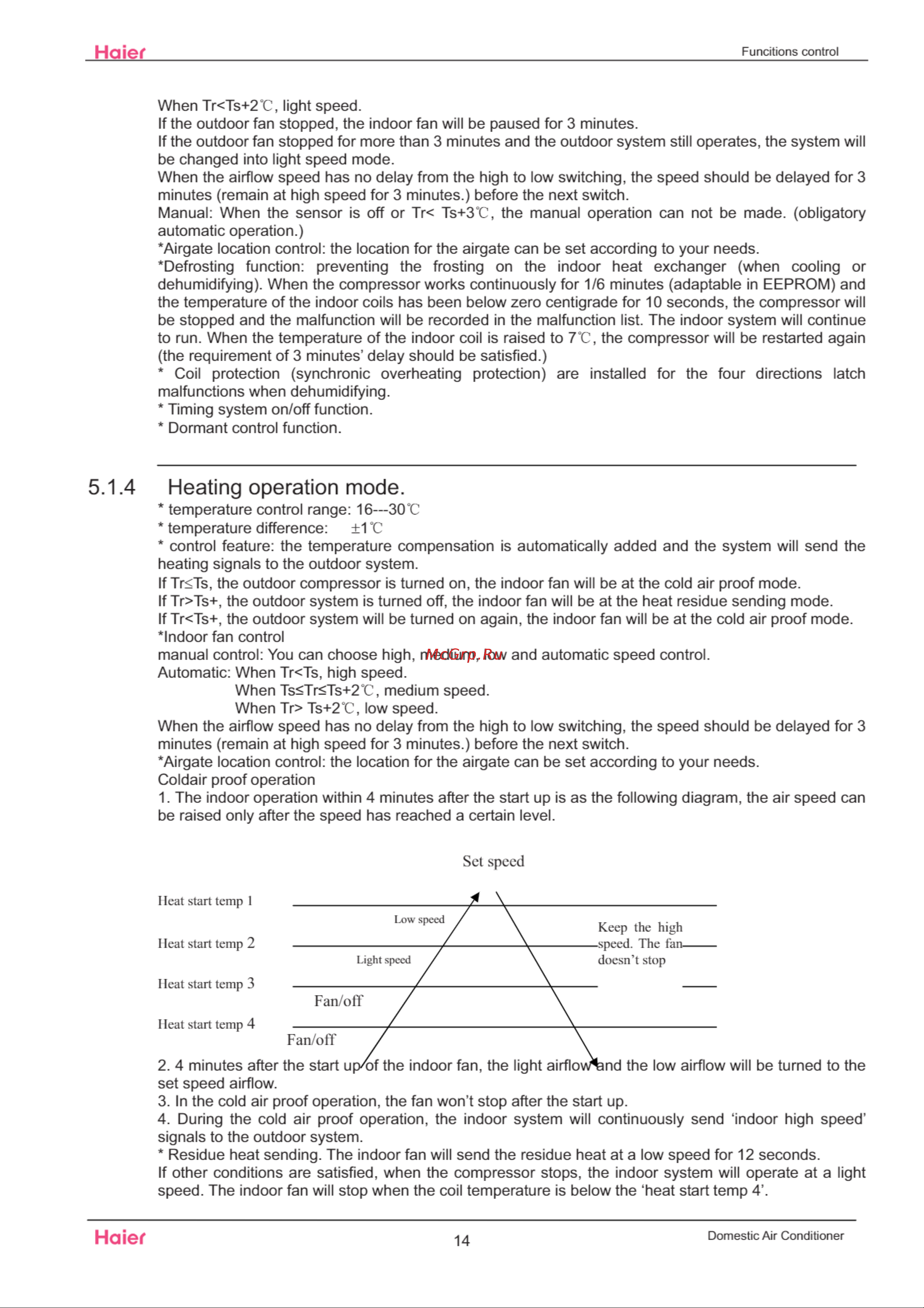

Haier Funcitions control When Tr Ts 2 C light speed If the outdoor fan stopped the indoor fan will be paused for 3 minutes If the outdoor fan stopped for more than 3 minutes and the outdoor system still operates the system will be changed into light speed mode When the airflow speed has no delay from the high to low switching the speed should be delayed for 3 minutes remain at high speed for 3 minutes before the next switch Manual When the sensor is off or Tr Ts 3 C the manual operation can not be made obligatory automatic operation Airgate location control the location for the airgate can be set according to your needs Defrosting function preventing the frosting on the indoor heat exchanger when cooling or dehumidifying When the compressor works continuously for 1 6 minutes adaptable in EEPROM and the temperature of the indoor coils has been below zero centigrade for 10 seconds the compressor will be stopped and the malfunction will be recorded in the malfunction list The indoor system will continue to run When the temperature of the indoor coil is raised to 7 C the compressor will be restarted again the requirement of 3 minutes delay should be satisfied Coil protection synchronic overheating protection are installed for the four directions latch malfunctions when dehumidifying Timing system on off function Dormant control function 5 1 4 Heating operation mode temperature control range 16 30 C temperature difference 1 C control feature the temperature compensation is automatically added and the system will send the heating signals to the outdoor system If Tr Ts the outdoor compressor is turned on the indoor fan will be at the cold air proof mode If Tr Ts the outdoor system is turned off the indoor fan will be at the heat residue sending mode If Tr Ts the outdoor system will be turned on again the indoor fan will be at the cold air proof mode Indoor fan control manual control You can choose high medium low and automatic speed control Automatic When Tr Ts high speed When Ts Tr Ts 2 C medium speed When Tr Ts 2 C low speed When the airflow speed has no delay from the high to low switching the speed should be delayed for 3 minutes remain at high speed for 3 minutes before the next switch Airgate location control the location for the airgate can be set according to your needs Coldair proof operation 1 The indoor operation within 4 minutes after the start up is as the following diagram the air speed can be raised only after the speed has reached a certain level 3 In the cold air proof operation the fan won t stop after the start up 4 During the cold air proof operation the indoor system will continuously send indoor high speed signals to the outdoor system Residue heat sending The indoor fan will send the residue heat at a low speed for 12 seconds If other conditions are satisfied when the compressor stops the indoor system will operate at a light speed The indoor fan will stop when the coil temperature is below the heat start temp 4 Haier 14 Domestic Air Conditioner
