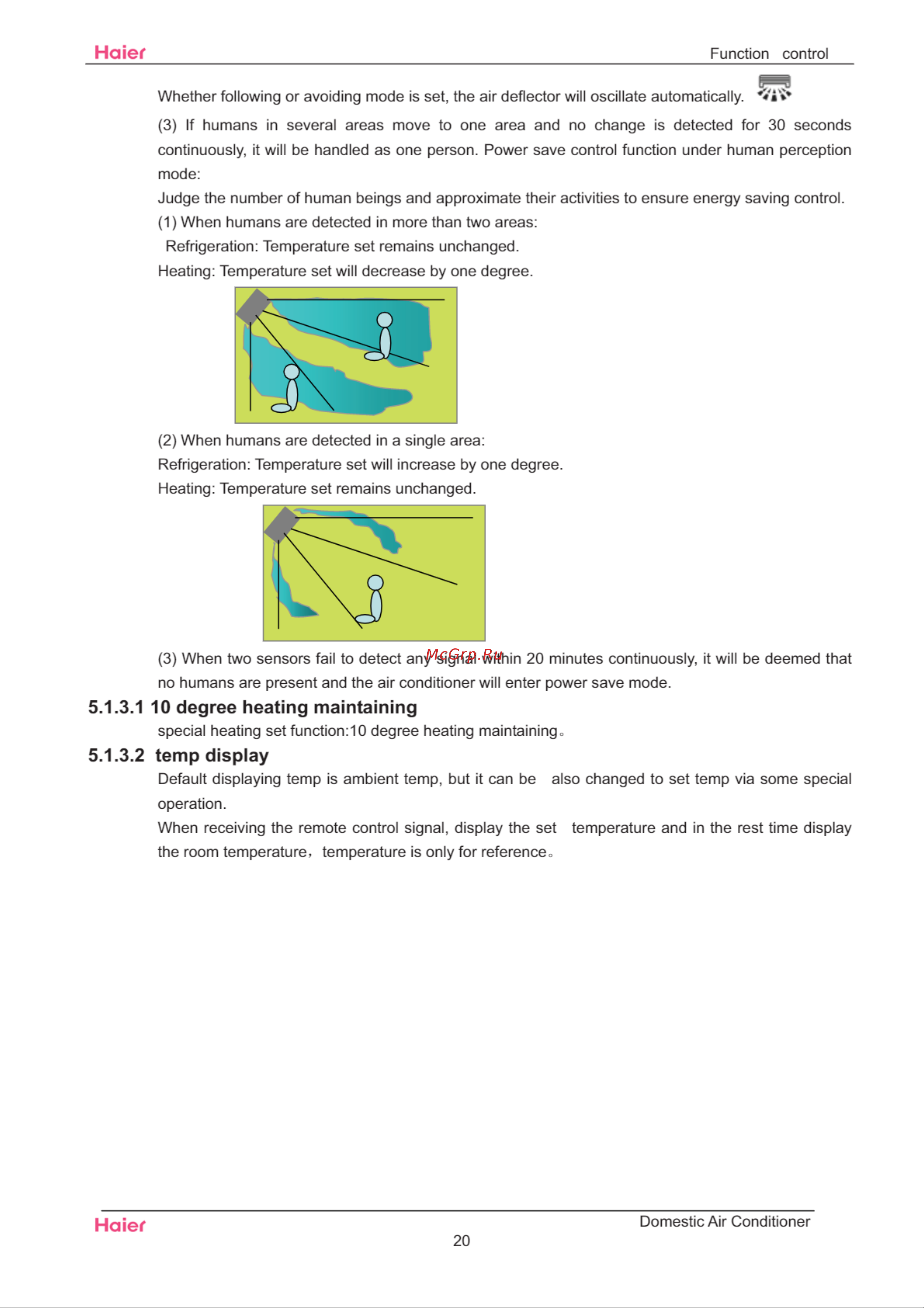

Haier Function control Whether following or avoiding mode is set the air deflector will oscillate automatically 3 If humans in several areas move to one area and no change is detected for 30 seconds continuously it will be handled as one person Power save control function under human perception mode Judge the number of human beings and approximate their activities to ensure energy saving control 1 When humans are detected in more than two areas Refrigeration Temperature set remains unchanged Heating Temperature set will decrease by one degree 2 When humans are detected in a single area Refrigeration Temperature set will increase by one degree Heating Temperature set remains unchanged 3 When two sensors fail to detect any signal within 20 minutes continuously it will be deemed that no humans are present and the air conditioner will enter power save mode 5 1 3 1 10 degree heating maintaining special heating set function 10 degree heating maintaining 5 1 3 2 temp display Default displaying temp is ambient temp but it can be also changed to set temp via some special operation When receiving the remote control signal display the set temperature and in the rest time display the room temperature temperature is only for referenceo Haier Domestic Air Conditioner 20
