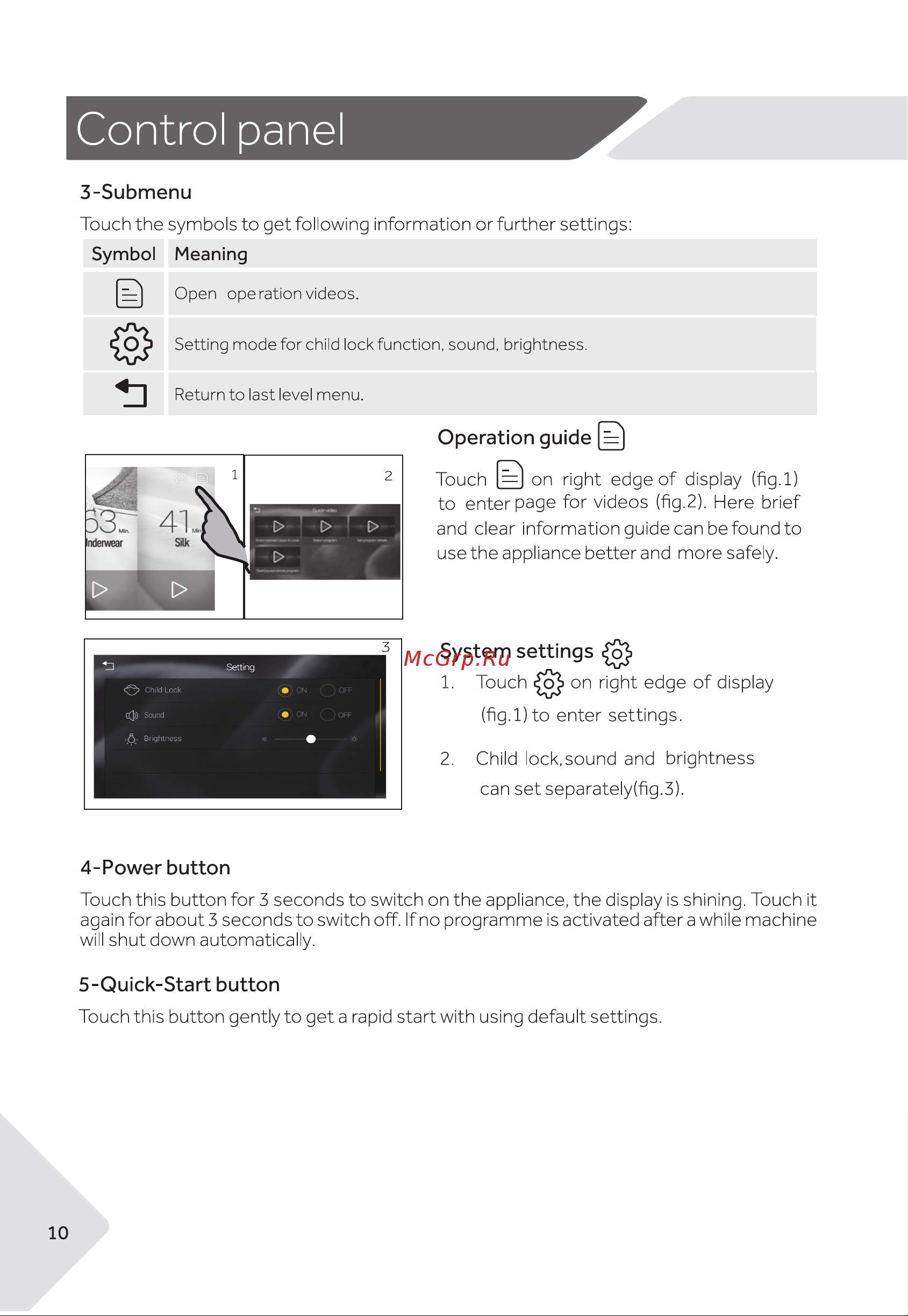

Control panel 3 Submenu Touch the symbols to get following information or further settings Symbol Meaning Open operation videos Setting mode for child lock function sound brightness Return to last level menu Operation guide Touch on right edge of display fig l to enter page for videos fig 2 Here brief and clear information guide can be found to use the appliance better and more safely System settings o 1 Touch on right edge of display fig l to enter settings 2 Child lock sound and brightness can setseparately fig 3 4 Power button Touch this button for 3 seconds to switch on the appliance the display is shining Touch it again for about 3 seconds to switch off If no programme is activated after a while machine will shut down automatically 5 Quick Start button Touch this button gently to get a rapid start with using default settings 10
