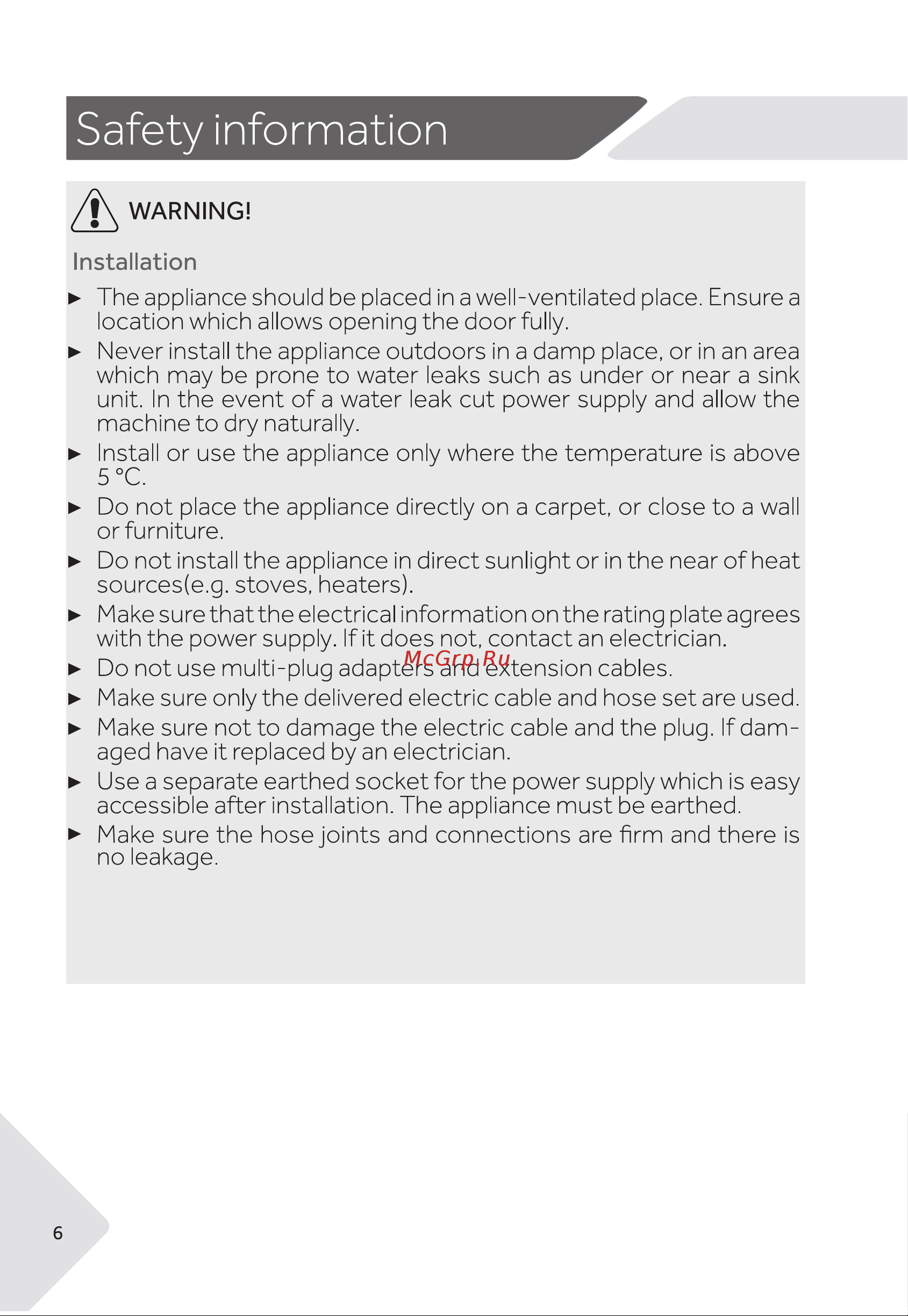

Safety information j WARNING Installation The appliance should be placed in a well ventilated place Ensure a location which allows opening the door fully Never install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit In the event of a water leak cut power supply and allow the machine to dry naturally Install or use the appliance only where the temperature is above 5 C Do not place the appliance directly on a carpet or close to a wall or furniture Do not install the appliance in direct sunlight or in the near of heat sources e g stoves heaters Make sure that the electrical information on the rating plate agrees with the power supply If it does not contact an electrician Do not use multi plug adapters and extension cables Make sure only the delivered electric cable and hose set are used Make sure not to damage the electric cable and the plug If dam aged have it replaced by an electrician Use a separate earthed socket for the power supply which is easy accessible after installation The appliance must be earthed Make sure the hose joints and connections are firm and there is no leakage 6
