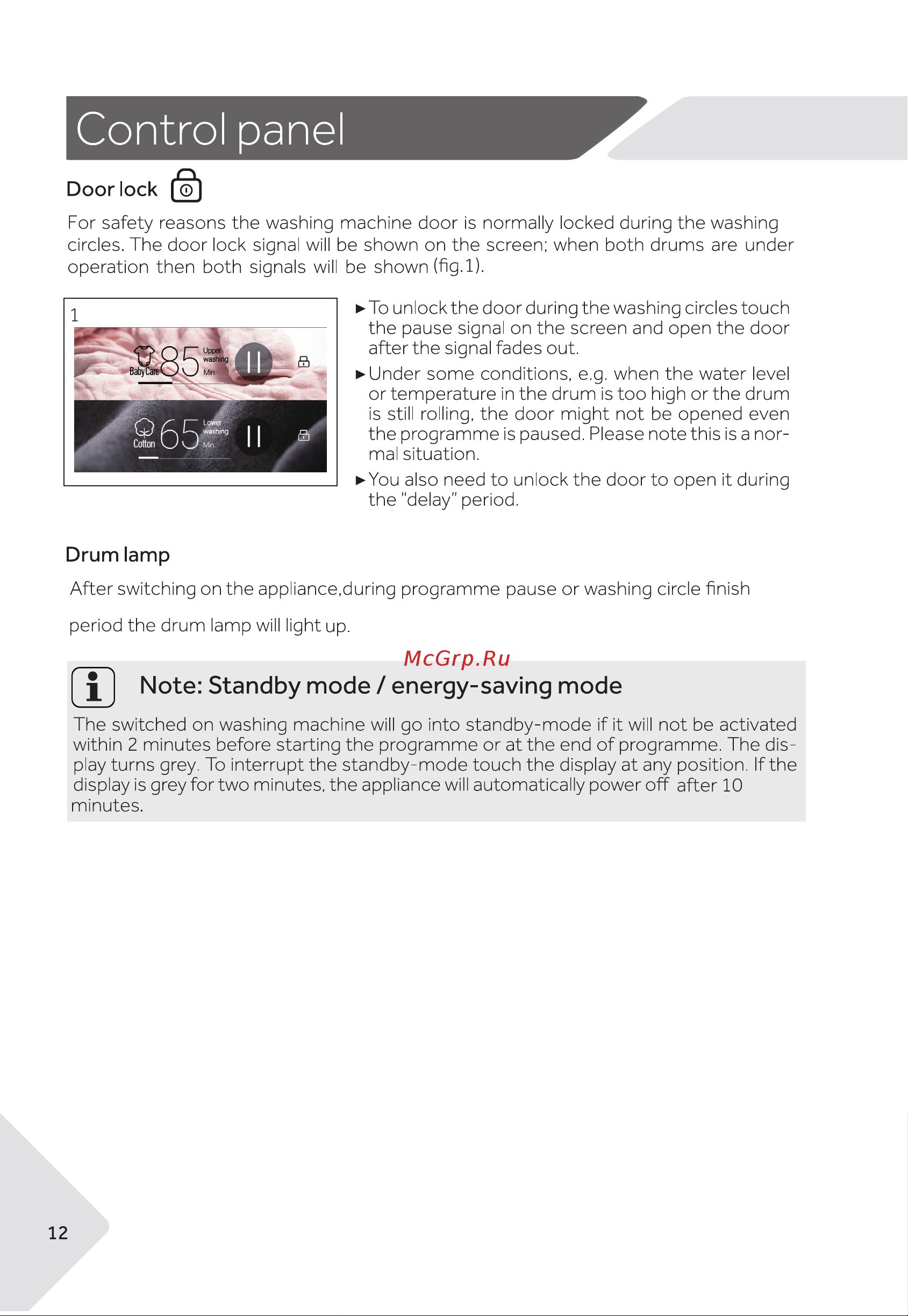

Control panel Door lock For safety reasons the washing machine door is normally locked during the washing circles The door lock signal will be shown on the screen when both drums are under operation then both signals will be shown fig l To unlock the door during the washing circles touch the pause signal on the screen and open the door after the signal fades out Under some conditions e g when the water level or temperature in the drum is too high or the drum is still rolling the door might not be opened even the programme is paused Please note this is a nor mal situation You also need to unlock the door to open It during the delay period Drum lamp After switching on the appliance during programme pause or washing circle finish period the drum lamp will light up J Note Standby mode I energy saving mode ___ X The switched on washing machine will go into standby mode if it will not be activated within 2 minutes before starting the programme or at the end of programme The dis play turns grey To interrupt the standby mode touch the display at any position If the display is grey for two minutes the appliance will automatically power off after 10 minutes 12
