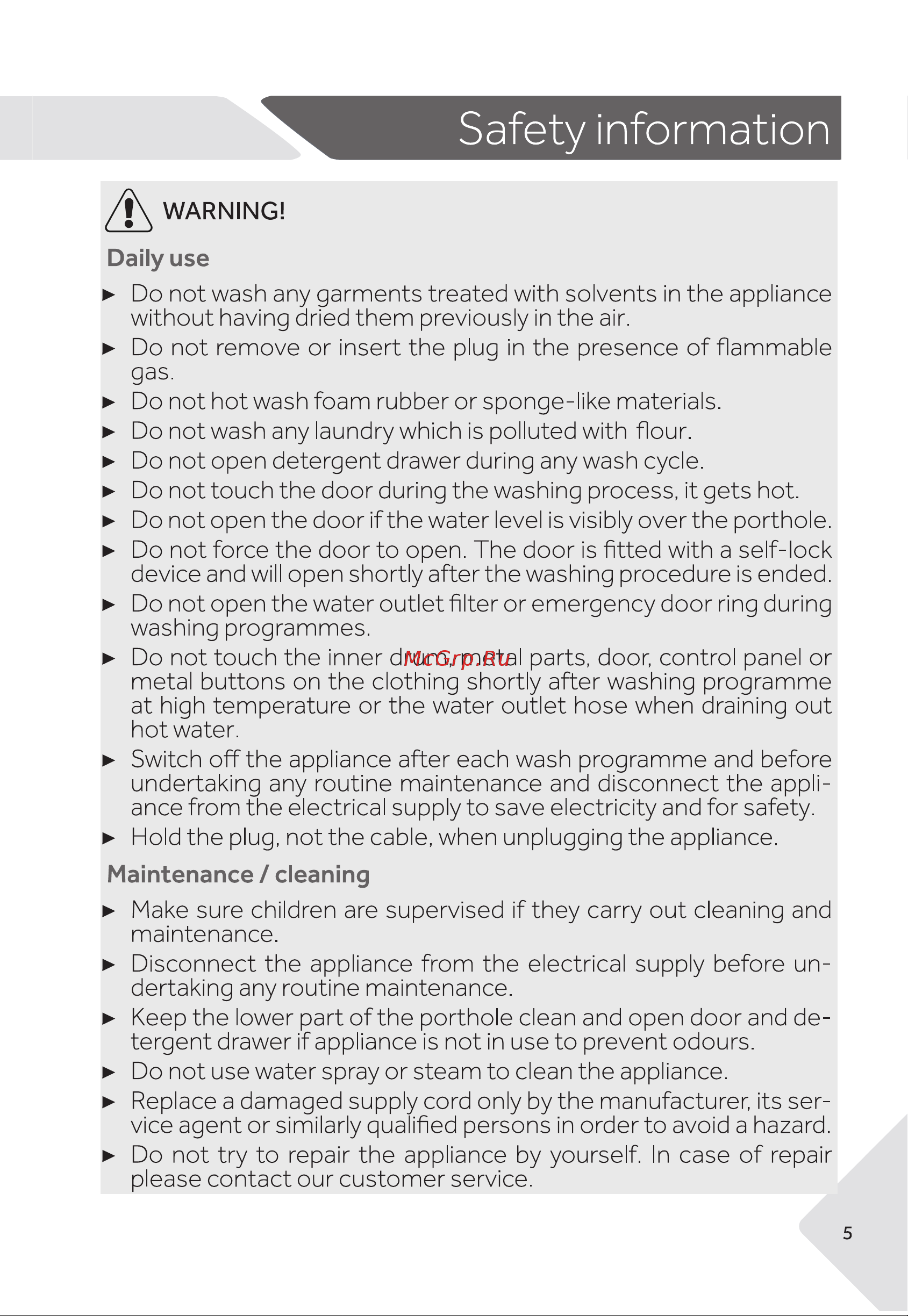

Safety information j WARNING Daily use Do not wash any garments treated with solvents in the appliance without having dried them previously in the air Do not remove or insert the plug in the presence of flammable gas Do not hot wash foam rubber or sponge like materials Do not wash any laundry which is polluted with flour Do not open detergent drawer during any wash cycle Do not touch the door during the washing process it gets hot Do not open the door if the water level is visibly over the porthole Do not force the door to open The door is fitted with a self lock device and will open shortly after the washing procedure is ended Do not open the water outlet filter or emergency door ring during washing programmes Do not touch the inner drum metal parts door control panel or metal buttons on the clothing shortly after washing programme at high temperature or the water outlet hose when draining out hot water Switch off the appliance after each wash programme and before undertaking any routine maintenance and disconnect the appli ance from the electrical supply to save electricity and for safety Hold the plug notthe cable when unplugging the appliance Maintenance I cleaning Make sure children are supervised if they carry out cleaning and maintenance Disconnect the appliance from the electrical supply before un dertaking any routine maintenance Keep the lower part of the porthole clean and open door and de tergent drawer if appliance is not in use to prevent odours Do not use water spray or steam to clean the appliance Replace a damaged supply cord only by the manufacturer its ser vice agent or similarly qualified persons in order to avoid a hazard Do not try to repair the appliance by yourself In case of repair please contact our customer service 5
