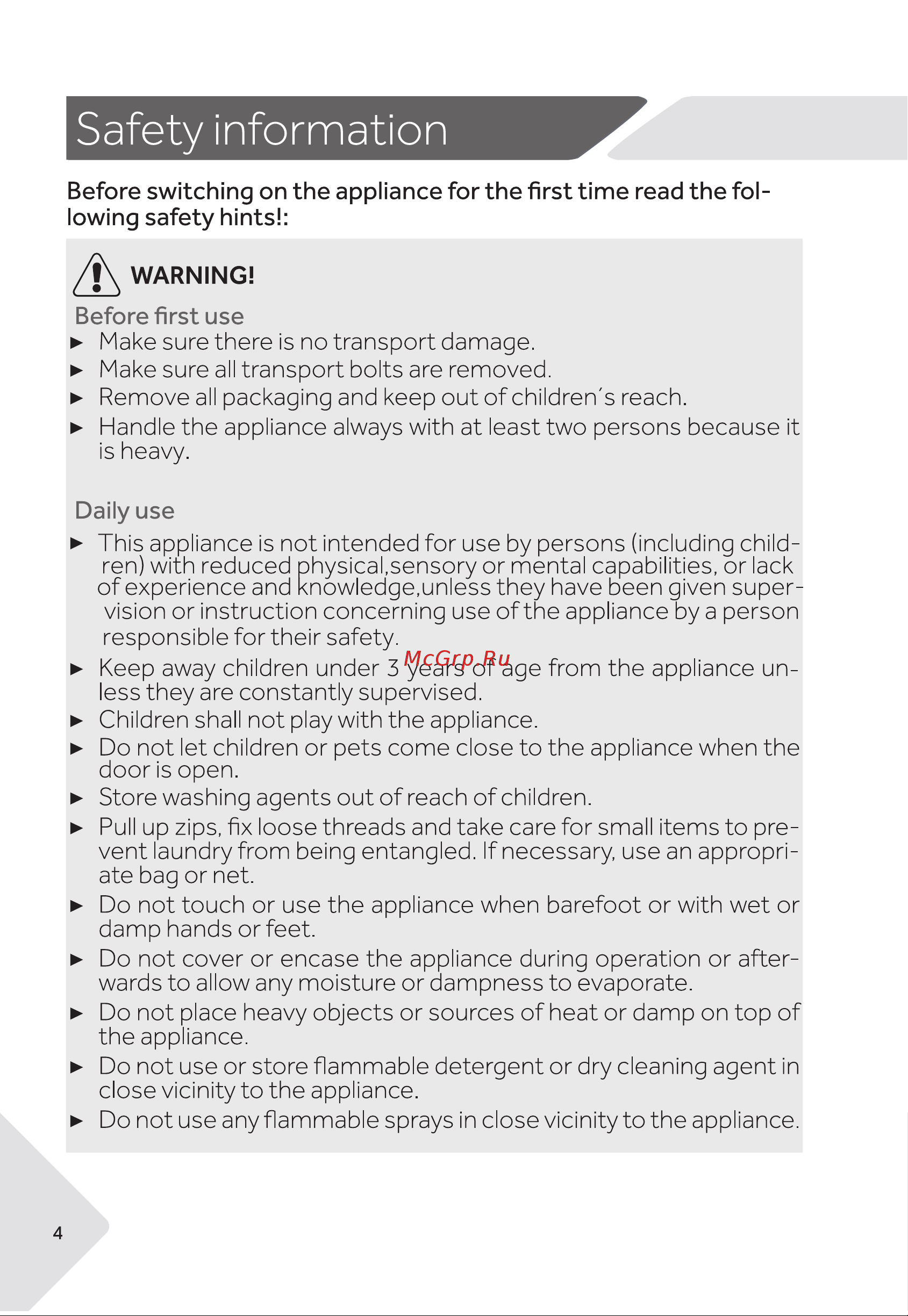

Safety information Before switching on the appliance for the first time read the fol lowing safety hints t WARNING Before first use Make sure there is no transport damage Make sure all transport bolts are removed Remove all packaging and keep out of children s reach Handle the appliance always with at least two persons because it is heavy Daily use This appliance is not intended for use by persons including child ren with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given super vision or instruction concerning use of the appliance by a person responsible for their safety Keep away children under 3 years of age from the appliance un less they are constantly supervised Children shall not play with the appliance Do not let children or pets come close to the appliance when the door is open Store washing agents out of reach of children Pull up zips fix loose threads and take care for small items to pre vent laundry from being entangled If necessary use an appropri ate bag or net Do not touch or use the appliance when barefoot or with wet or damp hands or feet Do not cover or encase the appliance during operation or after wards to allow any moisture or dampness to evaporate Do not place heavy objects or sources of heat or damp on top of the appliance Do not use or store flammable detergent or dry cleaning agent in close vicinity to the appliance Do not use any flammable sprays in close vicinity to the appliance 4
