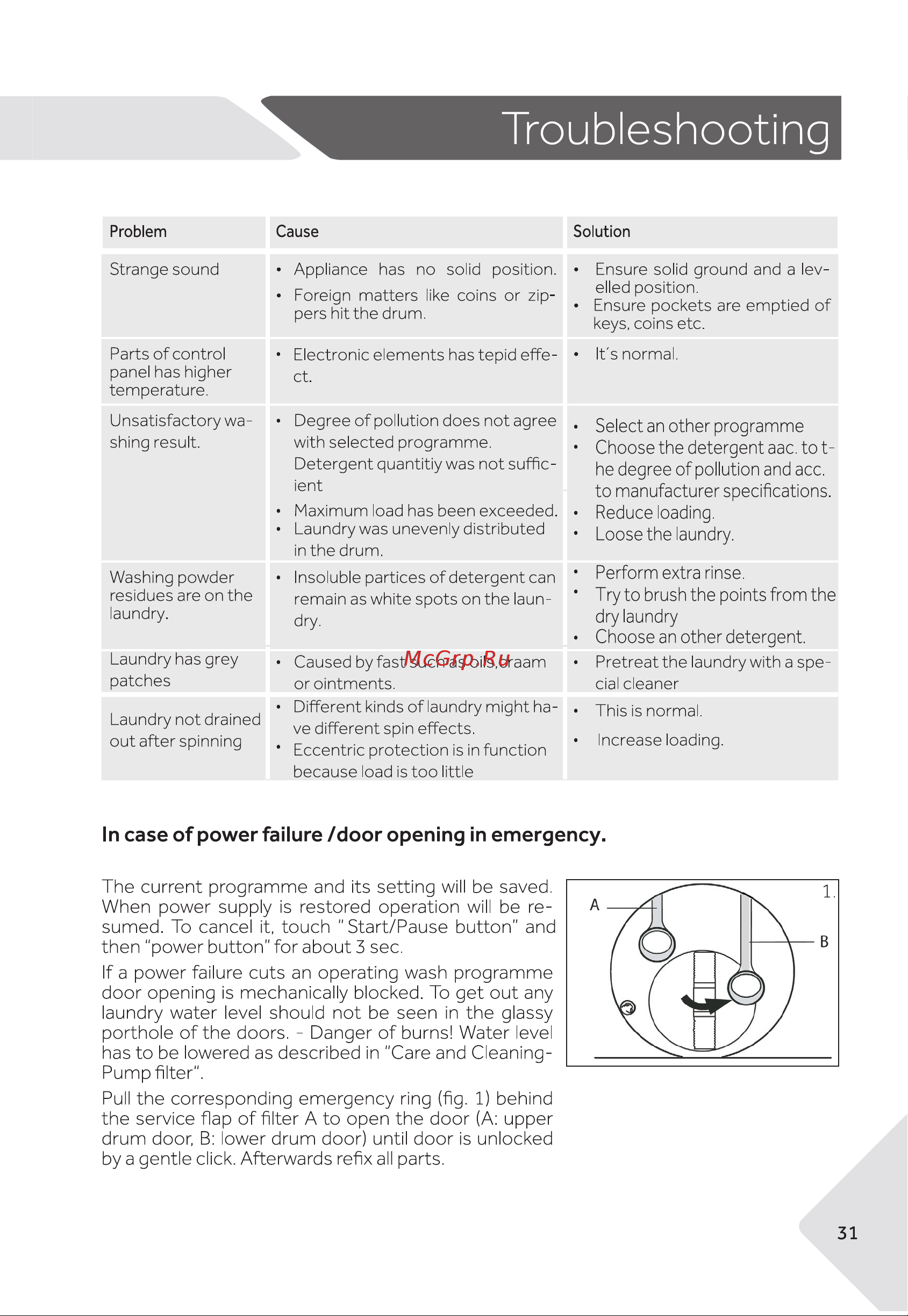

Troubleshooting Problem Cause Solution Strange sound Appliance has no solid position Ensure solid ground and a lev elled position Ensure pockets are emptied of keys coins etc Foreign matters like coins or zip pers hit the drum Parts of control panel has higher temperature Electronic elements has tepid effe ct It s normal Unsatisfactory wa shing result Degree of pollution does not agree with selected programme Detergent quantitiy was not suffic ient Select an other programme Choose the detergent aac to the degree of pollution and acc to manufacturer specifications Reduce loading Loose the laundry Maximum load has been exceeded Laundry was unevenly distributed in the drum Washing powder residues are on the laundry Insoluble partices of detergent can remain as white spots on the laun dry Perform extra rinse Try to brush the points from the dry laundry Choose an other detergent Laundry has grey patches Caused by fast such as oils craam or ointments Different kinds of laundry might ha ve different spin effects Eccentric protection is in function because load is too little Pretreat the laundry with a spe cial cleaner Laundry not drained out after spinning This is normal Increase loading In case of power failure door opening in emergency The current programme and its setting will be saved When power supply is restored operation will be re sumed To cancel it touch Start Pause button and then power button for about 3 sec If a power failure cuts an operating wash programme door opening is mechanically blocked To get out any laundry water level should not be seen in the glassy porthole of the doors Danger of burns Water level has to be lowered as described in Care and CleaningPump filter Pull the corresponding emergency ring fig 1 behind the service flap of filter A to open the door A upper drum door B lower drum door until door is unlocked by a gentle click Afterwards refix all parts 31
