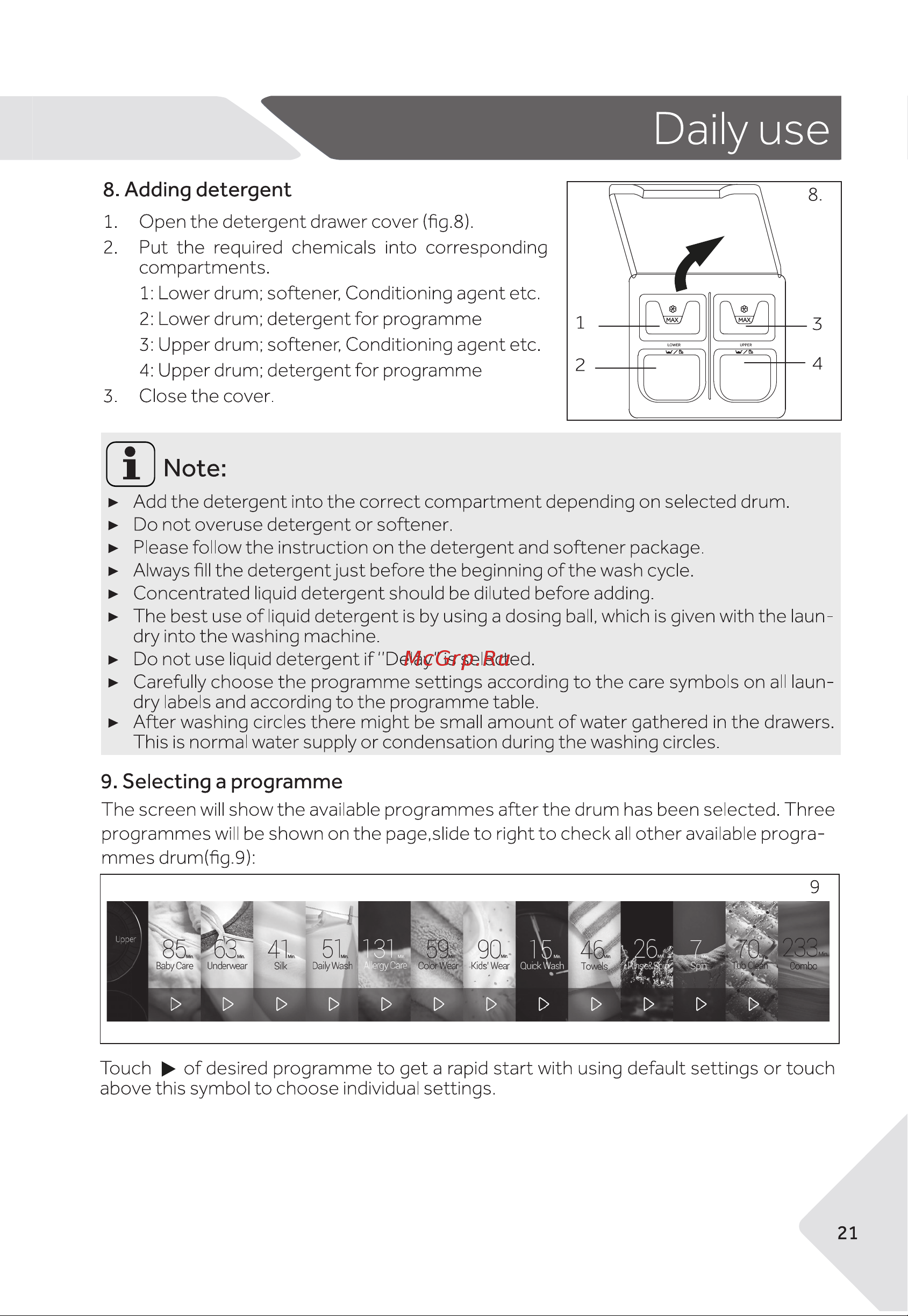

Daily use 8 Adding detergent 1 Open the detergent drawer cover fig 8 2 Put the required chemicals into corresponding compartments 1 Lower drum softener Conditioning agent etc 2 Lower drum detergent for programme 3 Upper drum softener Conditioning agent etc 4 Upper drum detergentfor programme 3 Close the cover 1 Note ________ Add the detergent into the correct compartment depending on selected drum Do not overuse detergent or softener Please follow the instruction on the detergent and softener package Always fill the detergent just before the beginning of the wash cycle Concentrated liquid detergent should be diluted before adding The best use of liquid detergent is by using a dosing ball which is given with the laun dry into the washing machine Do not use liquid detergent if Delay is selected Carefully choose the programme settings according to the care symbols on all laun dry labels and according to the programme table After washing circles there might be small amount of water gathered In the drawers This is normal water supply or condensation during the washing circles 9 Selecting a programme The screen will show the available programmes after the drum has been selected Three programmes will be shown on the page slide to right to check all other available progra mmes drum fig 9 9 Touch of desired programme to get a rapid start with using default settings or touch above this symbol to choose individual settings 21
