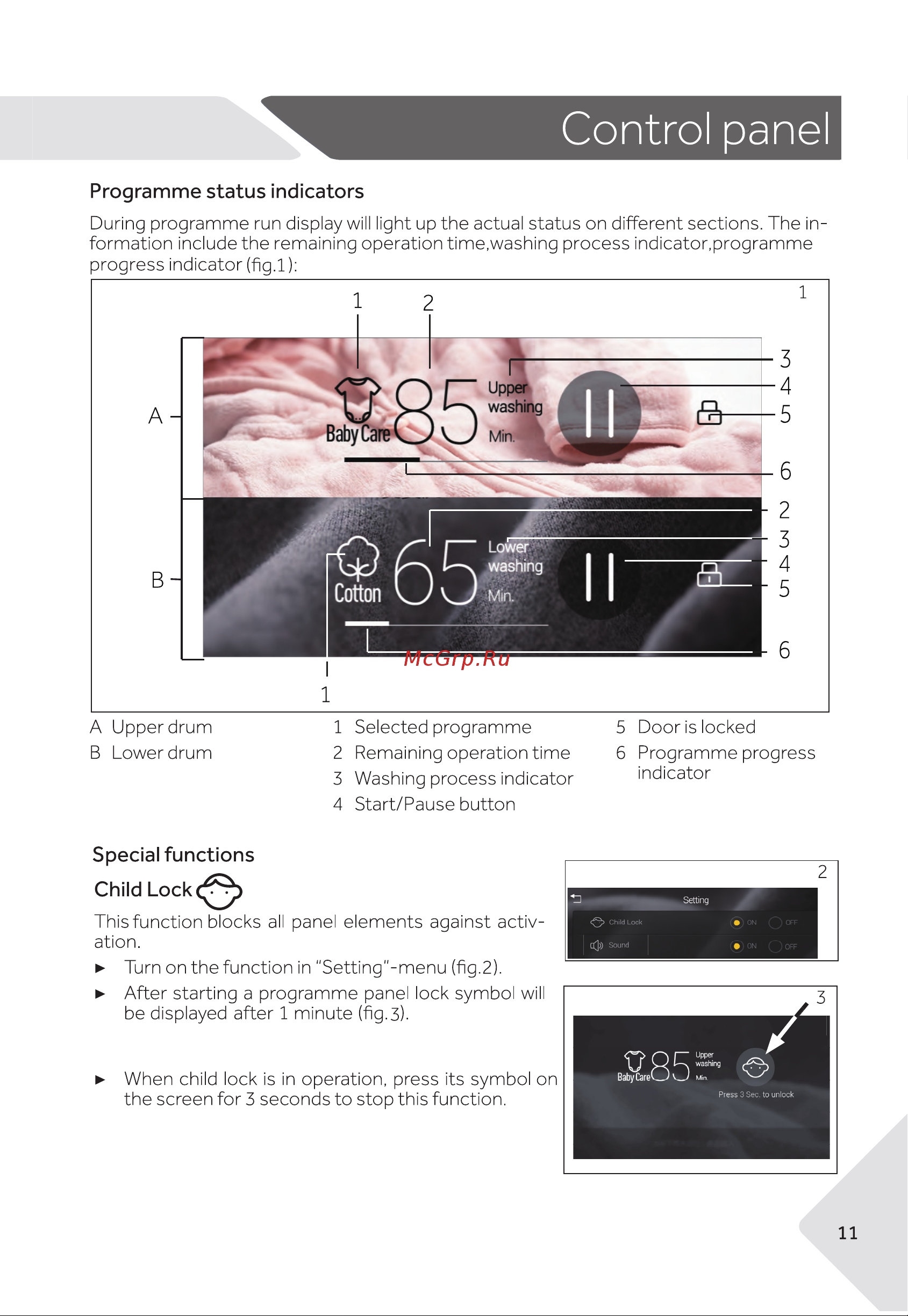

Control panel Programme status indicators During programme run display will light up the actual status on different sections The in formation include the remaining operation time washing process indicator programme progress indicator fig l I 1 A Upper drum B Lower drum 1 Selected programme 2 Remaining operation time 3 Washing process indicator 4 Start Pause button 5 Door is locked 6 Programme progress indicator Special functions Child Lock This function blocks all panel elements against activ ation Turn on the function in Setting menu fig 2 After starting a programme panel lock symbol will be displayed after 1 minute fig 3 When child lock is in operation press its symbol on the screen for 3 seconds to stop this function 11
