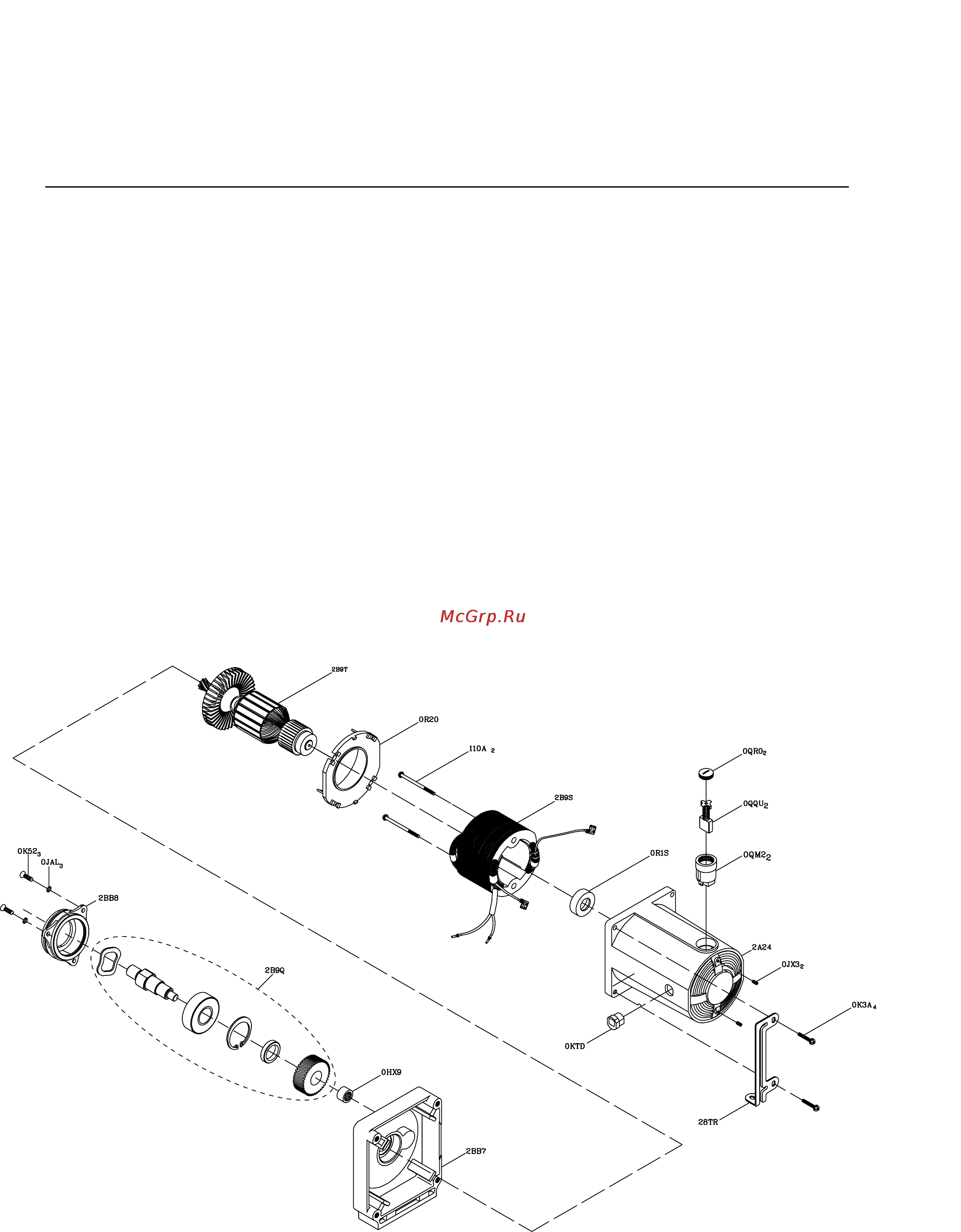

10” (250mm) JOBSITE TABLE SAW MODEL NO. C10RD

PARTS LIST FOR MOTOR

Parts NO. I.D. Description Size QTY

326905 0HX9 NEEDLE BEARING HK-1010 1

326906 0JAL EXT.TOOTH LOCK WASHER φ4 3

326907 0JX3 HEX. SOC. SET SCREW M5*0.8-8 2

326908 0K3A CR.RE. PAN HD. SCREW & WASHER M5*0.8-30 4

326909 0K52 CR. RE. COUNT HD. SCREW 3

326427 0KTD STRAIN RELIEF 1

326910 0QM2 BRUSH HOLDER ASS’Y Φ27*26.5 2

326458 0QQU CARBON BRUSH ASS’Y 2

326243 0QR0 BRUSH COVER 2

326911 0R1S BEARING BUSHING 1

326912 0R20 BAFFLE 1

326913 110A CR.-RE.PAN HD.TAPPING SCREW & WASHER M5?2-55 2

326914 28TR RETAINING CLIP 1

326915 2A24 MOTOR HOUSING 1

326916 2B9Q CUTTER SHAFT ASS’Y 1

326917 2B9S FIELD ASS’Y 1

326918 2B9T ARMATURE ASS’Y 1

326919 2BB7 BRACKET 1

326920 2BB8 BEARING SEAT 1
