17

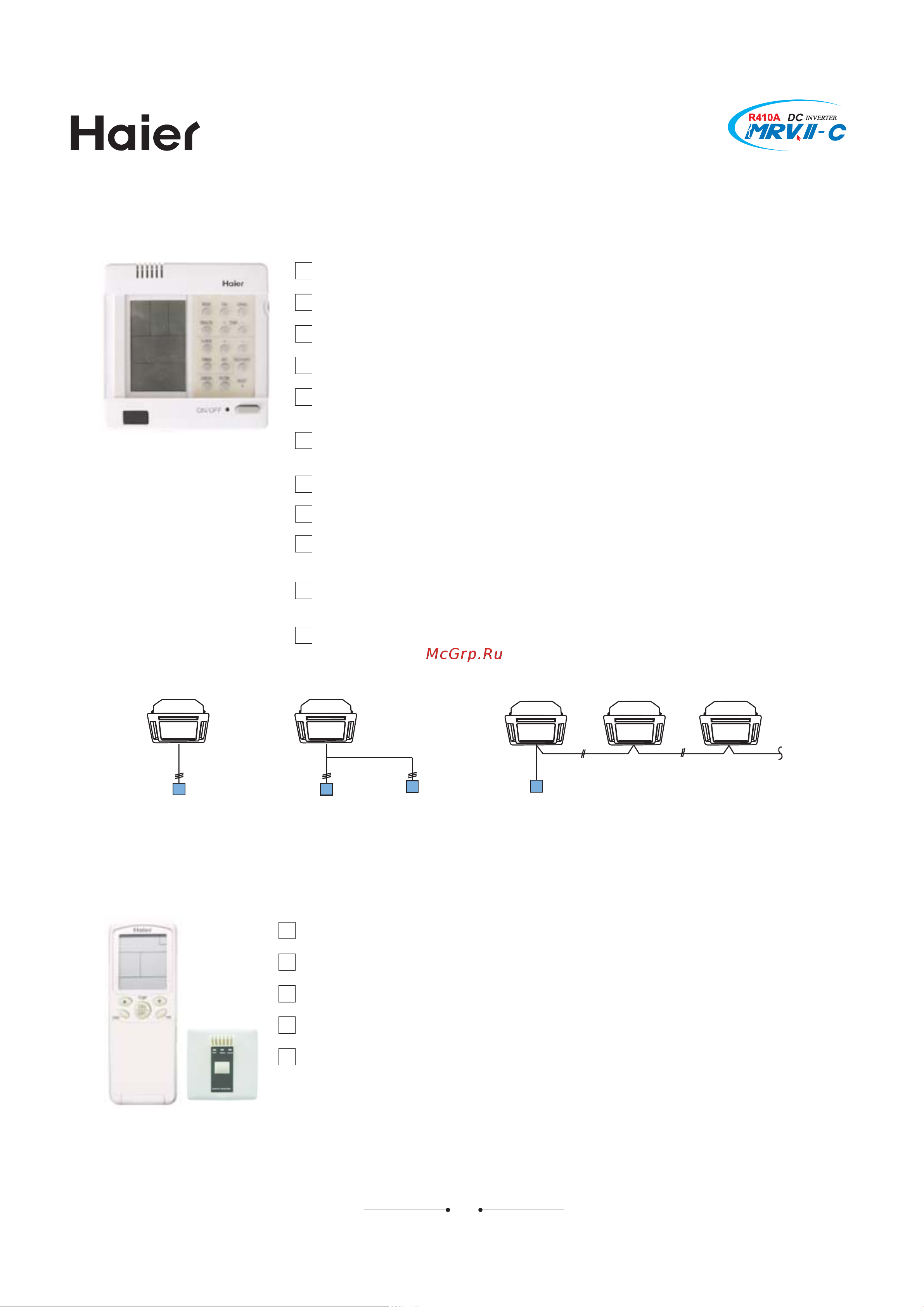

6.11 Control system
a. Individual control system
Wired controller YR-E12
Used to set the MODE, FAN, SWING, HEALTH, TEMP., TIMER etc.
Large LCD is easy to read the data; set the temp. at 1
0
C.
24-hour timer function: to set the schedule in a whole day
Enable to set the HRV (heat reclaimed ventilation) mode
Designed to check the system failure automatically by pressing CHECK
button. Also the failure code will display on LCD
When the filter needs to be cleaned and indoor will send signal to the
controller, FILTER icon will display on LCD.
Can display the indoor central address on LCD
Can query the malfunction history by pressing CHECK button
Can change the controller types between master and slave one by
adjusting the jumper state
Can realize dual controllers to control one unit, or one controller to control
multiple indoor units
Equipped with the indoor ambient temp. sensor in the controller, which
makes the indoor temp. more comfortable
Infrared remote controller YR-H71, YR-H65
group control method
controller
master controller
slave controller
Used to set the MODE, FAN, SWING, HEALTH, TEMP., TIMER etc.
Large LCD is easy to read the data; set the temp. at 1
0
C.
24-hour timer function: to set the schedule in a whole day
Can be combined with the individual remote receiver.
Electric heating button can realize the electric heating function if the unit is
with this function.
remote receiver RE-01
